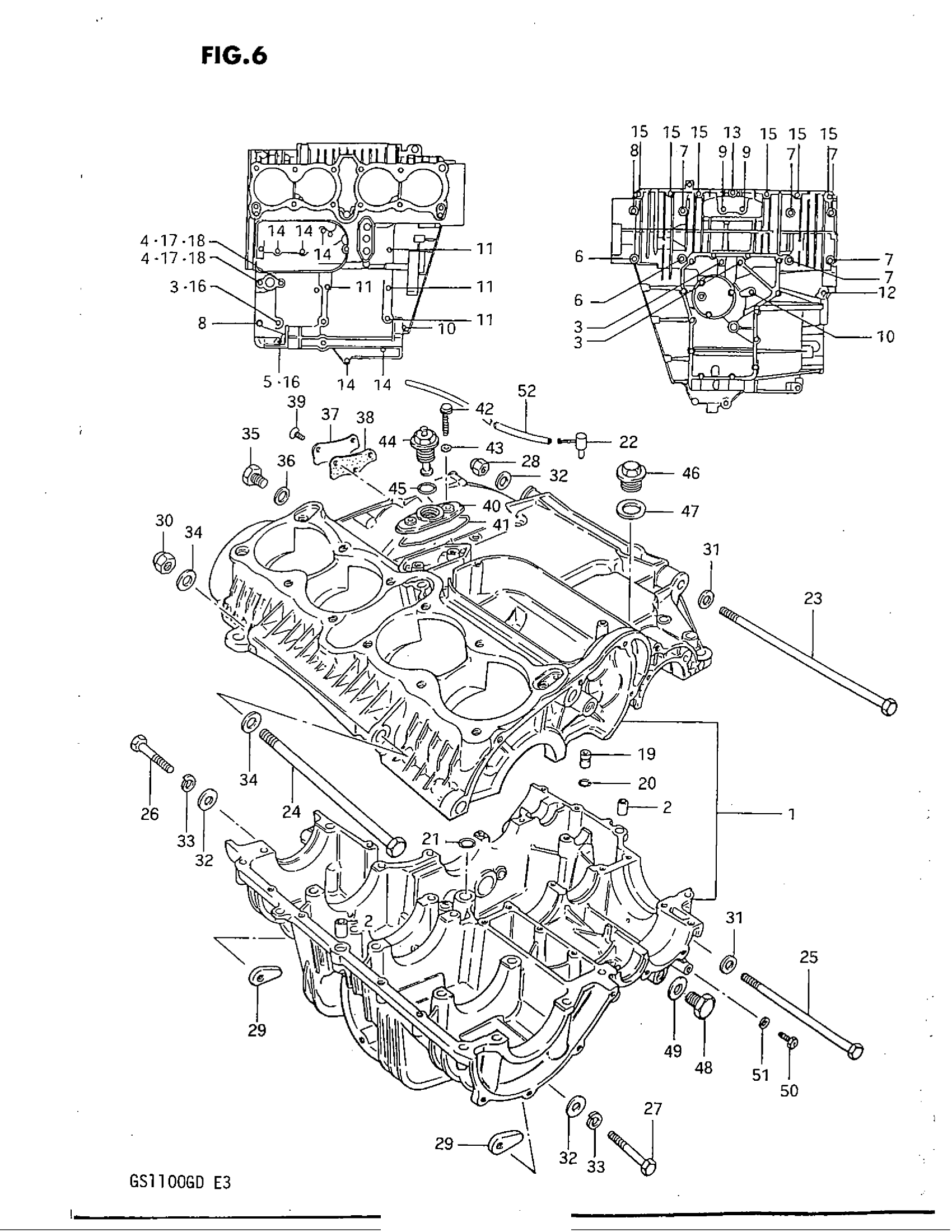

Suzuki GS1100G (1983) CRANKCASE (MODEL D) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 22 This part replaces 11300-49860.

11300-49861

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT (8X125) This part replaces 09103-08094.

09103-08182

$5.72

4

BOLT (8X110)

09103-08092

Unavailable

5

BOLT (8X105) This part replaces 09103-08093.

09103-08179

Unavailable

6

BOLT (8X100) This part replaces 09103-08061.

09103-08230

Unavailable

7

BOLT This part replaces 01517-08905.

01550-0890B

$5.37

8

BOLT This part replaces 01517-08655.

01550-0865A

$3.51

9

BOLT This part replaces 01517-08605.

01550-0860A

$4.17

10

BOLT This part replaces 01517-06905.

01550-0690B

Unavailable

11

BOLT This part replaces 01517-06755.

01550-0675A

Unavailable

12

BOLT This part replaces 01517-06555.

01550-0655B

$3.30

13

BOLT This part replaces 01517-06505.

01550-0650A

$2.85

14

BOLT This part replaces 01517-06455.

01550-0645A

$2.41

15

BOLT This part replaces 01517-06355.

01550-0635A

$2.32

16

NUT This part replaces 08316-16085.

08316-1008B

$2.66

17

NUT This part replaces 08313-11088.

08313-10087

$2.28

18

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

19

NOZZLE, OIL GALLERY

09364-05005

$3.73

20

O RING

09280-03003

$1.91

21

O RING, OIL GALLERY

09280-13001

$2.72

22

PLUG, BLEATHER

24821-45100

$9.00

23

NO DESCRIPTION AVAILABLE This part replaces 09100-10144.

09100-10074-XC0

Unavailable

24

SHAFT,RR SWNG P This part replaces 09100-12022.

61211-39002

$25.52

25

BOLT (10x165) This part replaces 09100-10137.

09100-10078

$12.70

26

BOLT This part replaces 01107-10605.

01500-1060A

$4.41

27

BOLT This part replaces 01107-10505.

01500-1050A

$3.78

28

NUT

09159-10028

Unavailable

29

NUT

09159-10020

$5.18

30

NUT This part replaces 08319-21125.

08319-2112B

$5.18

31

WASHER This part replaces 09160-10054.

09160-10005

$1.87

32

WASHER, KNUCKLE END This part replaces 08322-11105.

08322-0110A

$1.84

33

LOCK WASHER This part replaces 08321-21105.

08321-0110A

$1.84

34

WASHER

08322-11125

Unavailable

35

PLUG This part replaces 09247-14012.

09247-14026

$3.76

36

GASKET

09168-14004

$1.83

37

CAP, OIL GALLERY

11394-45000

Unavailable

38

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

Unavailable

39

SCREW This part replaces 02122-06168.

02122-06167

$1.49

40

HOUSING, OIL PRESSURE SWITCH This part replaces 16445-45010.

16445-45000

Unavailable

41

O RING

16448-45000

$8.89

42

BOLT This part replaces 01517-06255.

01550-0625A

$1.97

43

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

44

SWITCH ASSY,OIL This part replaces 37820-45060.

37820-45061

$31.65

45

O RING

09280-19001

$1.49

46

PLUG This part replaces 09247-20002.

09248-20003

$5.80

47

GASKET 20.1X27X This part replaces 09168-20004.

09168-20003

$2.97

48

PLUG, OIL DRAIN This part replaces 09247-14019.

09247-14036

$6.17

49

GASKET

09168-14004

$1.83

50

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

51

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

52

HOSE(2X5X600) This part replaces 09343-02009.

09352-20504-600

$6.70
