1983 Suzuki GS1100G Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1983 Suzuki GS1100G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

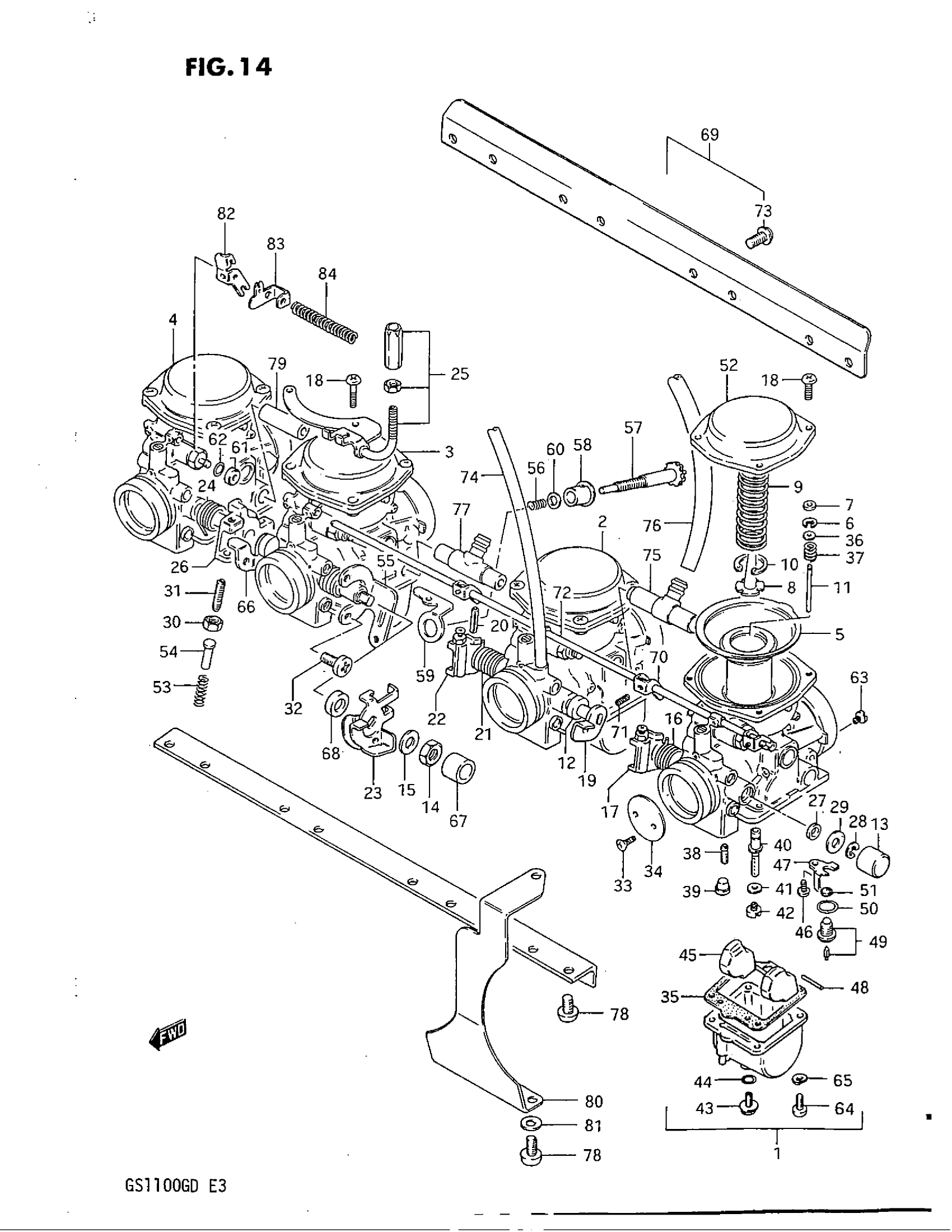

1983 Suzuki GS1100G Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR, NO.1 | LH

13201-49400

1
Out of stock

2

CARBURETOR, NO.2 | ML

13202-49400

1
Out of stock

3

CARBURETOR, NO.3 | MR

13203-49400

1
Out of stock

4

CARBURETOR, NO.4 | RH; Includes Item(s) 5 - 68

13204-49400

1
Out of stock

5

DIAPHRAGM ASSY This part replaces 13500-49200.

13500-38310

4
Out of stock

6

E RING

13394-31210

4
Out of stock

7

RING

13387-44030

4
Out of stock

8

GUIDE HOLDER

13389-44030

4
Out of stock

9

SPRING

13503-44080

4
Out of stock

10

CLIP

13581-44030

4
Out of stock

11

NEEDLE, JET (5D58)

13383-49200

4
Out of stock

12

GASKET | ML,MR

13557-49200

2
Out of stock

13

CAP | RH,LH

13578-47070

2
Out of stock

14

1

$1.93

In stock

15

WASHER | MR

13606-47070

1
Out of stock

16

SPRING | LH

13573-47070

1
Out of stock

17

SHAFT | LH

13550-49200

1
Out of stock

18

SCREW This part replaces 02112-05168.

02112-05167

16
Out of stock

19

SHAFT | ML

13550-49210

1
Out of stock

20

PIN | LH,ML,RH

13563-47070

3
Out of stock

21

SPRING | ML

13573-45110

1
Out of stock

22

LEVER | ML

13553-47070

1
Out of stock

23

LEVER | MR

13555-47070

1
Out of stock

24

SPRING | MR,RH

13573-47080

2
Out of stock

25

BRACKET | MR

13621-49220

1
Out of stock

26

SHAFT | RH

13550-49200

1
Out of stock

27

SEAL This part replaces 13651-51010.

13651-51011

8
Out of stock

28

E RING | LH,RH

13617-44080

2
Out of stock

29

GASKET | LH,RH

13557-47070

2
Out of stock

30

NUT | LH,ML,RH

13607-47070

3
Out of stock

31

SCREW | LH,ML,RH

13605-47080

3
Out of stock

32

SCREW, THROTTLE | MR This part replaces 13605-45420.

02112-0510A

2
Out of stock

33

SCREW

13604-44080

8
Out of stock

34

VALVE, THROTTLE (140)

13551-49150

4
Out of stock

35

GASKET,FLOAT CH This part replaces 13251-44080.

13251-44081-H17

4
Out of stock

36

WASHER

13382-44030

4

$3.81

In stock

37

SPRING

13388-44030

4

$9.17

In stock

38

JET, PILOT (40) This part replaces 09492-40008.

09492-40007

4
Out of stock

39

PLUG

13357-44080

4
Out of stock

40

JET, NEEDLE (X-3)

09494-00358

4
Out of stock

41

4

$2.92

In stock

42

JET, MAIN (115)

09491-23011

4
Out of stock

43

SCREW

13247-44080

4

$8.18

In stock

44

O RING

13246-44080

4

$2.92

In stock

45

FLOAT

13250-44080

4
Out of stock

46

4

$1.67

In stock

47

PLATE

13373-11400

4

$7.22

In stock

48

PIN

13254-92311

4

$2.41

In stock

50

4

$5.97

In stock

51

4

$10.26

In stock

52

COVER, DIAPHRAGM This part replaces 13502-49200.

13502-49250

4
Out of stock

53

SPRING | LH,ML,RH

13268-44010

3
Out of stock

54

PIN | LH,ML,RH

13575-47070

3
Out of stock

55

BRACKET | MR

13627-45110

1
Out of stock

56

SPRING | MR

13271-93011

1
Out of stock

57

ADJUSTER | MR

13267-47070

1
Out of stock

58

BUSH | MR

13276-31210

1
Out of stock

59

BRACKET | MR

13627-44090

1
Out of stock

60

WASHER | MR

13432-47090

1
Out of stock

61

.CAP, STARTER VALVE

13682-31210

4

$4.36

In stock

62

4

$2.01

In stock

63

JET, PILOT AIR (170)

09493-34001

4
Out of stock

64

SCREW This part replaces 02112-05168.

02112-05167

16
Out of stock

65

LOCK WASHER This part replaces 08321-21058.

08321-0105A

16
Out of stock

66

SHAFT | MR

13550-49230

1
Out of stock

67

RING | ML

13574-49200

1
Out of stock

68

RING | MR

13574-45120

1
Out of stock

69

FLANGE ASSY | Includes Item(s) 70 - 84

13210-49410

1
Out of stock

70

LEVER

13422-44080

3
Out of stock

71

SCREW

13605-47070

4
Out of stock

72

SHAFT

13410-49200

1
Out of stock

73

SCREW This part replaces 02142-05128.

02142-05127

8
Out of stock

74

HOSE(4.5X8.5X60 This part replaces 13683-45110.

09355-45001-600

1
Out of stock

75

NIPPLE

13685-49210

2
Out of stock

76

HOSE(6.5X11.5X6 This part replaces 13683-49160.

09355-65001-600

2
Out of stock

77

NIPPLE

13685-49200

1
Out of stock

78

SCREW This part replaces 02112-06168.

02112-06167

8
Out of stock

79

NIPPLE

13685-47070

2
Out of stock

80

COVER

13619-49160

1
Out of stock

81

WASHER

13615-49200

2
Out of stock

82

LEVER

13421-49220

1
Out of stock

83

LEVER

13413-49220

1
Out of stock

84

SPRING

13437-49220

1
Out of stock
