1983 Suzuki GS1100G Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1983 Suzuki GS1100G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

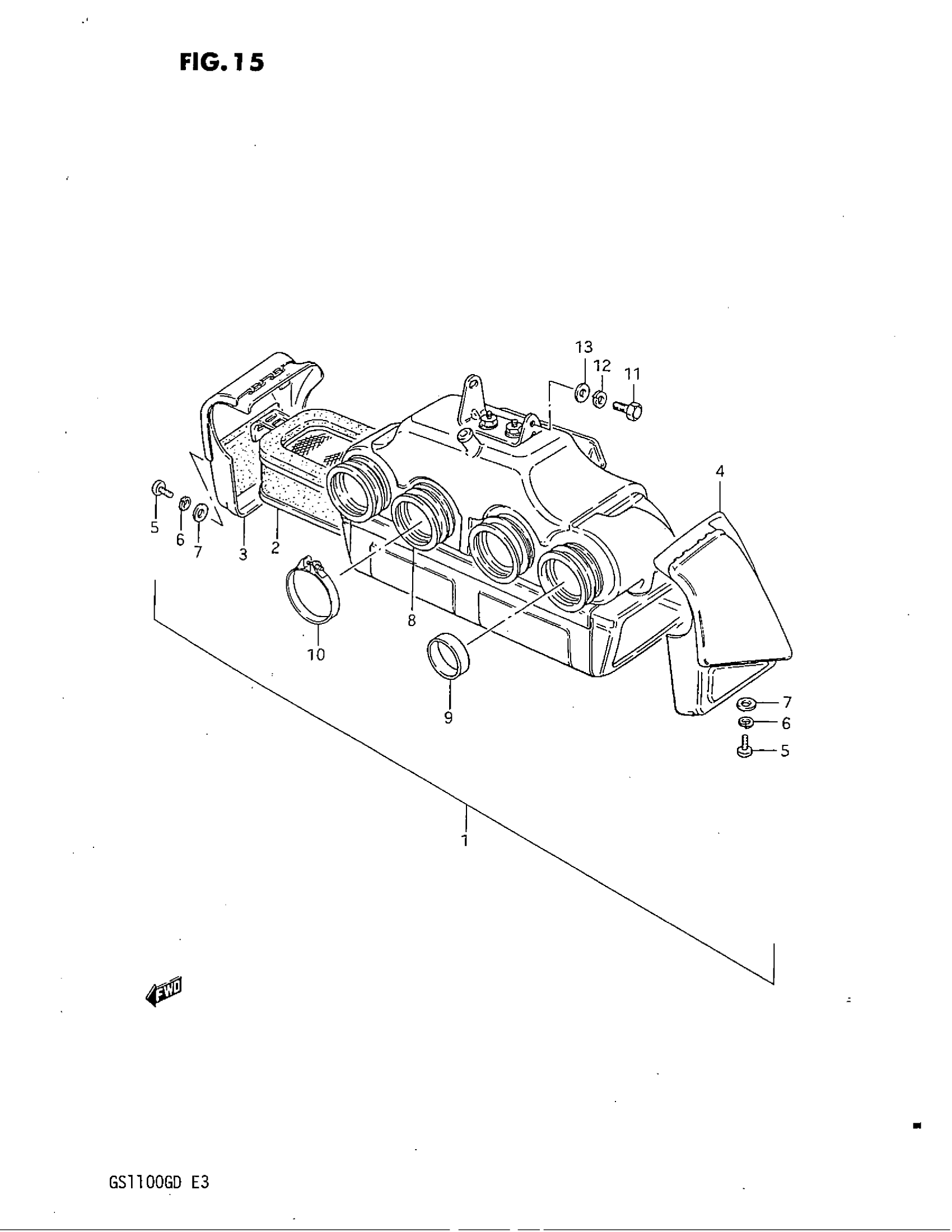

1983 Suzuki GS1100G Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 10 This part replaces 13700-45120.

13700-45122

1
Out of stock

2

FILTER

13780-49070

1
Out of stock

3

COVER, RH

13740-45100

1
Out of stock

4

COVER, LH

13750-45100

1
Out of stock

5

SCREW This part replaces 02112-05128.

02112-05127

3
Out of stock

6

LOCK WASHER This part replaces 08321-21058.

08321-0105A

3
Out of stock

7

3

$2.33

In stock

8

HOSE

13881-49080

4
Out of stock

9

RING

13885-33200

4
Out of stock

10

4

$6.47

In stock

11

2

$2.10

In stock

12

2

$2.28

In stock

13

.WASHER This part replaces 08322-11068.

08322-0106B

2
Out of stock
