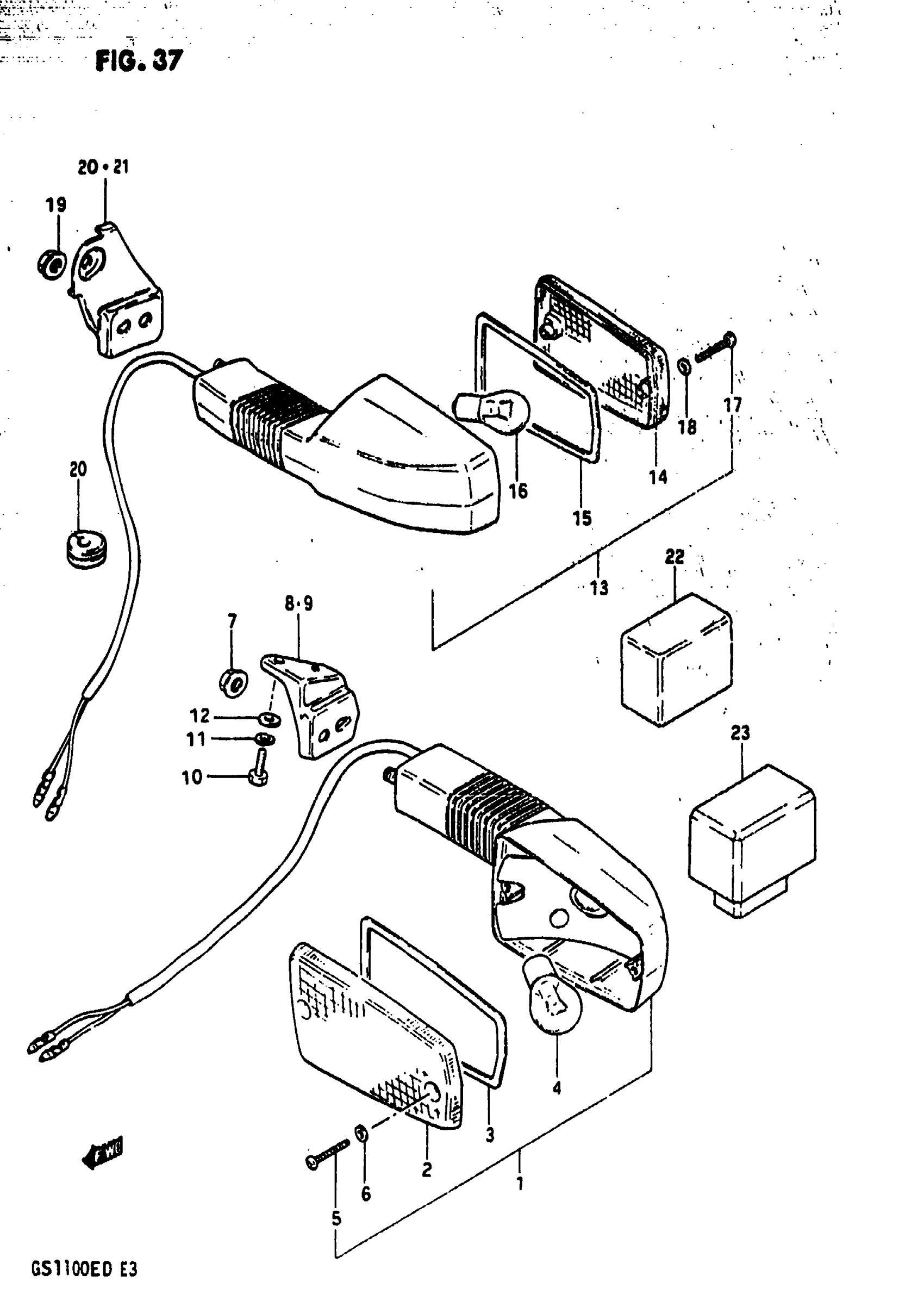

Suzuki GS1100E (1983) TURN SIGNAL LAMP (GS1100ESD) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | Includes Item(s) 2 - 6 This part replaces 35601-49510.

35601-49511

Unavailable

2

LENS

35612-49510

$12.59

3

GASKET

35613-43410

Unavailable

4

BULB (12V,32/3CP)

09471-12033

Unavailable

5

SCREW This part replaces 03211-04208.

03211-04207

$1.49

6

GASKET

35627-43010

$2.28

7

NUT This part replaces 08316-26088.

08316-20087

$2.77

8

BRACKET, FRONT RH

35671-31300

Unavailable

9

BRACKET, FRONT LH

35681-31300

Unavailable

10

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

WASHER This part replaces 08322-11088.

08322-01087

$2.13

13

LAMP ASSY, REAR TURN SIGNAL | Includes Item(s) 14 - 18 This part replaces 35601-43430.

35603-31331

Unavailable

14

LENS,FR TURNS,G This part replaces 35612-43410.

35612-00A80

Unavailable

15

GASKET

35613-43410

Unavailable

16

BULB (12V,23W)

09471-12006

$3.98

17

SCREW This part replaces 03211-04208.

03211-04207

$1.49

18

GASKET

35627-43010

$2.28

19

NUT This part replaces 08316-26088.

08316-20087

$2.77

20

BRACKET, REAR RH

35621-49500

Unavailable

21

BRACKET, REAR LH

35641-49500

Unavailable

22

RELAY, TURN SIGNAL

38610-49231

Unavailable

23

UNIT,TURN SIG C This part replaces 38830-49500.

38830-49X00

Unavailable
