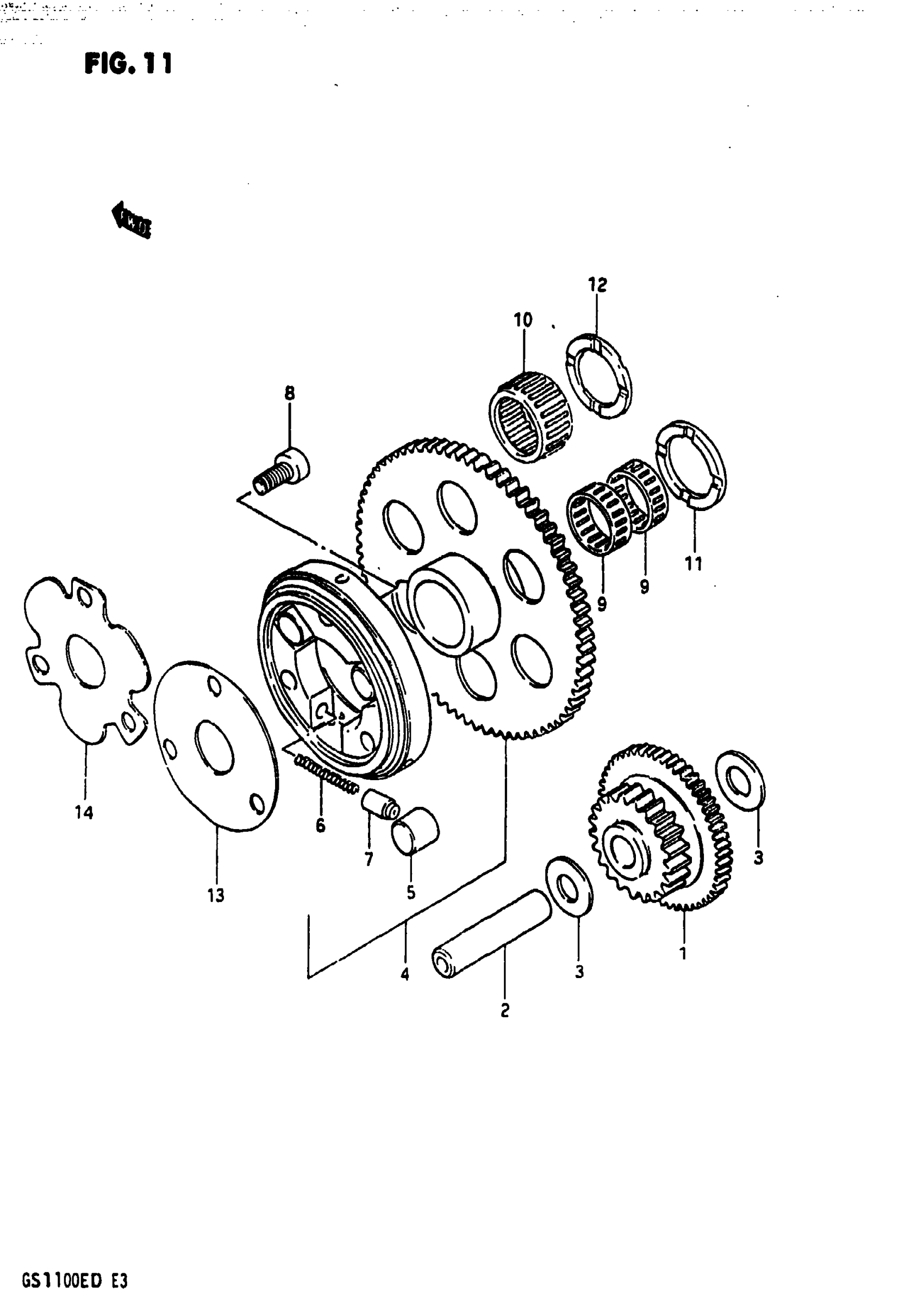

Suzuki GS1100E (1983) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLE (NT:55/18)

12611-49202

Unavailable

2

PIN

09206-13003

$15.70

3

WASHER

09160-13003

$1.99

4

CLUTCH SET, STA | MODEL Z This part replaces 12600-49822.

12600-49826

Unavailable

4

CLUTCH SET, STA | MODEL D; Includes Item(s) 5 - 7 This part replaces 12600-49860.

12600-49865

Unavailable

5

ROLLER

09261-15001

$3.29

6

SPRING

09440-04015

$2.22

7

PIECE, PUSH

12633-31000

$8.77

8

BOLT This part replaces 09106-08006.

07130-0816A

$3.16

9

BEARING | MODEL Z This part replaces 09263-25029.

09263-25008

Unavailable

10

BEARING | MODEL D

09263-29005

Unavailable

11

WASHER,25X38X1 | MODEL Z This part replaces 09160-25019.

09160-25080

$19.37

12

WASHER | MODEL D

09160-29010

Unavailable

13

SHIM, STARTER CLUTCH | MODEL Z

12649-49200

Unavailable

14

SHIM, STARTER CLUTCH | MODEL D This part replaces 12649-49600.

12649-49601

Unavailable
