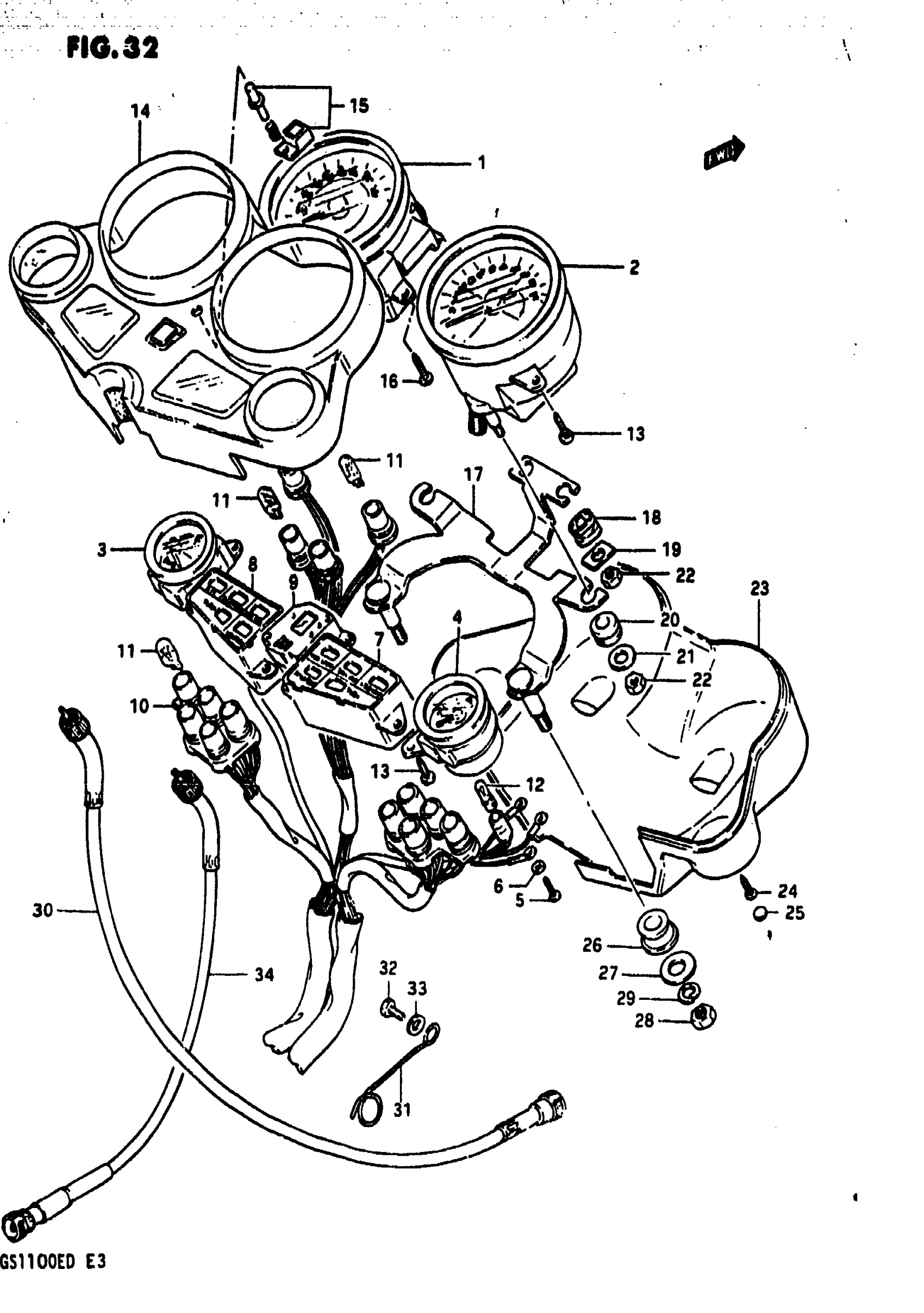

Suzuki GS1100E (1983) SPEEDOMETER - TACHOMETER (GS1100EZ/ED) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL Z This part replaces 34110-49510.

34110-49511

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL D

34110-49511

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 34210-49560.

34210-49500

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 34210-49511.

34210-49500

Unavailable

3

FUELMETER

34320-45720

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 34730-45750.

34730-45752

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 34730-45751.

34730-45752

Unavailable

5

SCREW This part replaces 02112-03068.

02112-0306B

$1.59

6

WASHER This part replaces 08322-21038.

08322-01037

$1.93

7

CASE, PILOT LAMP RH

36330-49500

Unavailable

8

CASE, PILOT LAMP LH

36330-49500

Unavailable

9

INDICATOR, GEAR POSITION

36450-49500

Unavailable

10

SOCKET, PILOT LAMP

34170-49500

Unavailable

11

BULB (12V,3,4W)

09471-12028

$1.99

12

BULB (12V,2W)

09471-12023

Unavailable

13

SCREW This part replaces 03211-04208.

03211-04207

$1.49

14

HOOD ASSY

34150-45720

Unavailable

15

TRIP KNOB SET

34124-45720

Unavailable

16

SCREW This part replaces 03211-04168.

03112-04163

Unavailable

17

BRACKET, METER

34950-45720

Unavailable

18

CUSHION

34995-45720

Unavailable

19

WASHER

34182-45720

Unavailable

20

CUSHION, METER NO.1 This part replaces 34996-45720.

34189-32B00

$5.78

21

WASHER (5.5X16X1.2) This part replaces 34181-30520.

09160-05037

$1.49

22

NUT This part replaces 08310-22058.

08310-00057

$1.84

23

CASE, LOWER

34193-45720

Unavailable

24

SCREW This part replaces 03111-04128.

03111-0412A

$1.93

25

CAP

34198-45720

Unavailable

26

CUSHION

34956-31001

$4.37

27

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

28

NUT This part replaces 08310-12088.

08310-00087

$2.13

29

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

30

CABLE ASSY,SPEE This part replaces 34910-45123.

34910-45124

Unavailable

31

GUIDE, CABLE

34938-45100

$6.57

32

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

33

WASHER This part replaces 08322-21068.

08322-01067

$2.13

34

CABLE ASSY,TACH This part replaces 34940-44111.

34940-05312

$40.40
