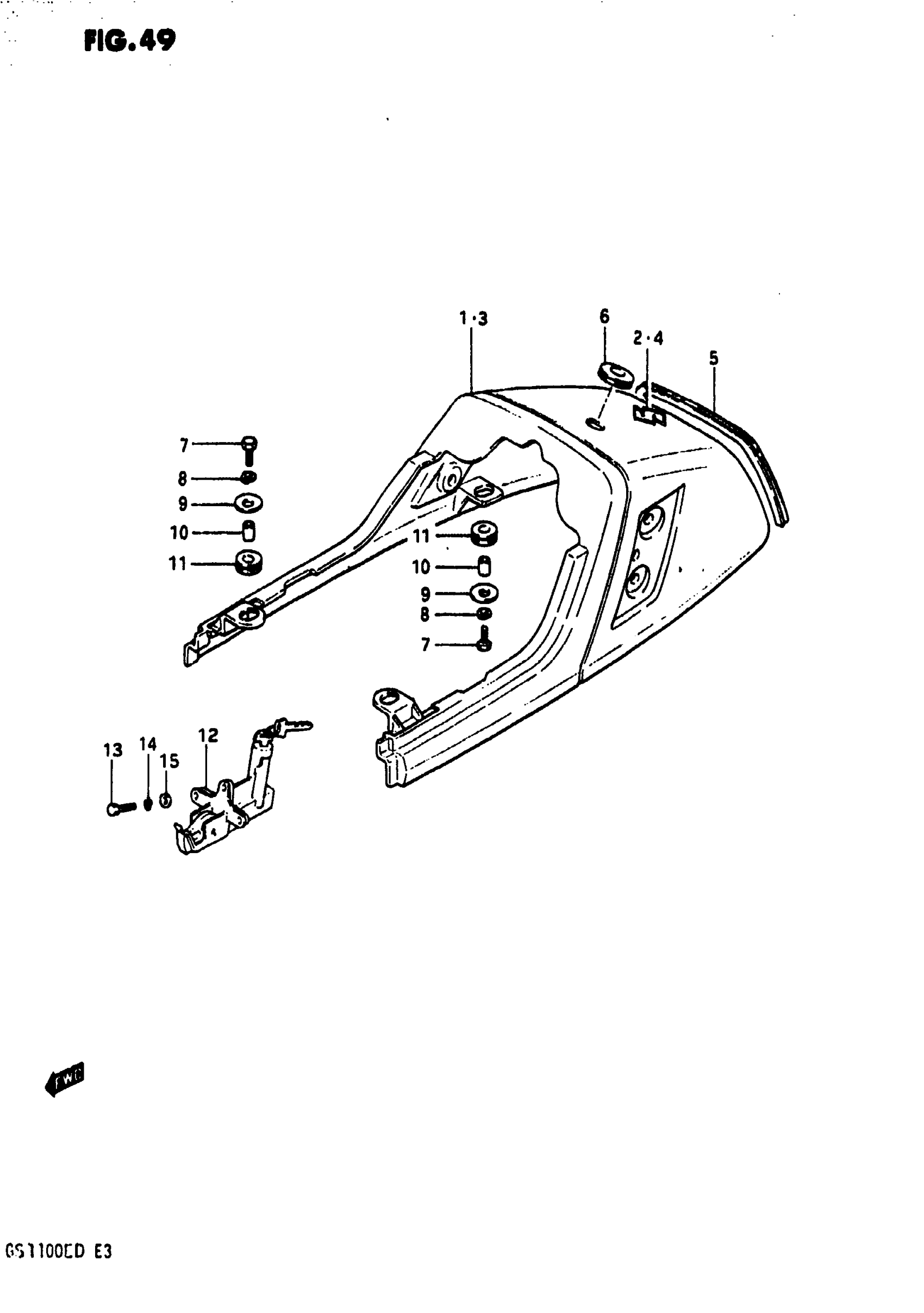

Suzuki GS1100E (1983) SEAT TAIL COVER (MODEL Z) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 45511-49500-14B.

45511-49500

Unavailable

2

EMBLEM

68166-49500-67U

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 45511-49500-10S.

45511-49500

Unavailable

4

EMBLEM

68166-49500-82Z

Unavailable

5

MOULDING, SEAT TAIL

45562-49500

Unavailable

6

GROMMET

45522-49200

$4.58

7

BOLT This part replaces 01107-06208.

01500-06207

$2.28

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

WASHER This part replaces 09160-06012.

09160-06054

$1.62

10

SPACER

09180-07004

$2.30

11

CUSHION This part replaces 09320-10011.

09320-10072

$2.32

12

LOCK, SEAT

95700-49830

Unavailable

13

BOLT This part replaces 01107-06128.

01500-06127

$1.97

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13
