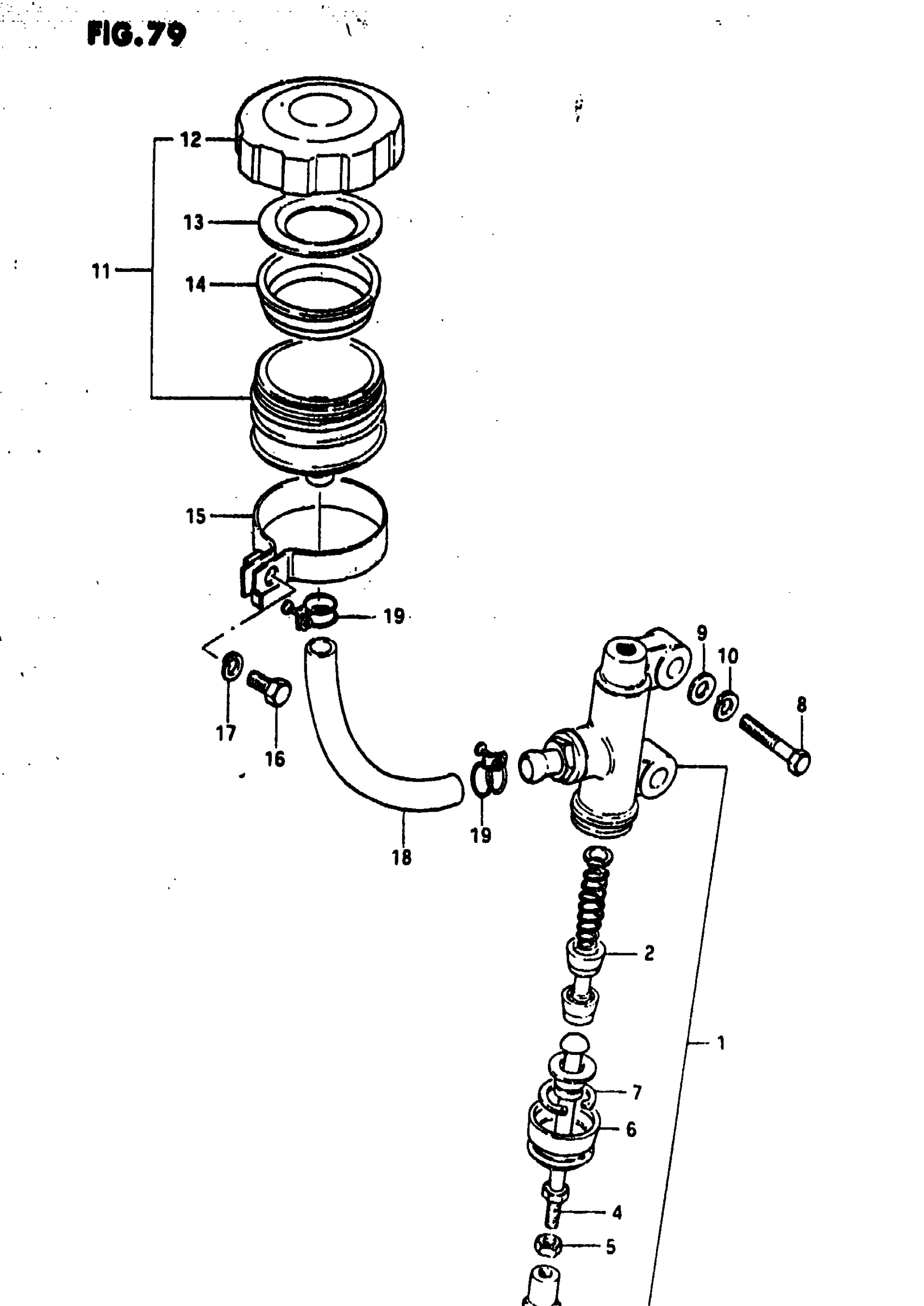

Suzuki GS1100E (1983) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,R | Includes Item(s) 2 - 8 This part replaces 69600-47003.

69600-47011

Unavailable

2

PISTON & CUP SET

69600-45820

$45.83

3

YOKE

69692-34300

Unavailable

4

ROD, PUSH

69670-45001

Unavailable

5

NUT This part replaces 69693-34300.

69693-05A00

$1.96

6

BOOT

69691-45001

$5.70

7

CIRCLIP

51162-70040

$3.25

8

BOLT This part replaces 01107-08308.

01500-08307

$3.04

9

WASHER This part replaces 08322-11088.

08322-01087

$2.13

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

TANK ASSY, RESE | Includes Item(s) 12 - 14 This part replaces 69740-47011.

69740-470V0

Unavailable

12

CAP This part replaces 59669-33603.

59669-07D00

$31.72

13

PLATE, DISPHRAGN

59668-18441

$4.52

14

DIAPHRAGM

59667-18441

$10.28

15

CLAMP | MODEL Z This part replaces 09402-51601.

09402-51602

Unavailable

15

CLAMP | MODEL D

09402-51602

Unavailable

16

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

HOSE

69731-49500

Unavailable

19

CLAMP This part replaces 09400-16302.

09400-16304

$3.10
