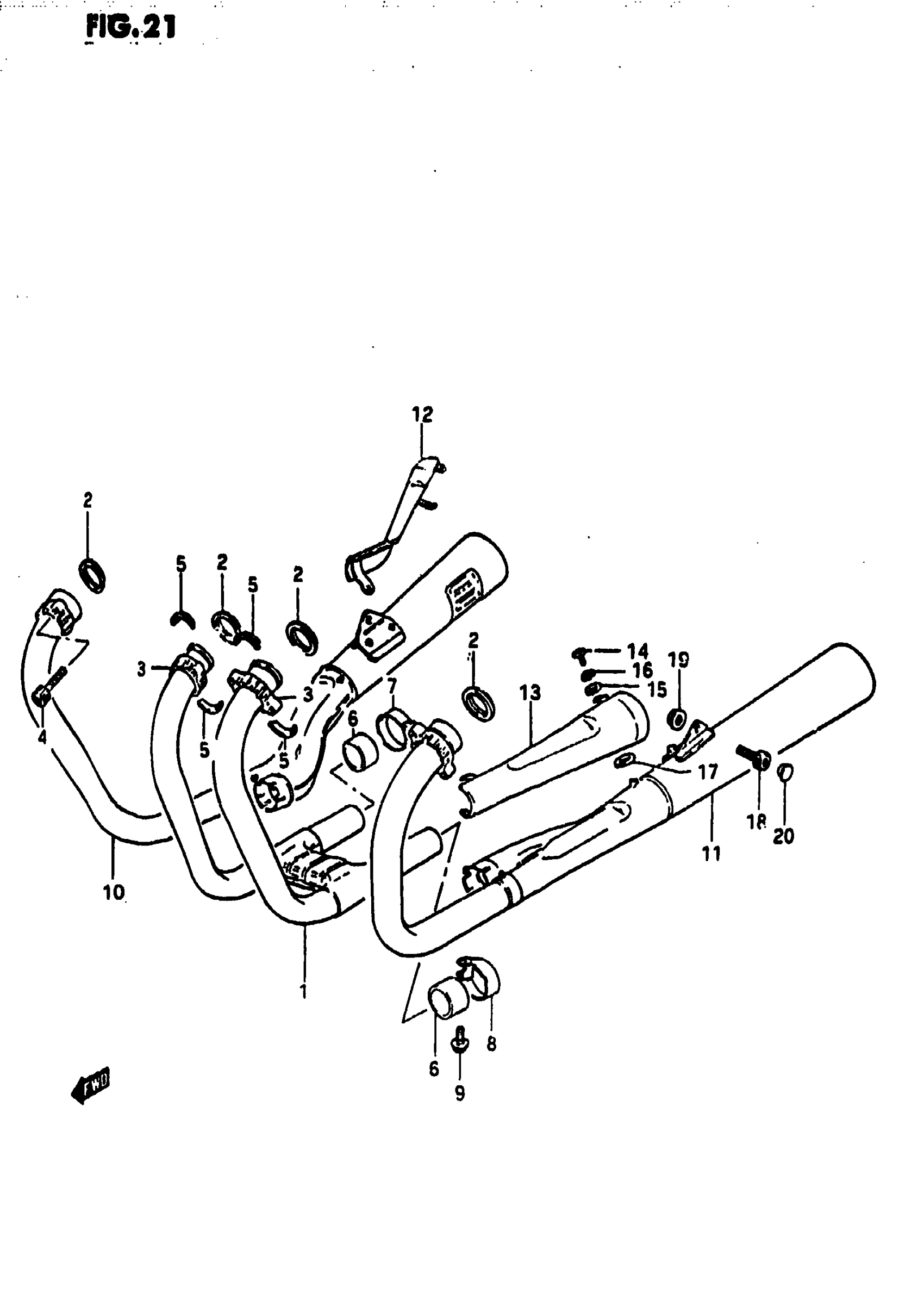

Suzuki GS1100E (1983) MUFFLER (MODEL D) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 14100-49301-H01.

14100-49303-H01

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-11020.

14181-01D00

$7.11

3

NO DESCRIPTION AVAILABLE This part replaces 14182-49020.

14182-49022

Unavailable

4

BOLT This part replaces 09106-08024.

07130-0840B

$3.91

5

PLATE, EXHAUST PIPE

14155-49000

$5.02

6

CONNECTOR,MUFFL This part replaces 14771-49001.

14771-49010

$27.48

7

CLAMP, CONNECTOR RH

14459-45420

Unavailable

8

CLAMP, CONNECTOR LH

14469-45420

Unavailable

9

BOLT This part replaces 01517-08255.

01550-0825A

$2.32

10

MUFFLER, RH

14301-49590-H01

Unavailable

11

MUFFLER, LH

14302-49590-H01

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 14780-49510.

14780-49511

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 14790-49210.

14790-49211

Unavailable

14

SCREW, THROTTLE This part replaces 02112-05105.

02112-0510A

$1.49

15

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

17

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

18

BOLT, LOWER This part replaces 09106-10006.

07130-10307

$4.41

19

NUT This part replaces 08316-16105.

08316-1010B

$2.66

20

CAP

43575-34500

$1.72
