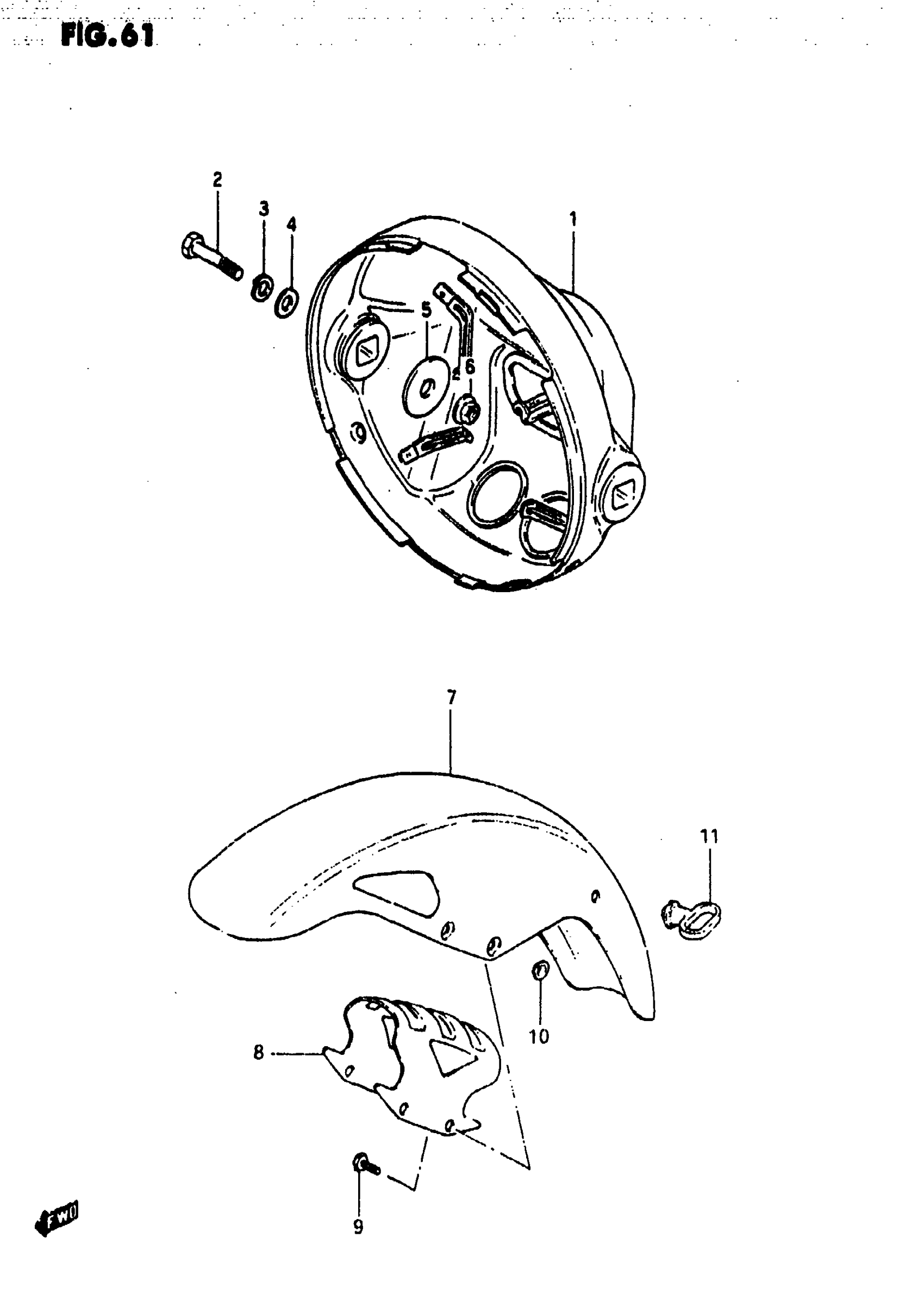

Suzuki GS1100E (1983) HOUSING HEADLAMP - FRONT FENDER Diagram

#

Description
Price

1

HOUSING, HEADLAMP (BLACK) | GS1100 EZ, ED This part replaces 51810-45900-291.

51810-45900-019

Unavailable

2

BOLT

01204-08307

$1.99

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

4

WASHER This part replaces 08322-11088.

08322-01087

$2.13

5

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

6

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

7

NO DESCRIPTION AVAILABLE | GS1100EZ This part replaces 53111-45900-14B.

53111-45901-13L

Unavailable

7

NO DESCRIPTION AVAILABLE | GS1100EZ This part replaces 53111-45900-10S.

53111-45901-10S

Unavailable

7

NO DESCRIPTION AVAILABLE | GS1100ED This part replaces 53111-45901-17R.

53111-45901-13L

Unavailable

7

NO DESCRIPTION AVAILABLE | GS1100ED This part replaces 53111-45901-17S.

53111-45901-13L

Unavailable

7

NO DESCRIPTION AVAILABLE | GS1100ESD This part replaces 53111-45901-16D.

53111-45901-13L

Unavailable

8

BRACE, FRONT FENDER

53114-45900

Unavailable

9

BOLT,TRIM TAB This part replaces 09100-08135.

09100-08215

Unavailable

10

WASHER

09169-08032

Unavailable

11

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
