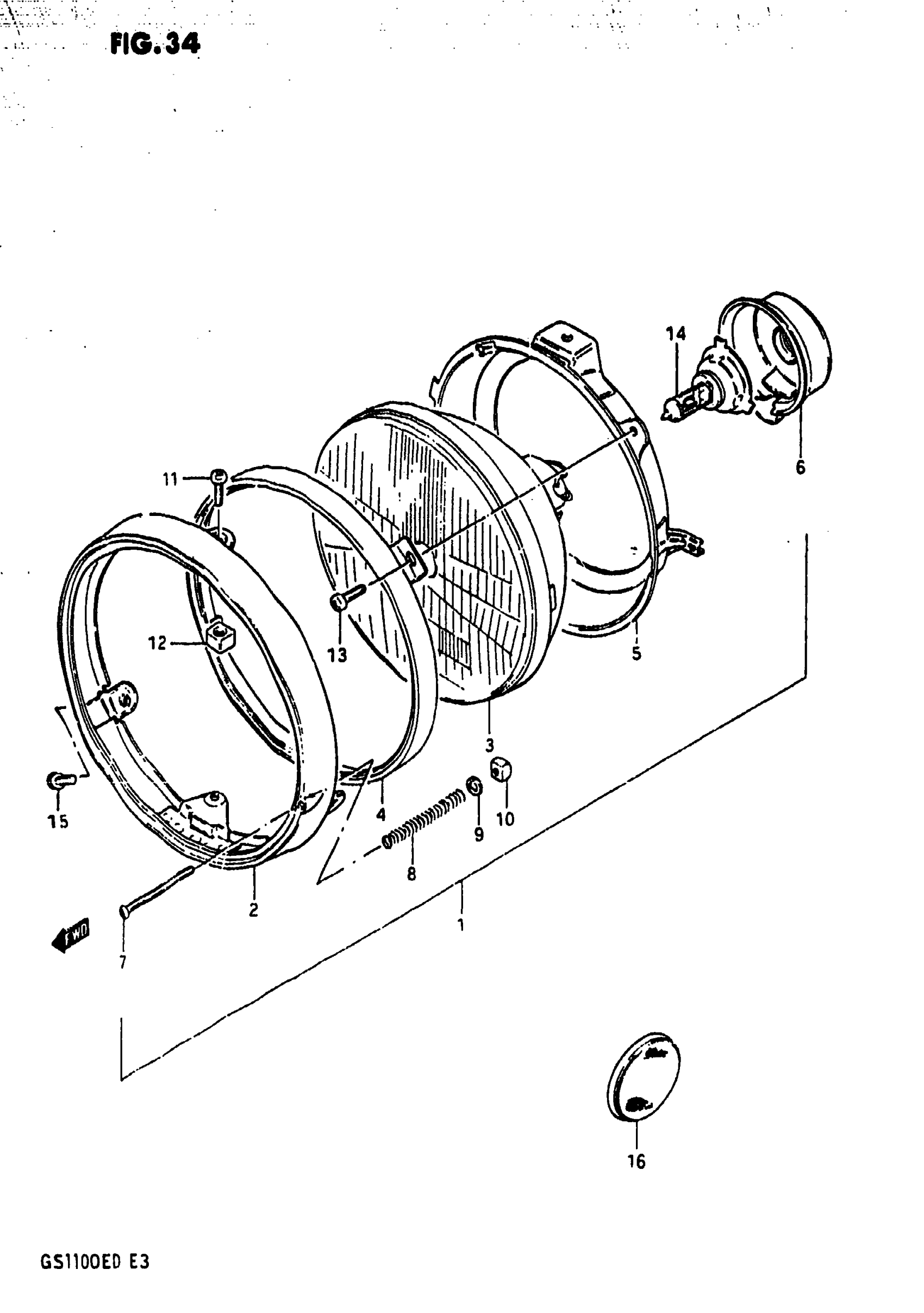

Suzuki GS1100E (1983) HEADLAMP (GS1100EZ/ED) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 14

35100-45930-999

Unavailable

2

RIM

35111-45900

Unavailable

3

UNIT

35121-45930

Unavailable

4

RING

35127-45900

Unavailable

5

RING, MOUNTING

35130-45900

Unavailable

6

COVER, SOCKET This part replaces 35173-49200.

35173-38A00

$16.87

7

SCREW

35151-45900

$3.65

8

SPRING This part replaces 35154-45900.

35154-49200

$5.50

9

WASHER

35157-27630

$3.25

10

NUT

35135-45600

$3.65

11

SCREW This part replaces 02112-05128.

02112-05127

$1.97

12

NUT

35135-45900

$3.25

13

SCREW This part replaces 02112-04088.

02112-04087

$1.49

14

BULB (12V, 60/55W, H4) | EXECUTED LOCALLY

09471-12060

$25.15

15

SCREW

09127-05013

$1.49

16

REFLEX REFLECTOR, FRONT

35950-49080

$17.24
