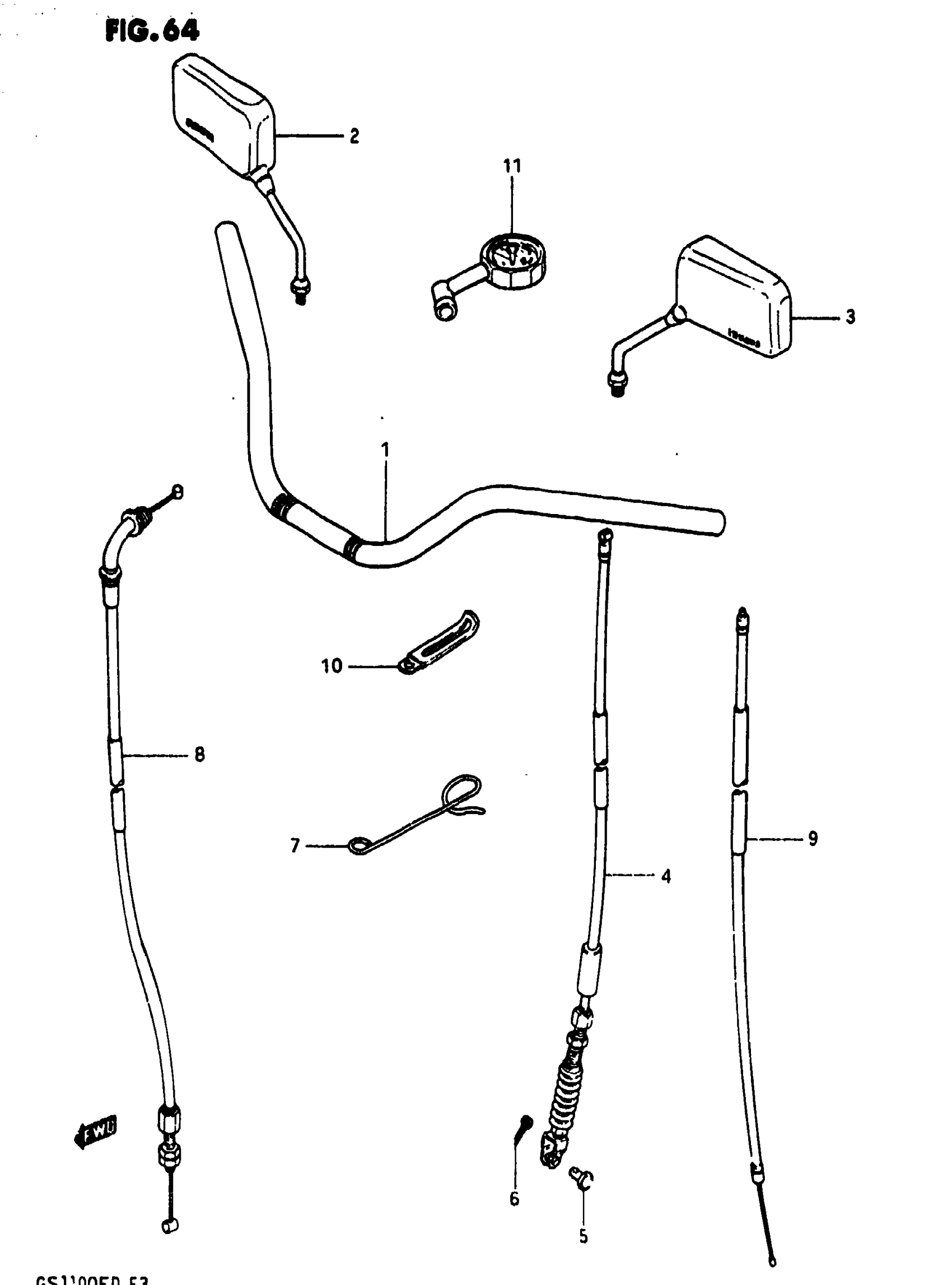

Suzuki GS1100E (1983) HANDLEBAR (GS1100EZ) Diagram

#

Description

Price

1

HANDLEBAR (NEUTRAL TYPE)

56110-45450

Unavailable

2

MIRROR ASSY,REA This part replaces 56500-34300.

56500-01D02

$123.17

3

MIRROR ASSY,REA This part replaces 56600-34300.

56600-01D02

$125.48

4

CABLE, CLUTCH This part replaces 58200-49500.

58200-45401

Unavailable

5

PIN

09200-06011

Unavailable

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

7

GUIDE

58626-45101

Unavailable

8

CABLE,THROTTLE This part replaces 58300-49500.

58300-11491

Unavailable

9

CABLE,STARTER This part replaces 58410-49500.

58410-49X02

Unavailable

10

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

11

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
