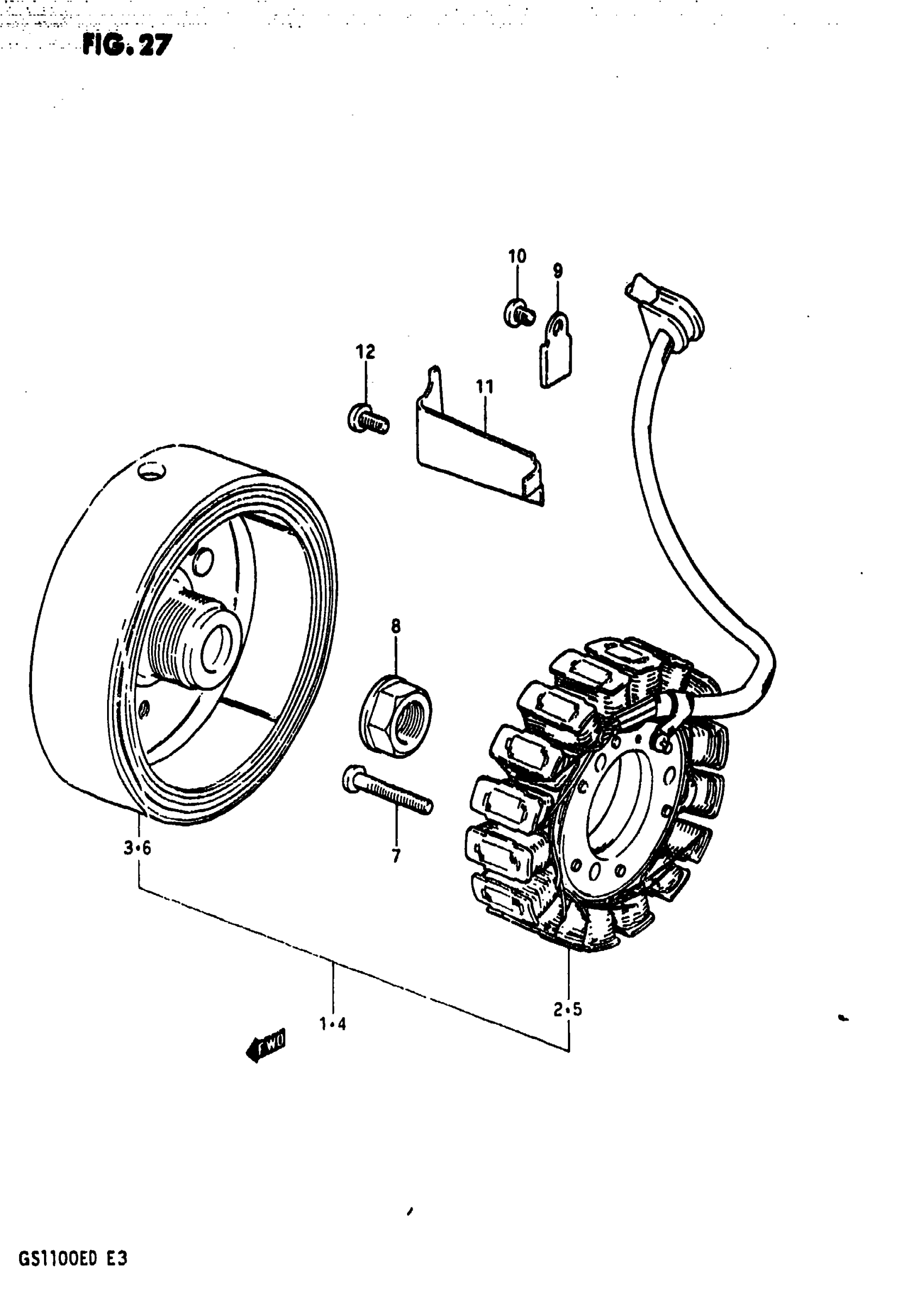

Suzuki GS1100E (1983) GENERATOR (GS1100EZ/ED) Diagram

#

Description
Price

1

STATOR | MODEL Z; Includes Item(s) 2 - 3 This part replaces 31400-49310.

31401-49310

Unavailable

2

STATOR | MODEL Z

31401-49310

Unavailable

3

ROTOR | MODEL Z

31402-49310

Unavailable

4

STATOR | MODEL D; Includes Item(s) 5 - 6 This part replaces 31400-49320.

31401-09300

Unavailable

5

STATOR | MODEL D This part replaces 31401-49411.

31401-09300

Unavailable

6

ROTOR | MODEL D This part replaces 31402-09300.

31402-49330

Unavailable

7

SCREW This part replaces 02112-06308.

02112-06307

$1.97

8

NUT

31792-49200

$9.69

9

CLAMP

31497-45000

$1.92

10

SCREW | MODEL Z This part replaces 02112-05068.

09125-05122

$2.06

10

SCREW | MODEL D This part replaces 02112-05088.

02112-05087

$1.49

11

CLAMP

31498-45000

$2.15

12

SCREW This part replaces 02112-06108.

02112-06107

$1.49
