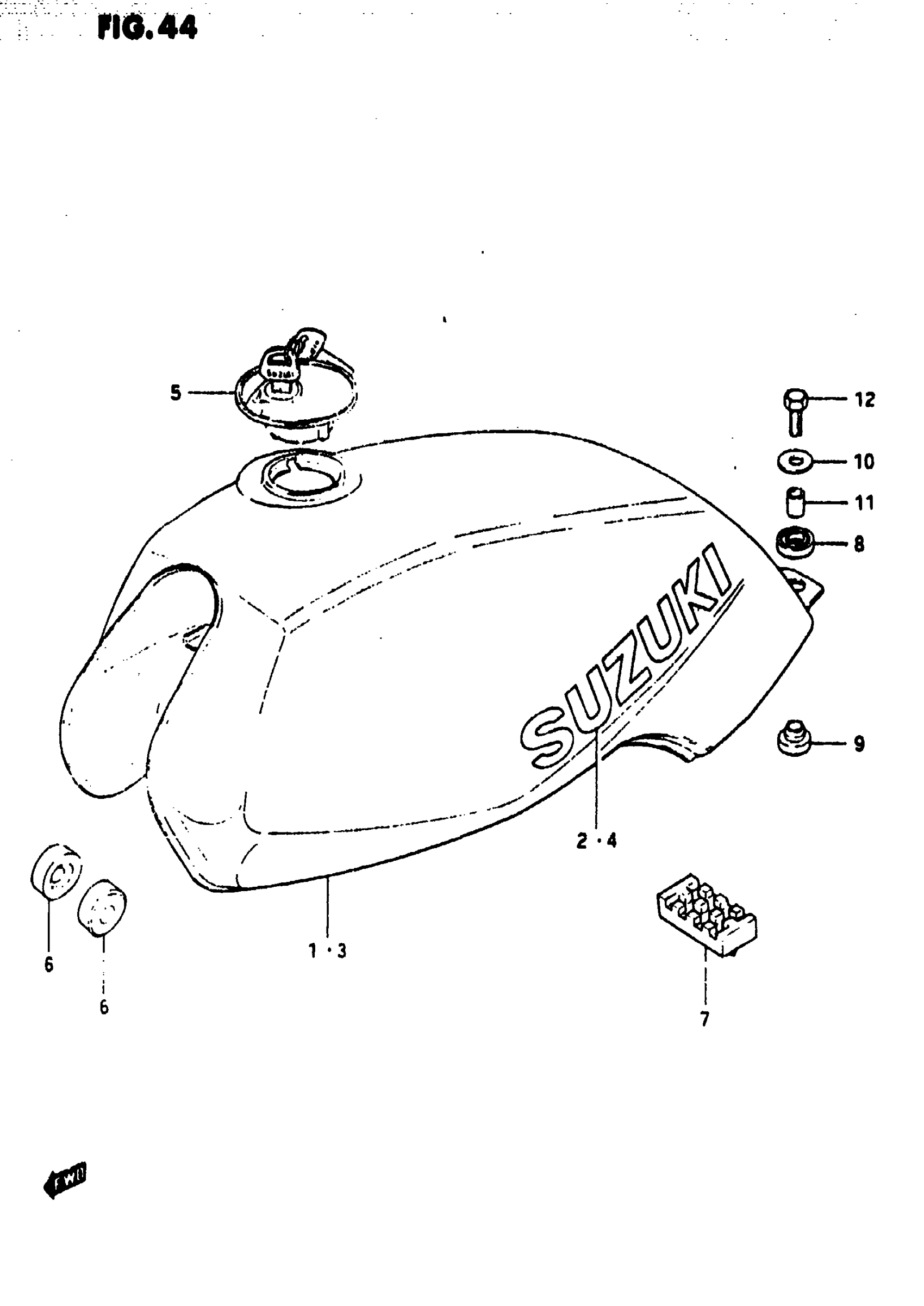

Suzuki GS1100E (1983) FUEL TANK (MODEL Z) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-49510-14B.

44110-49510-13L

Unavailable

2

EMBLEM, FUEL TA This part replaces 68111-32400-67U.

68111-44400-05F

Unavailable

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 This part replaces 44100-49510-10S.

44110-49510-13L

Unavailable

4

EMBLEM This part replaces 68111-32400-82Z.

68111-44400-019

Unavailable

5

CAP SET,FUEL TA This part replaces 44200-34301-KEY.

44200-34821

$104.83

6

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

7

CUSHION,FUEL TA This part replaces 44541-34500.

44541-34501

$12.87

8

CUSHION, REAR

09320-14013

$2.11

9

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

10

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

11

SPACER This part replaces 09180-06072.

09180-06271

$2.35

12

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48
