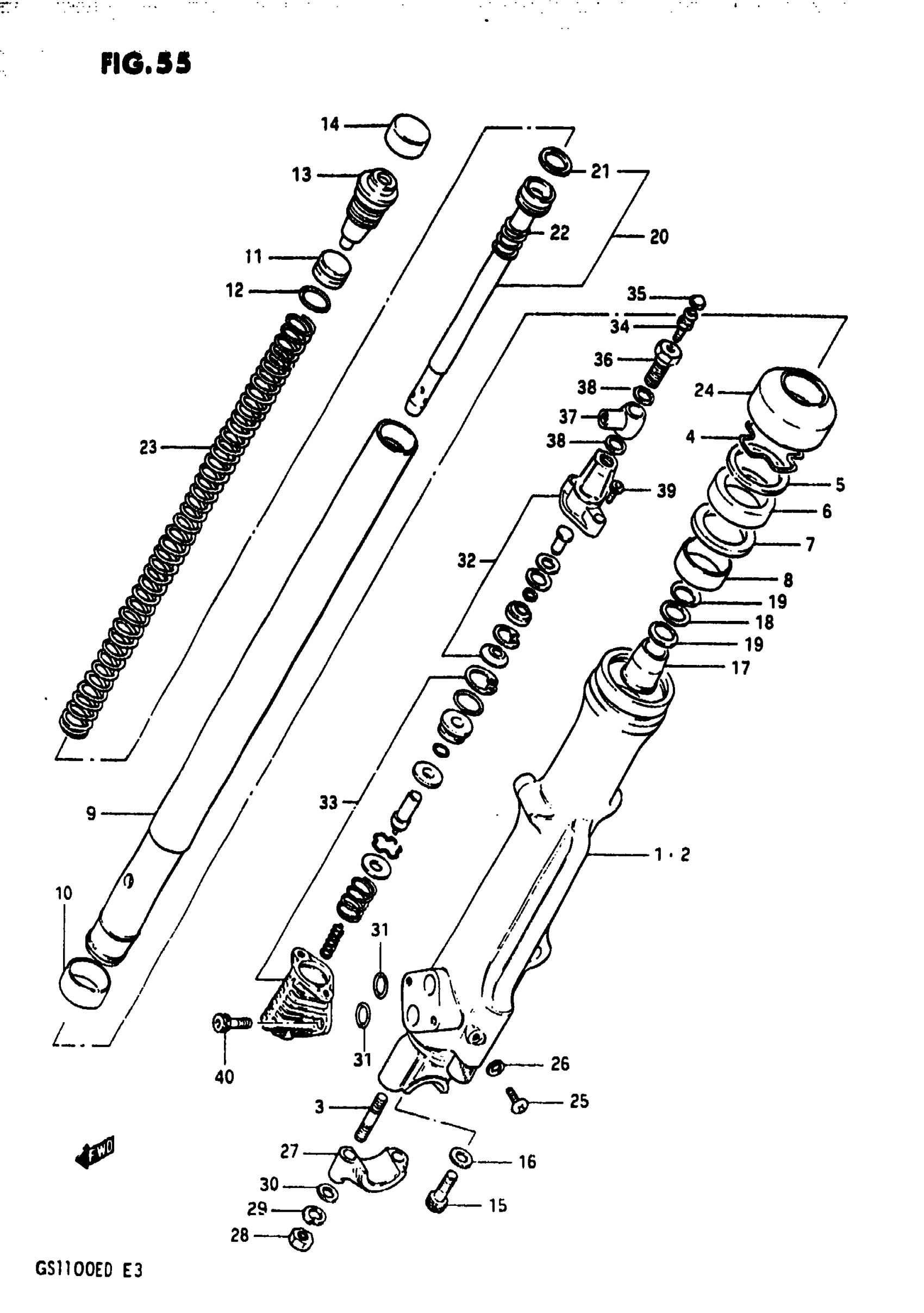

Suzuki GS1100E (1983) FRONT DAMPER (GS1100EZ) Diagram

#

Description
Price

0

DAMPER ASSY, RH

51103-49500

Unavailable

0

DAMPER ASSY, LH | Includes Item(s) 1 - 40

51104-49500

Unavailable

1

OUTER TUBE, RH

51130-49500-291

Unavailable

2

OUTER TUBE, LH

51140-49500-291

Unavailable

3

BOLT,STUD This part replaces 01411-08308.

01411-0830A

$2.28

4

SNAP RING

51156-40301

$5.05

5

WASHER

51158-49000

Unavailable

6

SEAL, OIL This part replaces 51153-49000.

51153-08C20

$20.47

7

WASHER

51158-49500

$4.45

8

METAL, SLIDE This part replaces 51167-49500.

51167-01D00

$12.63

9

INNER TUBE

51110-49500

Unavailable

10

PISTON This part replaces 51121-49500.

51121-49510

Unavailable

11

PISTON, FREE

51172-45110

Unavailable

12

O RING,FORK SPR This part replaces 51117-45110.

09280-22011

$3.41

13

CAP

51351-49200

Unavailable

14

CAP, RUBBER

51189-49300

$9.48

15

BOLT

51147-16510

$4.34

16

GASKET

51148-41310

$2.26

17

PIECE OIL LOCK

51195-45420

Unavailable

18

WASHER

51123-45420

$3.65

19

LEAF SPRING

51125-45420

$3.65

20

CYLINDER

51146-49500

Unavailable

21

PISTON RING

51196-49000

$7.78

22

SPRING, REACTION

51177-49200

Unavailable

23

SPRING

51171-49500

Unavailable

24

DUST SEAL

51173-49002

$16.96

25

SCREW This part replaces 02112-04088.

02112-04087

$1.49

26

GASKET

51183-03010

$2.07

27

HOLDER, AXLE (BLACK) This part replaces 51132-49500-291.

51132-49500-15T

Unavailable

28

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

29

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

30

WASHER This part replaces 08322-21088.

08322-01087

$2.13

31

O RING, OIL GALLERY This part replaces 51799-44130.

09280-12012

$4.64

32

MODULATOR PLUNGER SET

51700-44832

Unavailable

33

MODULATOR VALVE SET

51700-49820

Unavailable

34

BREATHER, AIR

51778-44130

Unavailable

35

CAP, BLEEDER This part replaces 51779-44130.

55156-66310

$5.17

36

BOLT, UNION

51753-49300

Unavailable

37

UNION

51765-49300

Unavailable

38

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

39

BOLT This part replaces 51797-44160.

07130-0512B

$2.50

40

BOLT This part replaces 51796-44130.

07130-06167

$3.16
