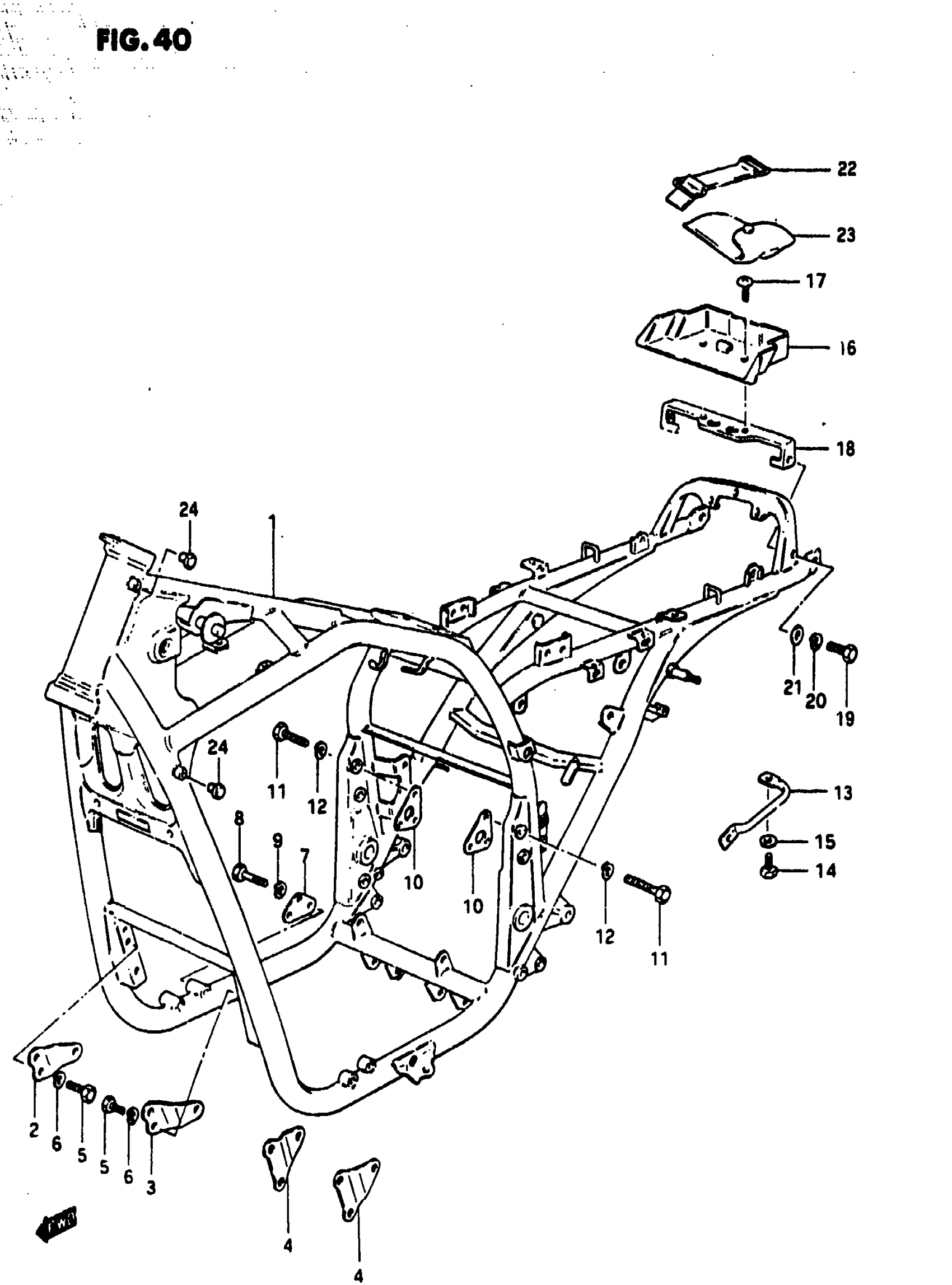

Suzuki GS1100E (1983) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL Z

41100-49500-019

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 41100-49501-019.

41100-49502-019

Unavailable

2

PLATE, NO.1 RH (BLACK)

41911-49500-019

Unavailable

3

PLATE, NO.2 LH (BLACK)

41921-49500-019

Unavailable

4

PLATE, NO. 1 (SILVER) | GS1100ESD This part replaces 41911-45950-019.

41911-45950-13L

Unavailable

5

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

PLATE, NO.2 (SILVER) This part replaces 41921-49000-019.

41921-49000-13L

Unavailable

8

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

9

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

10

PLATE, NO.3 (SILVER) This part replaces 41940-49000-019.

41940-49000-13L

Unavailable

11

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

GRIP, FRAME HANDLE

41610-49500

Unavailable

14

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

HOLDER, TOOL

41551-49500

Unavailable

17

SCREW

02142-06108

$2.45

18

PLATE, TOOL HOLDER

47440-49501

Unavailable

19

BOLT This part replaces 01107-06128.

01500-06127

$1.97

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

WASHER This part replaces 08322-21068.

08322-01067

$2.13

22

BAND This part replaces 09462-00072.

09462-00094

$3.16

23

TOOL ASSY This part replaces 09800-00240.

09800-21068

Unavailable

24

PLUG | GS1100ED

09250-06005

$2.15
