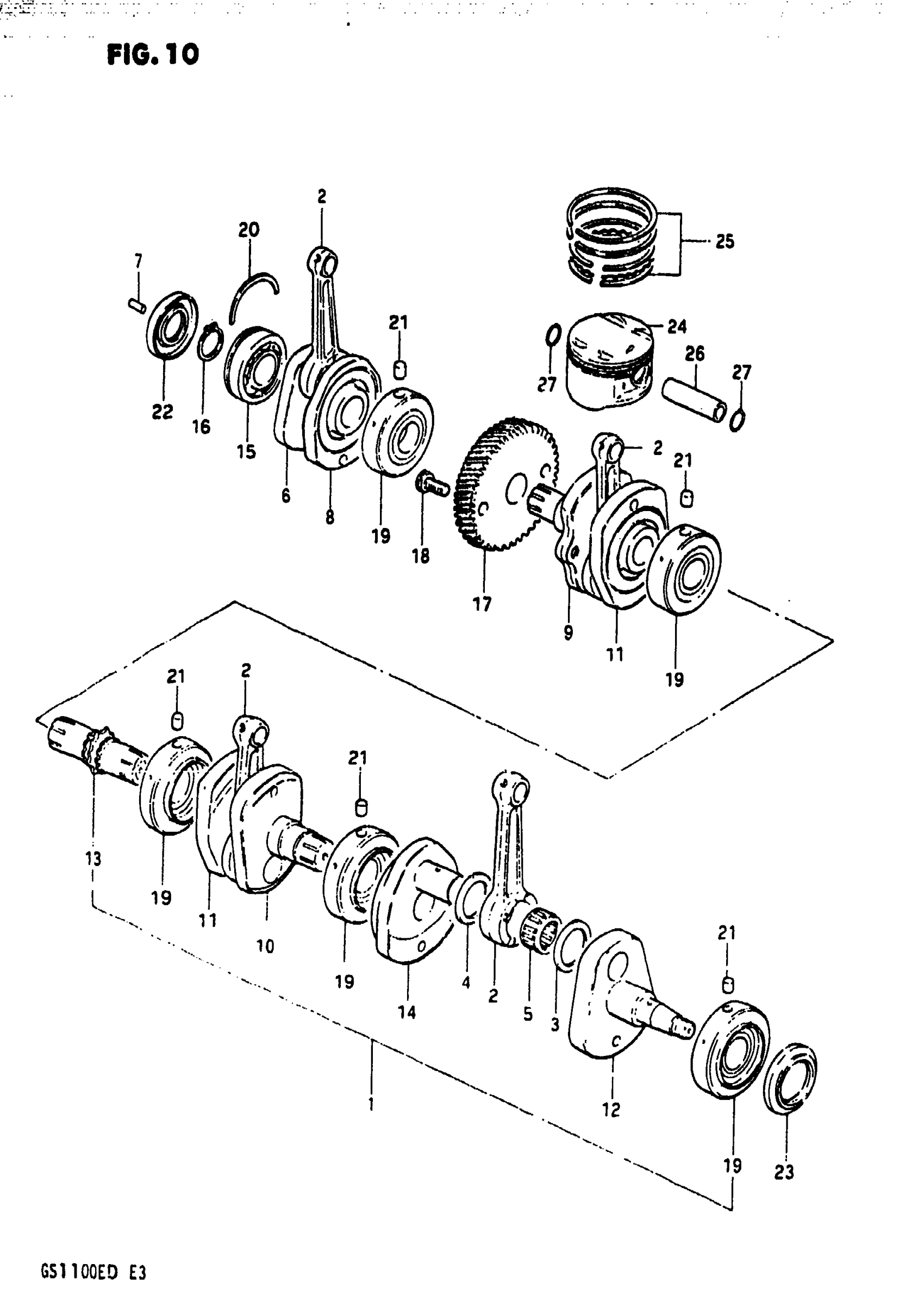

Suzuki GS1100E (1983) CRANKSHAFT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 12200-49303.

12200-49308

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL D; Includes Item(s) 2 - 19 This part replaces 12200-49603.

12200-49608

Unavailable

2

ROD, CONNECTING This part replaces 12161-49201.

12161-49302

$193.52

3

WASHER

09160-31002

$7.82

4

WASHER

09160-31003

Unavailable

5

BEARING

09263-31004

$64.62

6

CRANKSHAFT, RH

12220-49202

Unavailable

7

PIN (4X13.8)

04221-04089

$1.49

8

NO DESCRIPTION AVAILABLE This part replaces 12230-49201.

12230-49202

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 12241-49202.

12241-49203

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 12271-49202.

12271-49203

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 12250-49201.

12250-49202

Unavailable

12

CRANKSHAFT, LH | MODEL Z

12261-49302

Unavailable

12

CRANKSHAFT, LH | MODEL D

12261-49601

Unavailable

13

SHAFT, CHAIN DRIVE (NT:15)

12281-49200

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 12290-49201.

12290-49202

Unavailable

15

BEARING, RH

09262-30033

Unavailable

16

CIRCLIP This part replaces 08331-11308.

08331-31309

$2.57

17

NO DESCRIPTION AVAILABLE This part replaces 21111-49002.

21111-49004

Unavailable

18

BOLT This part replaces 09106-08006.

07130-0816A

$3.16

19

BEARING This part replaces 09264-32005.

09264-32009

$201.55

20

C RING, BEARING RH

09390-72004

Unavailable

21

PIN

04221-07129

$1.86

22

OIL SEAL, RH

09283-30021

$19.20

23

OIL SEAL, LH

09289-48002

$10.77

24

PISTON | MODEL Z This part replaces 12111-49203.

12111-49222

Unavailable

24

PISTON | MODEL D This part replaces 12111-49221.

12111-49222

Unavailable

24

PISTON SET,OS: | OPT, MODEL Z This part replaces 12111-49203-050.

12100-49221-050

Unavailable

24

PISTON SET,OS: | OPT, MODEL D This part replaces 12111-49221-050.

12100-49221-050

Unavailable

24

NO DESCRIPTION AVAILABLE | OPT, MODEL Z This part replaces 12111-49203-100.

12100-49221-100

Unavailable

24

NO DESCRIPTION AVAILABLE | OPT, MODEL D This part replaces 12111-49221-100.

12100-49221-100

Unavailable

25

RING SET, PISTON This part replaces 12140-49220.

12140-49270

$44.54

25

RING SET,PISTON | OPT This part replaces 12140-49220-050.

12140-49270-050

$56.23

25

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-49220-100.

12140-49221-100

Unavailable

26

PIN, PISTON This part replaces 12151-49202.

12151-15501

$17.37

27

CIRCLIP

09381-18002

$1.67
