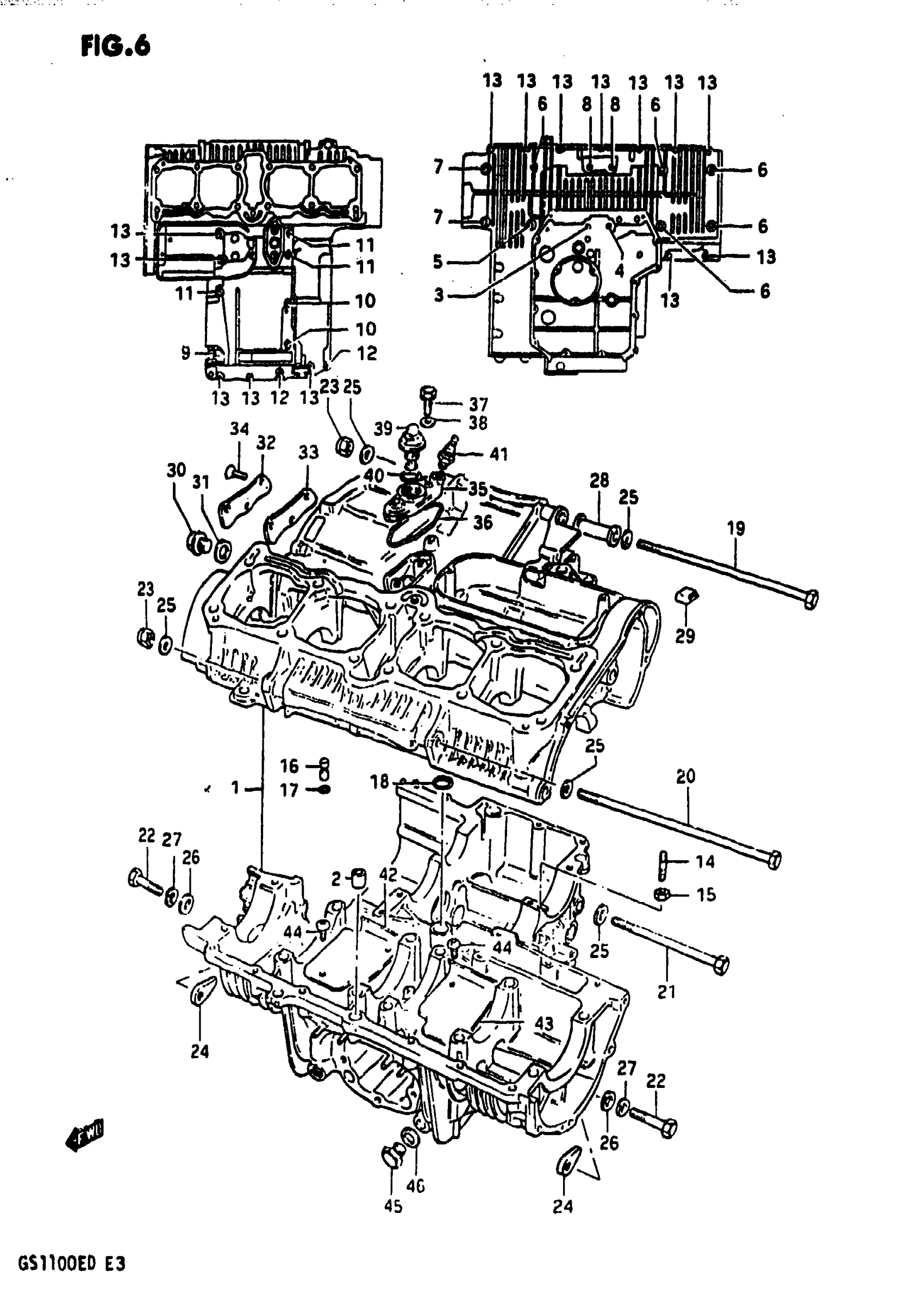

Suzuki GS1100E (1983) CRANKCASE (MODEL D) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 18 This part replaces 11300-49870.

11300-49826

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT (8x155)

09103-08059

Unavailable

4

BOLT (8X125) This part replaces 09103-08020.

09103-08106

Unavailable

5

BOLT (8X100) This part replaces 09103-08009.

09103-08070

$5.57

6

BOLT This part replaces 01517-08905.

01550-0890B

$5.37

7

BOLT This part replaces 01517-08655.

01550-0865A

$3.51

8

BOLT This part replaces 01517-08605.

01550-0860A

$4.17

9

BOLT This part replaces 01517-08505.

01550-0850B

$4.17

10

BOLT This part replaces 01517-06855.

01550-0685B

$4.25

11

BOLT This part replaces 01517-06755.

01550-0675A

Unavailable

12

BOLT This part replaces 01517-06555.

01550-0655B

$3.30

13

BOLT This part replaces 01517-06405.

01550-0640A

$2.42

14

BOLT,STUD This part replaces 01421-06358.

01421-0635A

$2.38

15

NUT This part replaces 08316-16068.

08319-31067

$2.03

16

NOZZLE, OIL GALLERY

09364-05005

$3.73

17

O RING

09280-03003

$1.91

18

O RING

09280-13001

$2.72

19

BOLT (10x230)

09100-10140

Unavailable

20

ENGINE MOUNT BO This part replaces 09101-10010.

09101-10010-XC0

Unavailable

21

BOLT (10x165)

09100-10078

$12.70

22

BOLT This part replaces 01107-10605.

01500-1060A

$4.41

23

NUT

09159-10011

$3.23

24

NUT

09159-10020

$5.18

25

WASHER, KNUCKLE END This part replaces 08322-11105.

08322-0110A

$1.84

26

WASHER This part replaces 09160-10054.

09160-10005

$1.87

27

LOCK WASHER This part replaces 08321-21105.

08321-0110A

$1.84

28

SPACER

11610-45410

Unavailable

29

RUBBER PAD, CRANKCASE

11252-25000

$4.52

30

PLUG This part replaces 09247-14012.

09247-14026

$3.76

31

GASKET

09168-14004

$1.83

32

CAP, OIL GALLERY

11394-45000

Unavailable

33

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

Unavailable

34

SCREW This part replaces 02122-06168.

02122-06167

$1.49

35

HOUSING, SWITCH

16445-49010

Unavailable

36

O RING

16448-45000

$8.89

37

BOLT This part replaces 01517-06258.

01550-06257

$2.30

38

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

39

SWITCH ASSY,OIL This part replaces 37820-45060.

37820-45061

$31.65

40

O RING

09280-19001

$1.49

41

GAUGE, OIL TEMPERATURE | GS1100ED

34870-49000

Unavailable

41

NO DESCRIPTION AVAILABLE | GS1100ESD This part replaces 34870-31300.

34870-31301

Unavailable

42

PLATE, OIL SEPARATER RH This part replaces 11521-49200.

11521-49201

Unavailable

43

PLATE, OIL SEPARATER LH This part replaces 11522-49200.

11522-49201

Unavailable

44

SCREW This part replaces 02112-06088.

02112-06087

$1.49

45

PLUG This part replaces 09247-14022.

09247-14029

$2.24

46

WASHER

09168-14004

$1.83
