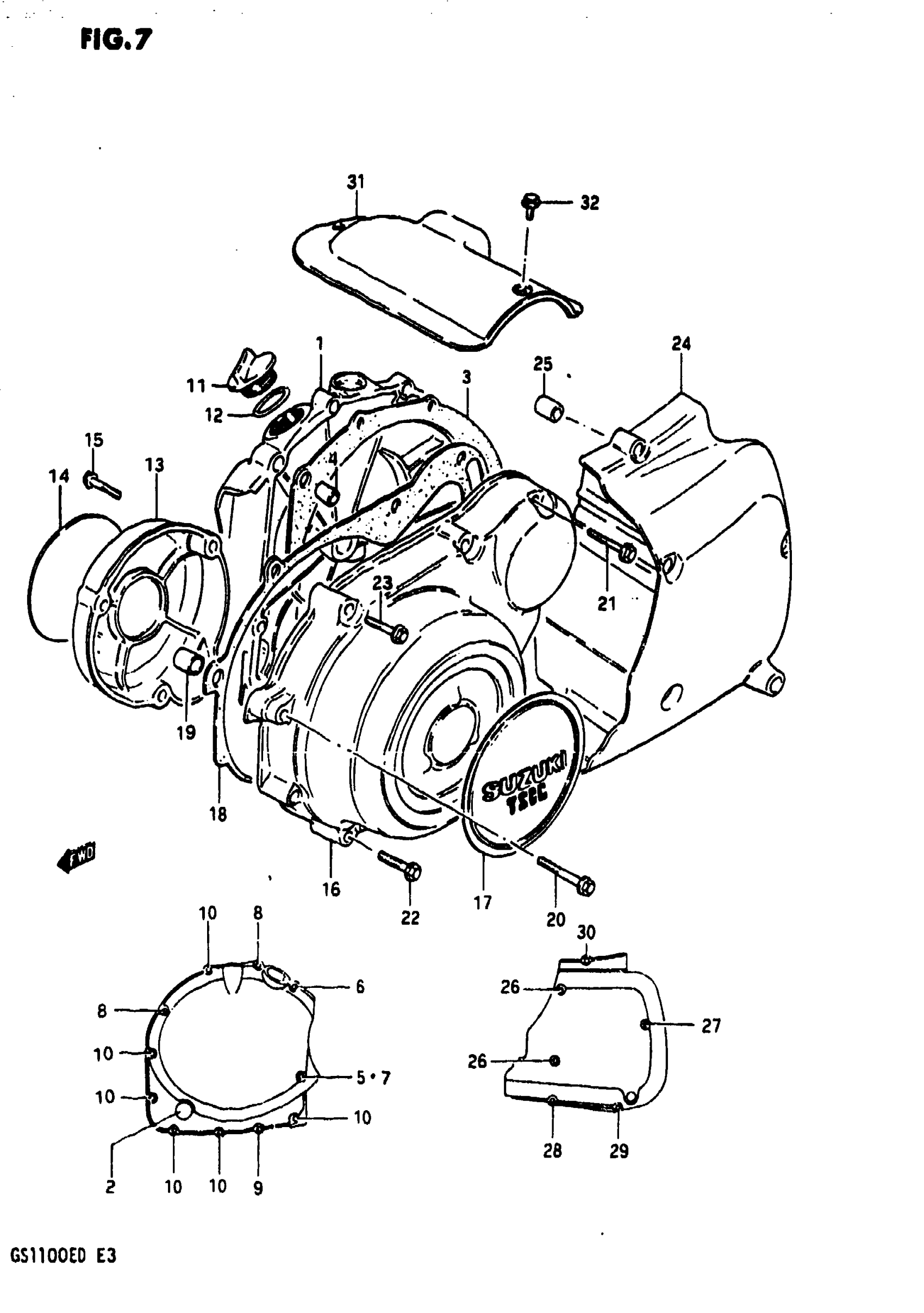

Suzuki GS1100E (1983) CRANKCASE COVER (MODEL Z) Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-49201

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET,CLUTCH C This part replaces 11482-49201.

11482-49202-H17

$29.49

4

PIN

04211-09129

$1.65

5

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

6

BOLT This part replaces 01547-06408.

01547-06407

$2.32

7

BOLT This part replaces 01547-06358.

01547-06357

$2.03

8

BOLT This part replaces 01547-06308.

01547-06307

$2.03

9

BOLT This part replaces 01547-06258.

01547-06257

$2.03

10

BOLT This part replaces 01547-06208.

01547-06207

$2.01

11

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

12

O RING

09280-32005

$1.99

13

COVER, CONTACT BREAKER

11381-49202

$54.04

14

EMBLEM

68235-49500

$21.02

15

BOLT This part replaces 01547-05308.

01547-05307

$2.30

16

COVER, GENERATOR

11351-49201

Unavailable

17

EMBLEM

68233-49500

$22.81

18

GASKET,MAGNETO This part replaces 11483-49200.

11483-49210

$11.79

19

PIN This part replaces 09206-13001.

04211-13189

$2.19

20

BOLT This part replaces 01547-06458.

01547-06457

$2.32

21

BOLT This part replaces 01547-06408.

01547-06407

$2.32

22

BOLT This part replaces 01547-06358.

01547-06357

$2.03

23

BOLT This part replaces 01547-06308.

01547-06307

$2.03

24

COVER, ENGINE SPROCKET

11360-49201

Unavailable

25

PIN

04211-09129

$1.65

26

BOLT This part replaces 01547-06958.

01547-06957

$3.43

27

BOLT This part replaces 01547-06858.

01547-06857

$3.30

28

BOLT This part replaces 01547-06708.

01547-06707

$2.75

29

BOLT This part replaces 01547-06558.

01547-06557

$2.32

30

BOLT This part replaces 01547-06308.

01547-06307

$2.03

31

COVER, STARTER MOTOR

11382-49002

$46.38

32

BOLT This part replaces 01547-05088.

01547-05087

$1.72
