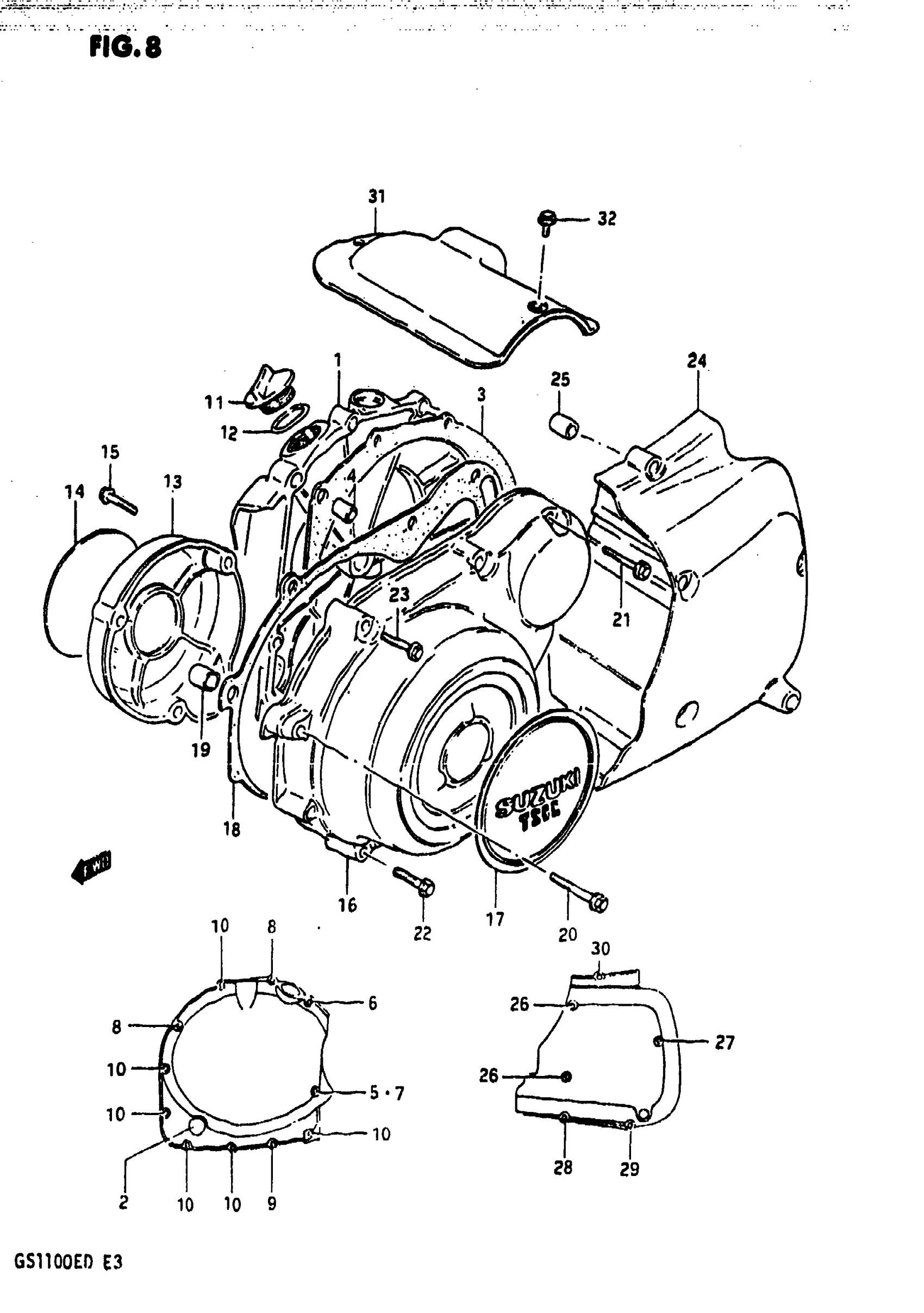

Suzuki GS1100E (1983) CRANKCASE COVER (MODEL D) Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-49220

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET,CLUTCH C This part replaces 11482-49201.

11482-49202-H17

$29.49

4

PIN

04211-09129

$1.65

5

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

6

BOLT This part replaces 01547-06405.

01547-0640B

$2.75

7

BOLT, WATER PUMP This part replaces 01547-06355.

01547-0635B

$2.73

8

BOLT This part replaces 01547-06305.

01547-06307

$2.03

9

BOLT (6x25)

01547-06255

Unavailable

10

..BOLT This part replaces 01547-06205.

01547-0620B

$2.45

11

PLUG SET This part replaces 09259-30002.

09200-30821

Unavailable

12

O RING

09280-32005

$1.99

13

COVER, CONTACT BREAKER

11381-45412

Unavailable

14

EMBLEM

68235-49500

$21.02

15

BOLT This part replaces 01547-05305.

01547-0530B

$2.56

16

COVER, GENERATOR

11351-49220

Unavailable

17

EMBLEM

68233-49500

$22.81

18

GASKET,MAGNETO This part replaces 11483-49200.

11483-49210

$11.79

19

PIN This part replaces 09206-13001.

04211-13189

$2.19

20

BOLT This part replaces 01547-06455.

01547-0645B

$2.73

21

BOLT This part replaces 01547-06405.

01547-0640B

$2.75

22

BOLT, WATER PUMP This part replaces 01547-06355.

01547-0635B

$2.73

23

BOLT This part replaces 01547-06305.

01547-06307

$2.03

24

COVER, ENGINE SPROCKET

11360-45411

Unavailable

25

PIN

04211-09129

$1.65

26

.BOLT This part replaces 01547-06955.

01547-0695B

$3.37

27

BOLT, CRANKCASE (6X85) This part replaces 01547-06855.

01547-0685B

$4.00

28

BOLT This part replaces 01547-06705.

01547-0670B

$3.29

29

BOLT This part replaces 01547-06555.

01547-0655B

$2.75

30

BOLT This part replaces 01547-06305.

01547-06307

$2.03

31

COVER, STARTER MOTOR

11382-45410

Unavailable

32

BOLT, COVER This part replaces 01547-05085.

01547-0508B

$2.97
