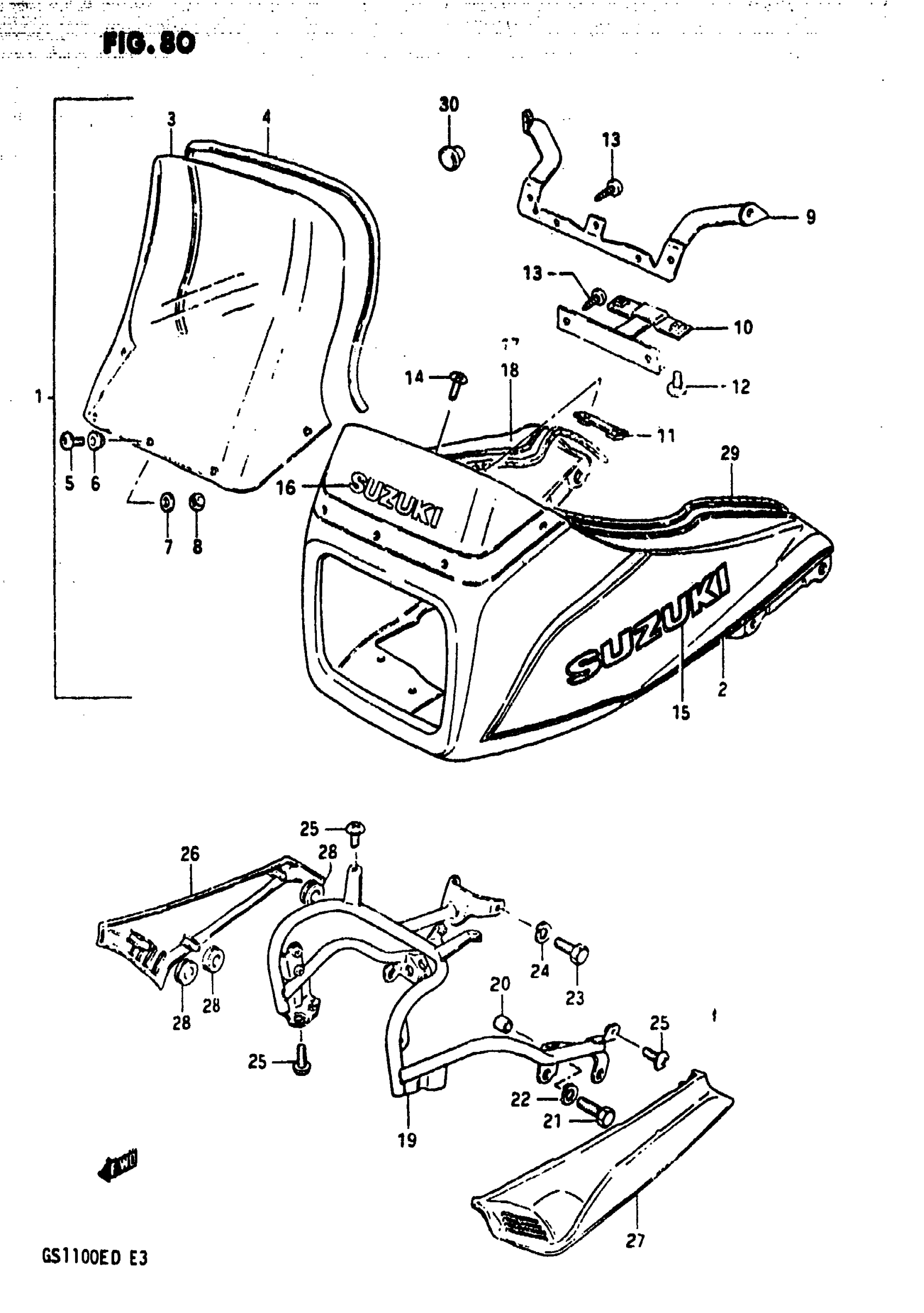

Suzuki GS1100E (1983) COWLING (GS1100ESD) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 16 This part replaces 94400-49510-91J.

94400-49X00

Unavailable

2

TAPE SET

68190-49500-93K

Unavailable

3

WINDOW This part replaces 94611-31320.

94611-31340

Unavailable

4

MOLDING This part replaces 94631-31010.

94631-44110

$36.85

5

SCREW

09139-05023

$1.78

6

CUSHION(5.5X11X This part replaces 09320-05008.

09320-05021

$2.54

7

WASHER This part replaces 08322-21058.

08322-01057

$2.13

8

NUT This part replaces 08310-11058.

08310-00057

$1.84

9

BRACE, UPPER This part replaces 94530-31310.

94530-31311

Unavailable

10

BRACE, LOWER This part replaces 94540-31310.

94540-31311

Unavailable

11

BRACE, RH & LH This part replaces 94550-31310.

94550-31311

Unavailable

12

SCREW, LOWER

02142-06108

$2.45

13

NO DESCRIPTION AVAILABLE This part replaces 03211-05105.

03212-05103

Unavailable

14

SCREW This part replaces 02142-05108.

02142-05107

$1.49

15

EMBLEM,FUEL TAN This part replaces 68131-49550-73H.

68111-32B10-07G

$23.62

16

EMBLEM

68271-43400-064

Unavailable

17

TAPE, RH (BLACK) This part replaces 68197-31300.

68197-31310-291

Unavailable

18

TAPE, LH (BLACK) This part replaces 68198-31300.

68198-31310-291

Unavailable

19

BRACE This part replaces 94510-31310.

94510-31312

Unavailable

20

SPACER

94549-31310

Unavailable

21

BOLT This part replaces 01107-08308.

01500-08307

$3.04

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

26

NO DESCRIPTION AVAILABLE This part replaces 94431-49500-16D.

94431-49500

Unavailable

27

NO DESCRIPTION AVAILABLE This part replaces 94441-49500-16D.

94441-49500

Unavailable

28

CUSHION

09320-08018

$3.04

29

MOULDING This part replaces 94953-31310.

94593-31310

Unavailable

30

PLUG | 6S1100ED

09250-06005

$2.15
