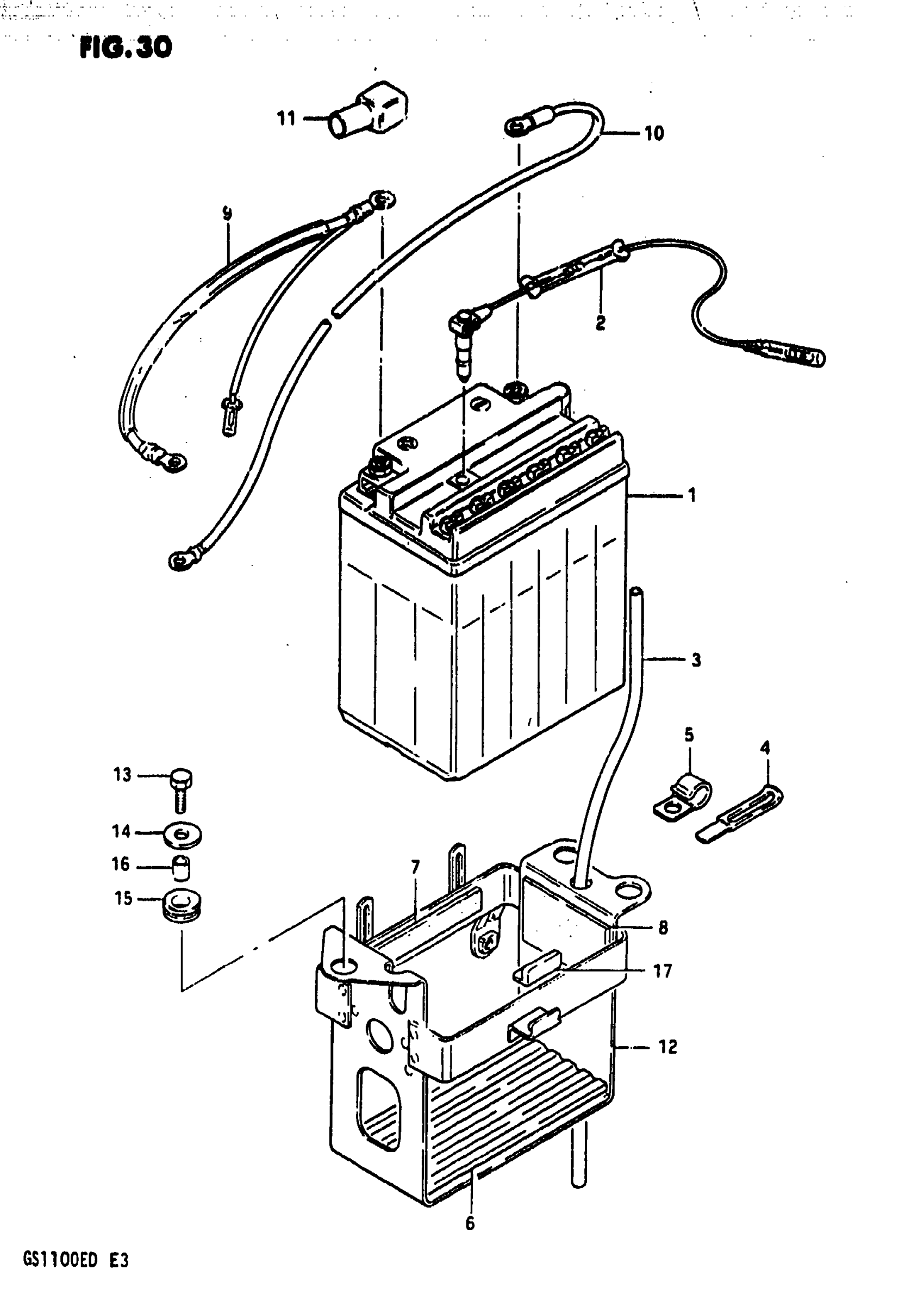

Suzuki GS1100E (1983) BATTERY Diagram

#

Description
Price

1

BATTERY (12V,14AH) | Includes Item(s) 2

33610-49230

Unavailable

2

SENSOR, BATTERY LEVEL

33617-49230

Unavailable

3

HOSE, BATTERY EXHAUST

33680-49000

Unavailable

4

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

5

CLAMP This part replaces 09403-09303.

09403-09003

$2.20

6

CUSHION

33651-31000

$18.02

7

PROTECTOR

33652-49000

$3.58

8

CUSHION, REAR FENDER REAR This part replaces 33652-08410.

33651-37000

$4.48

9

LEAD WIRE, (+)

33820-49000

Unavailable

10

LEAD WIRE, (-)

33850-03201

$9.94

11

CAP, TERMINAL

33624-45000

$4.58

12

HOLDER COMP,BAT This part replaces 41540-49500.

41540-08C00

Unavailable

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

15

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

16

SPACER

09180-06038

$1.98

17

CUSHION

47117-02400

$2.37
