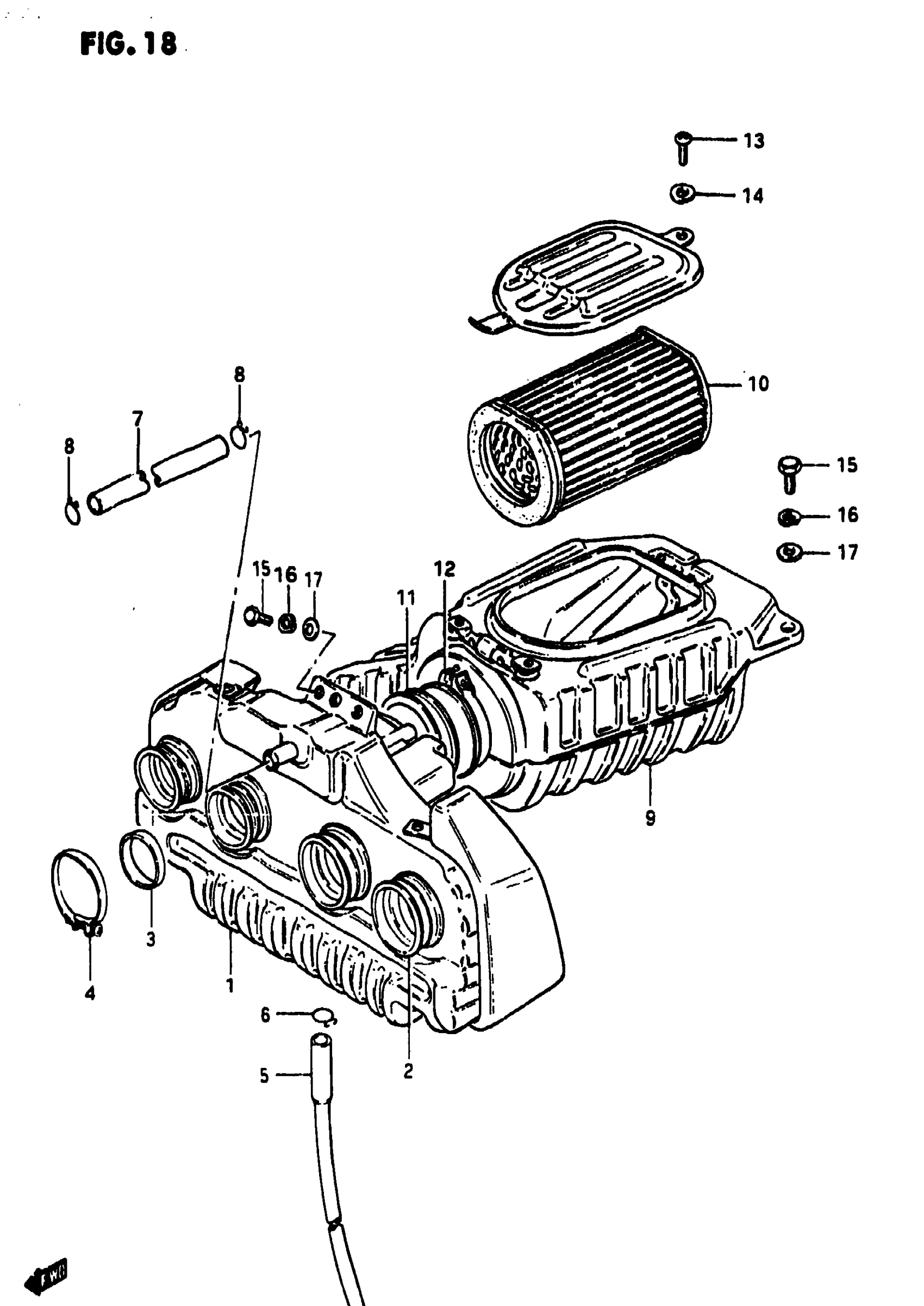

Suzuki GS1100E (1983) AIR CLEANER (MODEL Z) Diagram

#

Description
Price

1

CASE ASSY, FRONT | Includes Item(s) 2 - 8

13710-49500

Unavailable

2

HOSE, OUTLET This part replaces 13881-49020.

13881-49021

$14.53

3

RING

13885-47030

$8.30

4

CLAMP This part replaces 09402-64306.

09402-64203

$6.58

5

TUBE,DRAIN This part replaces 13870-00010.

13870-11459

$15.51

6

CLIP

09401-14301

$2.35

7

HOSE This part replaces 13851-00220.

09352-11154-600

$13.05

8

CLIP

09401-14301

$2.35

9

CASE SET, REAR | Includes Item(s) 10 - 14

13700-45810

Unavailable

10

FILTER

13780-45500

Unavailable

11

HOSE, JOINT

13795-49000

Unavailable

12

CLAMP This part replaces 13796-49000.

09402-70902

$5.64

13

SCREW This part replaces 02112-05128.

02112-05127

$1.97

14

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

15

BOLT This part replaces 01107-06208.

01500-06207

$2.28

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13
