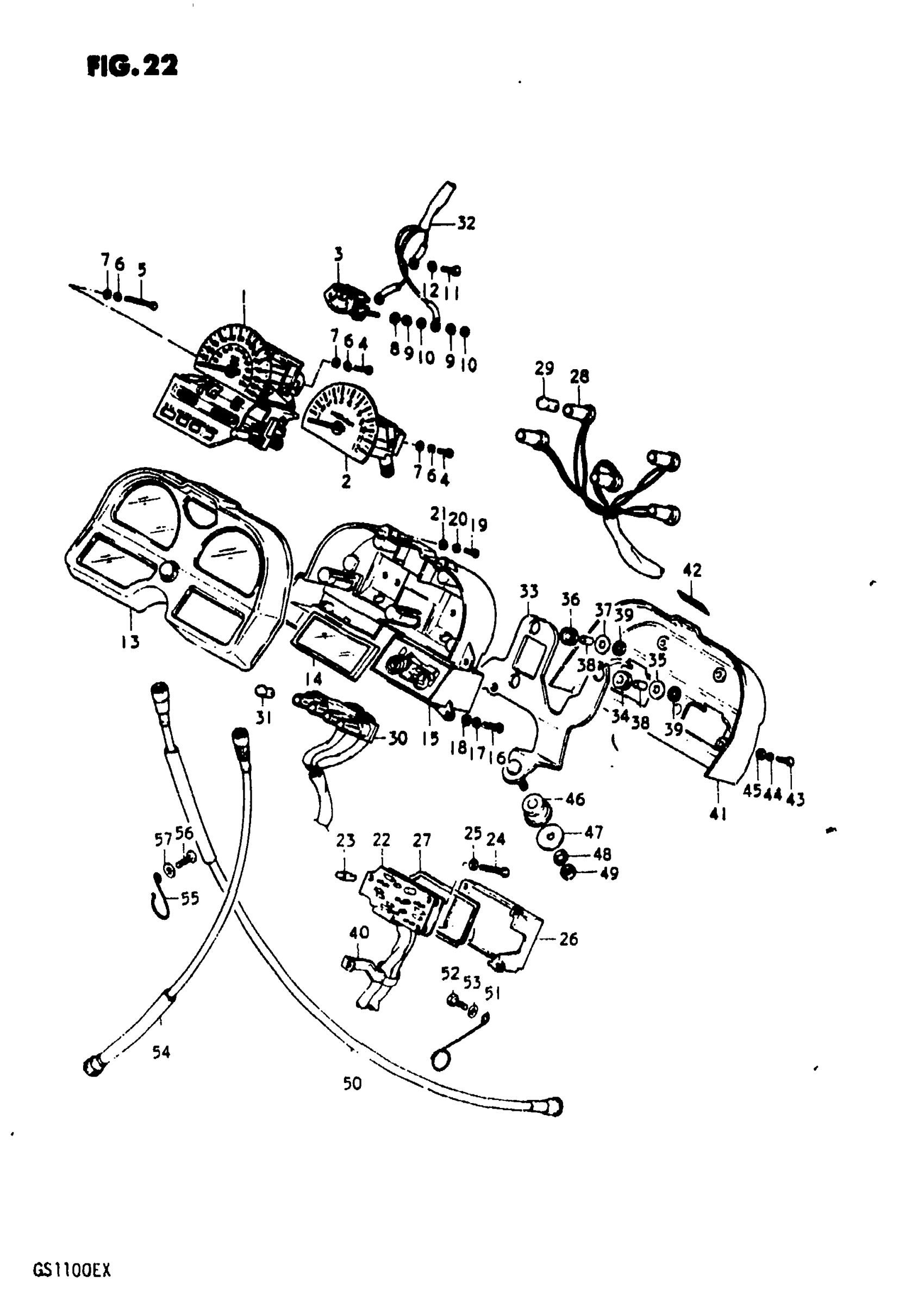

Suzuki GS1100E (1981) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER | MILE & KILO SCALE

34120-49230

Unavailable

2

TACHOMETER

34220-49230

Unavailable

3

FUEL METER

34320-49200

Unavailable

4

SCREW This part replaces 02112-03108.

02112-03107

$1.49

5

SCREW

02112-03258

Unavailable

6

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

7

WASHER This part replaces 08322-21038.

08322-01037

$1.93

8

WASHER This part replaces 08322-21048.

08322-01047

$1.86

9

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

10

NUT This part replaces 08310-22048.

08310-00047

$2.23

11

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

12

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

13

HOOD, METER | Includes Item(s) 14

34150-49200

Unavailable

14

GLASS, CHECK PANEL

36473-49200

Unavailable

15

CASE | MODEL T

34111-49200

Unavailable

15

CASE | MODEL X

34111-49201

Unavailable

16

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

17

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

18

WASHER This part replaces 08322-21048.

08322-01047

$1.86

19

SCREW This part replaces 02112-03128.

02112-0312B

Unavailable

20

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

21

WASHER This part replaces 08322-21038.

08322-01037

$1.93

22

CHECK PANEL UNIT | Includes Item(s) 23

36470-49200

Unavailable

23

BULB

09471-12074

Unavailable

24

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

25

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

26

LOWER CASE, CHECK PANEL

34152-49200

Unavailable

27

GASKET

34153-49200

Unavailable

28

SOCKET, METER | Includes Item(s) 29

34170-49200

Unavailable

29

BULB (12V, 3.4W)

09471-12001

$1.65

30

SOCKET, PILOT LAMP | MODEL T This part replaces 36323-49200.

36323-49201

Unavailable

30

SOCKET, PILOT LAMP | MODEL X; Includes Item(s) 31

36323-49201

Unavailable

31

BULB (12V, 3.4W)

09471-12001

$1.65

32

LEAD WIRE, FUEL METER

34378-49200

Unavailable

33

BRACKET | MODEL T This part replaces 34950-49200.

34950-49202

Unavailable

33

BRACKET | MODEL X

34950-49202

Unavailable

34

CUSHION (A)

34955-28010

$3.84

35

WASHER (5.5X16X1.2) This part replaces 34181-30520.

09160-05037

$1.49

36

CUSHION (B)

34189-49200

Unavailable

37

WASHER (B)

34181-49200

Unavailable

38

SPACER

34187-49200

Unavailable

39

NUT This part replaces 08310-11058.

08310-00057

$1.84

40

CLAMP | MODEL T This part replaces 34954-49200.

34954-49201

Unavailable

40

CLAMP | MODEL X

34954-49201

Unavailable

41

COVER, LOWER | MODEL T This part replaces 34193-49200.

34193-49201

Unavailable

41

COVER, LOWER | MODEL X; Includes Item(s) 42

34193-49201

Unavailable

42

EMBLEM

34157-49200

Unavailable

43

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

44

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

45

WASHER This part replaces 08322-21048.

08322-01047

$1.86

46

CUSHION This part replaces 34956-31000.

34956-31001

$4.37

47

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

48

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

49

NUT This part replaces 08310-12088.

08310-00087

$2.13

50

CABLE,SPEEDOMET This part replaces 34910-45410.

34910-45411

Unavailable

51

CLAMP

34938-37000

$3.73

52

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

53

WASHER This part replaces 08322-21068.

08322-01067

$2.13

54

CABLE ASSY,TACH | MODEL T This part replaces 34940-47030.

34940-47034

$23.49

54

CABLE ASSY,TACH | MODEL X This part replaces 34940-47031.

34940-47034

$23.49

55

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

Unavailable

56

SCREW This part replaces 02112-06128.

02112-06127

$1.84

57

WASHER This part replaces 08322-21068.

08322-01067

$2.13
