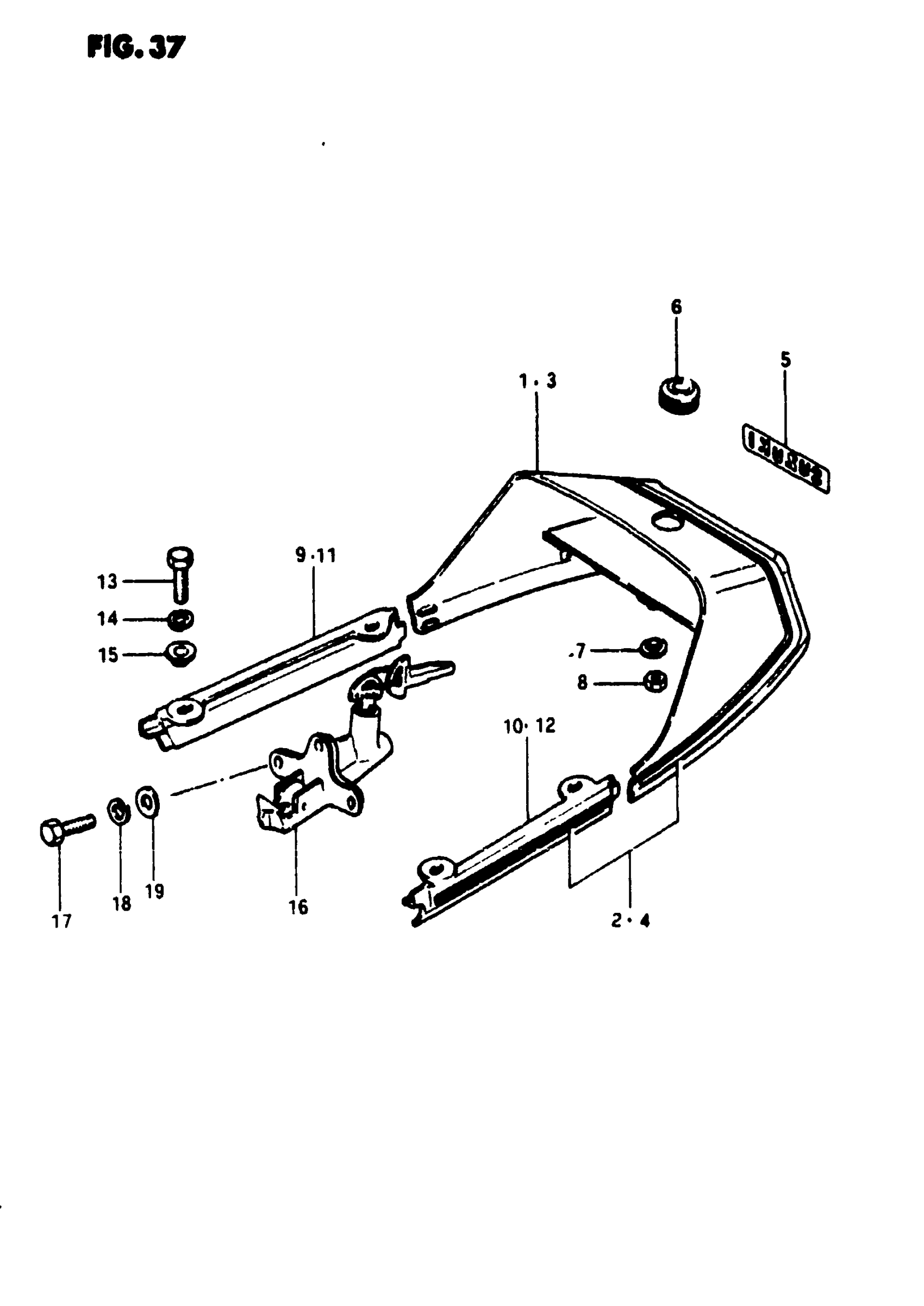

Suzuki GS1100E (1981) SEAT TAIL COVER (GS1100EX) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 45500-49230-08E.

45510-49202

Unavailable

2

TAPE SET

68160-49230-75F

Unavailable

3

COVER, SEAT TAIL (BLUE) | Includes Item(s) 4

45500-49230-08D

Unavailable

4

TAPE SET

68160-49230-75G

Unavailable

5

EMBLEM

68166-49200-998

Unavailable

6

GROMMET

45522-49200

$4.58

7

WASHER

09169-06016

$1.65

8

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

9

HOLDING SEAT RH This part replaces 45191-49200-08E.

45191-49200

Unavailable

10

MOLDING SEAT, L This part replaces 45192-49200-08E.

45192-49200

Unavailable

11

HOLDING SEAT RH This part replaces 45191-49200-08D.

45191-49200

Unavailable

12

MOLDING SEAT, L This part replaces 45192-49200-08D.

45192-49200

Unavailable

13

BOLT This part replaces 01107-06128.

01500-06127

$1.97

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER

09169-06016

$1.65

16

LOCK SET, SEAT This part replaces 95700-49821.

95700-49830

Unavailable

17

BOLT This part replaces 01107-06128.

01500-06127

$1.97

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26
