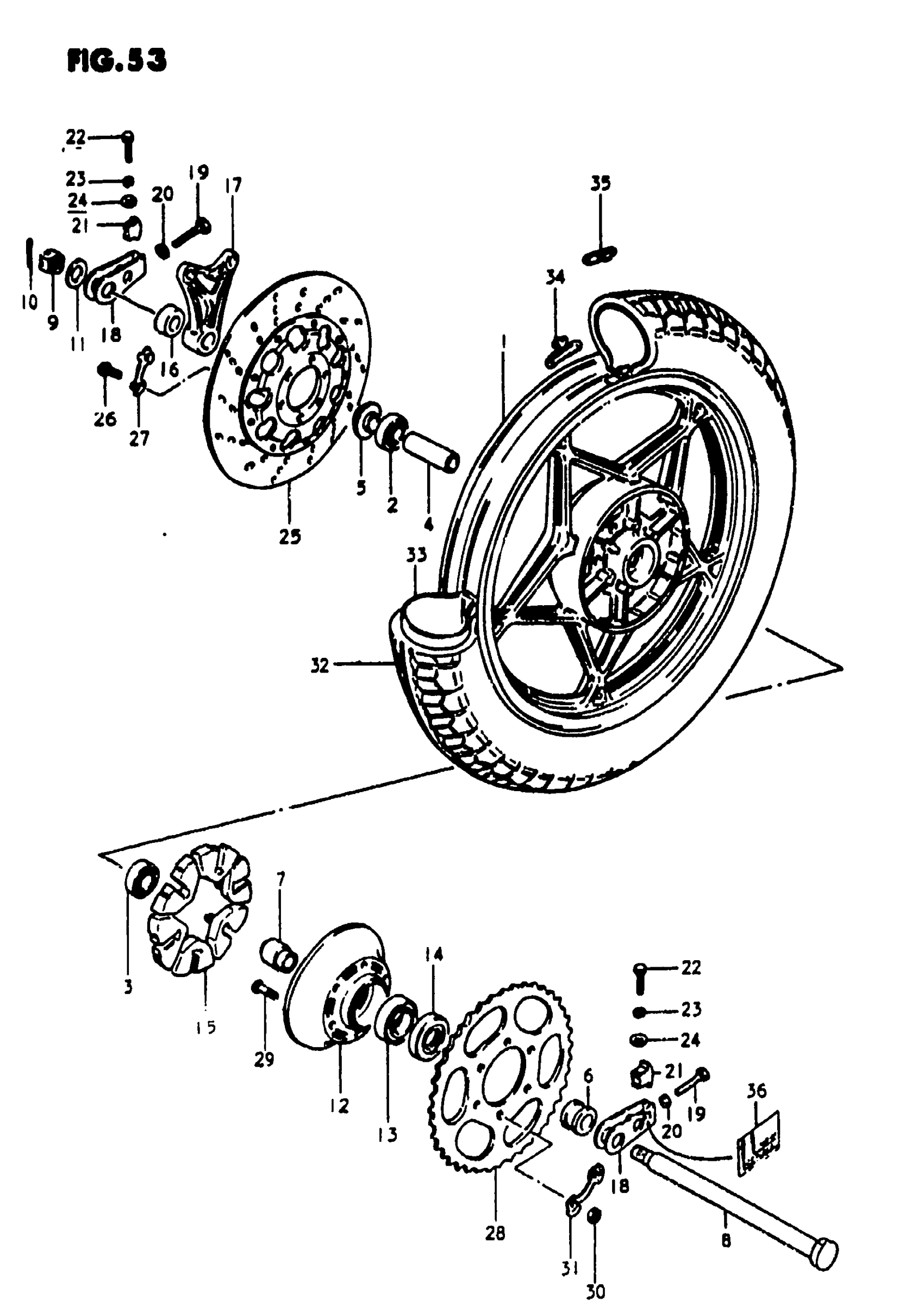

Suzuki GS1100E (1981) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (MT2,50x17) (BLACK | MODEL T WITH 55411-47001, NO.1 WITH55412-47001, NO.2 This part replaces 64111-49020.

64111-49001-12U

Unavailable

1

WHEEL, REAR (MT2,50x17) (BLACK | MODEL T ,X WITH 55411-45100, NO.1 WITH 55412-45100, NO.2 This part replaces 64111-49021.

64111-49001-12U

Unavailable

2

BEARING, RH

08133-62047

$28.61

3

BEARING, LH This part replaces 08153-62047.

09262-20042

$23.28

4

SPACER

09180-20062

$19.13

5

SPACER, AXLE, RH This part replaces 64740-45001.

64740-45002

Unavailable

6

SPACER, AXLE LH (20x33x28.3)

09180-20054

Unavailable

7

SPACER,RR HUB B This part replaces 64733-31000.

64733-3100V

Unavailable

8

AXLE,REAR This part replaces 64711-49000.

64711-4900V

Unavailable

9

NUT This part replaces 08314-31188.

08314-3118A

$5.16

10

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

11

WASHER (19x34x4)

09160-19008

Unavailable

12

DRUM, SPROCKET This part replaces 64611-31001.

64611-31003

Unavailable

13

BEARING, DRUM This part replaces 08113-63050.

09262-25073

$25.92

14

OIL SEAL

09285-33001

$13.27

15

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

$11.19

16

SPACER

09180-20060

Unavailable

17

BRACKET, REAR CARIPERS

69721-47011

Unavailable

18

ADJUSTER, CHAIN | MODEL T This part replaces 61410-31000.

61410-31001

$49.02

18

ADJUSTER, CHAIN | MODEL X

61410-31001

$49.02

19

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

20

NUT This part replaces 08310-12088.

08310-00087

$2.13

21

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

Unavailable

22

BOLT This part replaces 01107-08608.

01500-0860B

$3.49

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

WASHER This part replaces 08322-11088.

08322-01087

$2.13

25

DISK, REAR BRAKE

59210-18450

Unavailable

26

BOLT

09100-08094

$2.71

27

WASHER

09169-08016

$2.41

28

SPROCKET,REAR,N This part replaces 64511-49001.

64511-49002

Unavailable

29

BOLT This part replaces 09119-10002.

09105-10001

$2.87

30

NUT This part replaces 08310-12108.

08310-00107

$2.19

31

WASHER

09169-10007

Unavailable

32

TIRE (4.50V17) | BS

65100-49230

Unavailable

33

TUBE, INNER

65200-49010

Unavailable

34

BARANCER, NO.1 | (0~3)MODEL T

55411-47001

Unavailable

34

BARANCER, NO.2 | (0~3)FOR 64111-49020

55412-47001

Unavailable

35

BALANCER, WHEEL NO.2 | (0~3)MODEL T ,X This part replaces 55411-45100.

55412-17G00

$7.05

35

B, RANCER, NO.2 | (0~3)FOR 64111-49021

55412-45100

Unavailable

36

LABEL, CHAIN WEAR INDICATOR

68377-49000

Unavailable
