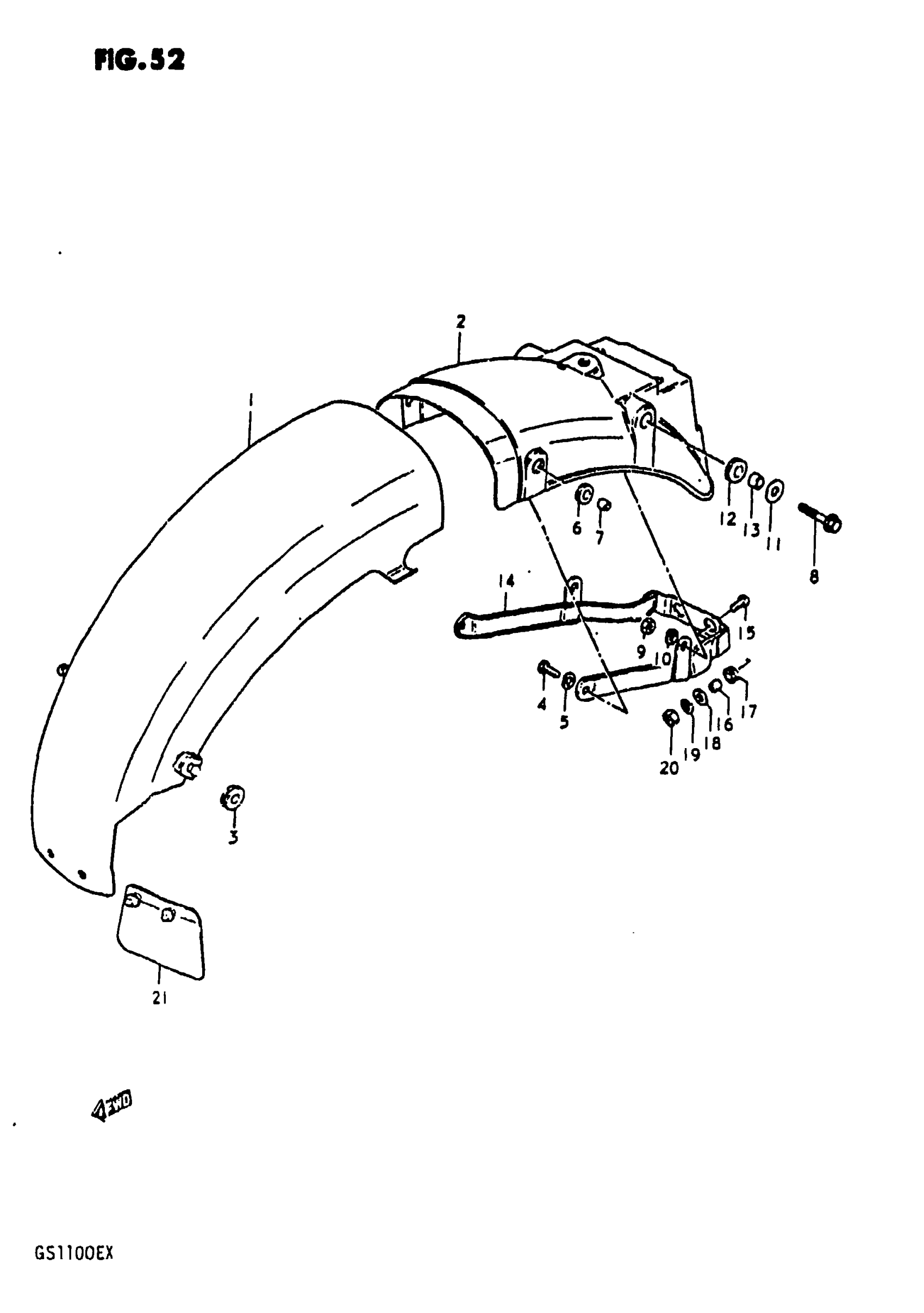

Suzuki GS1100E (1981) REAR FENDER Diagram

#

Description
Price

1

BODY,RR FENDER This part replaces 63112-49001.

63112-49004

Unavailable

2

BODY, REAR FENDER REAR

63113-49200-291

Unavailable

3

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

4

BOLT This part replaces 01107-06208.

01500-06207

$2.28

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

7

SPACER (6.1X9X7.5)

09180-06038

$1.98

8

BOLT This part replaces 01517-08358.

01550-08357

$3.49

9

NUT This part replaces 08310-12088.

08310-00087

$2.13

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

WASHER (8.5X26X1.2)

09160-08032

$2.30

12

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

13

SPACER This part replaces 09180-08021.

09180-08188

$2.56

14

REINFORCEMENT, REAR FENDER

63120-49000

Unavailable

15

SCREW

02142-06207

$1.49

16

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

17

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

18

WASHER This part replaces 09160-06012.

09160-06054

$1.62

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

.NUT This part replaces 08310-11068.

08310-00067

$2.13

21

MUD GUARD

63411-31900

Unavailable
