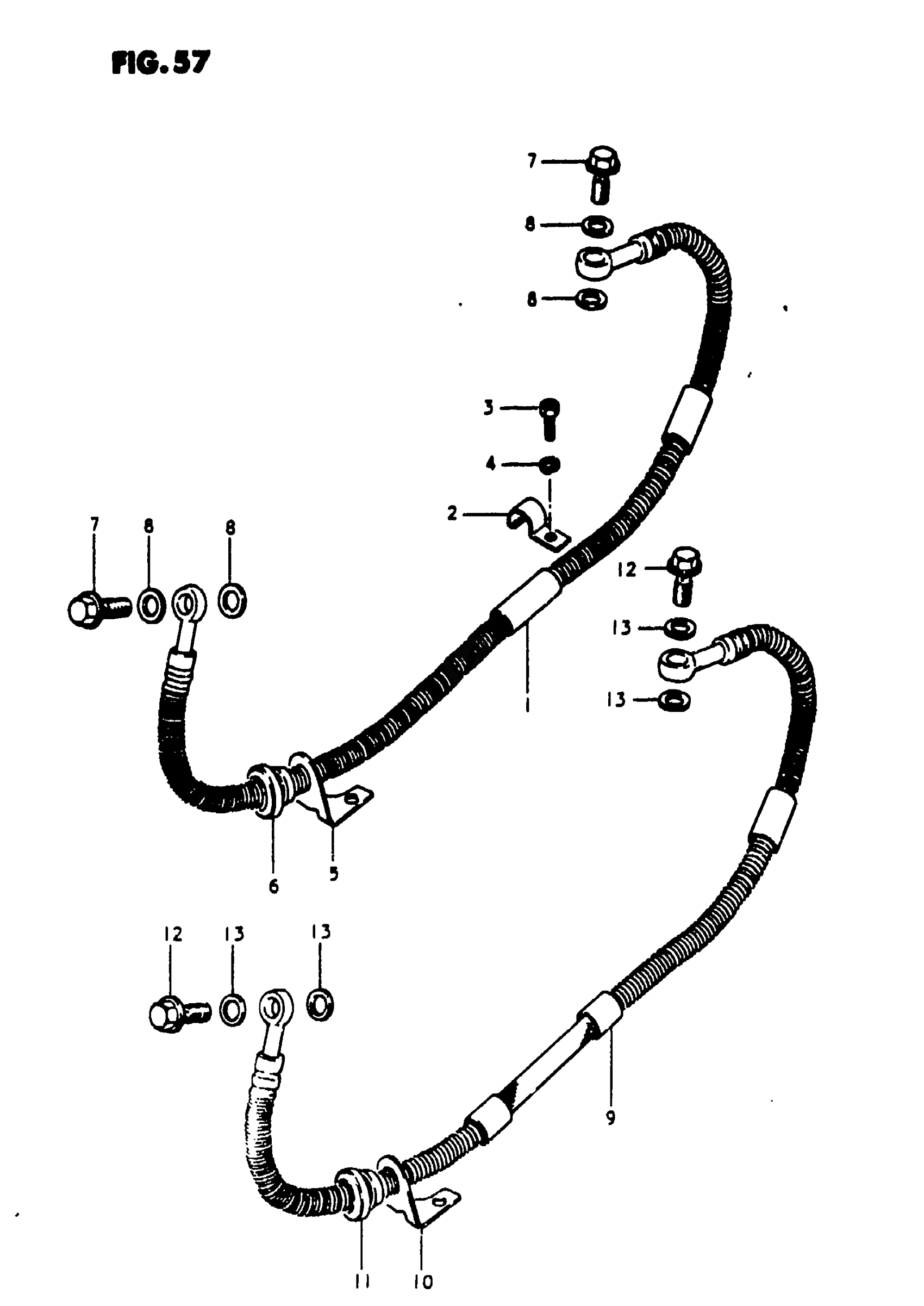

Suzuki GS1100E (1981) REAR BRAKE HOSE Diagram

#

Description
Price

1

HOSE, REAR BRAKE NO.1 | MODEL T, FOR 61100-49820

69480-49002

Unavailable

2

CLAMP

69268-49000

Unavailable

3

BOLT

09128-06013

$1.49

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

GUIDE, BRAKE HOSE

69243-47000

Unavailable

6

GROMMET,BRAKE H This part replaces 59244-36200.

59244-36201

$4.00

7

UNION This part replaces 09360-10007.

09360-10017

$3.42

8

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

9

HOSE, REAR BRAKE NO.1 | MODEL T, X FOR 61100-49821

69480-49003

Unavailable

10

GUIDE, BRAKE HOSE

69243-47000

Unavailable

11

GROMMET,BRAKE H This part replaces 59244-36200.

59244-36201

$4.00

12

UNION This part replaces 09360-10007.

09360-10017

$3.42

13

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84
