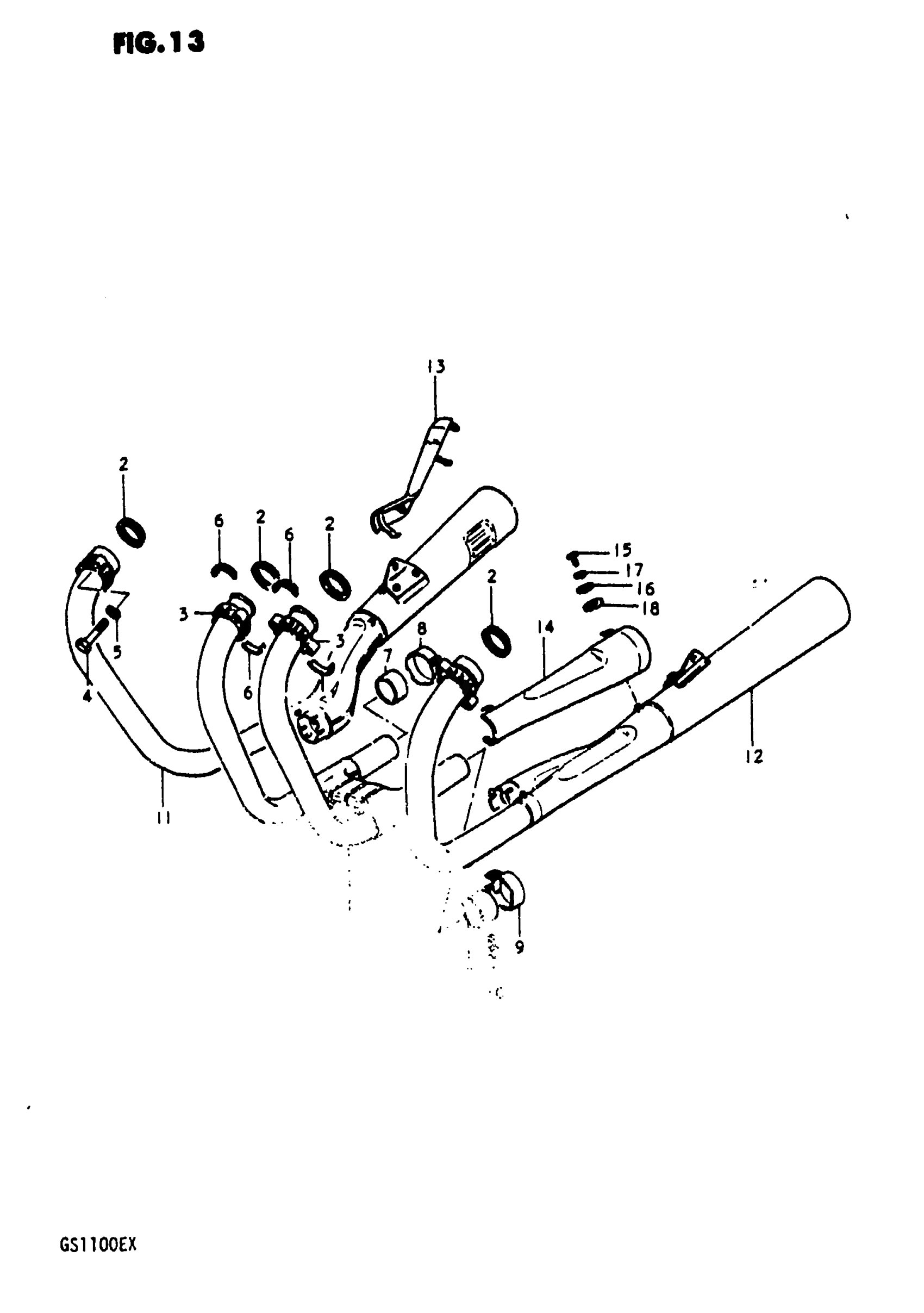

Suzuki GS1100E (1981) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST CENTER

14100-49200

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-11010.

14181-01D00

$7.11

3

CLAMP

14182-49000

Unavailable

4

BOLT This part replaces 01107-08356.

01500-0835B

$3.04

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

PLATE, EXHAUST PIPE

14155-49000

$5.02

7

CONNECTOR,MUFFL This part replaces 14771-49001.

14771-49010

$27.48

8

CLAMP, CONNECTOR RH

14459-49000

Unavailable

9

CLAMP, CONNECTOR LH

14469-49000

Unavailable

10

BOLT This part replaces 01517-08258.

01550-08257

$2.81

11

NO DESCRIPTION AVAILABLE This part replaces 14301-49200.

14301-49200-H01

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 14302-49200.

14302-49203-H01

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 14780-49200.

14780-49203

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL T,X This part replaces 14780-49201.

14780-49203

Unavailable

14

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 14790-49200.

14790-49203

Unavailable

14

NO DESCRIPTION AVAILABLE | MODEL T,X This part replaces 14790-49201.

14790-49203

Unavailable

15

SCREW This part replaces 02112-05108.

02112-05107

$1.49

16

WASHER This part replaces 08322-21058.

08322-01057

$2.13

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

18

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12
