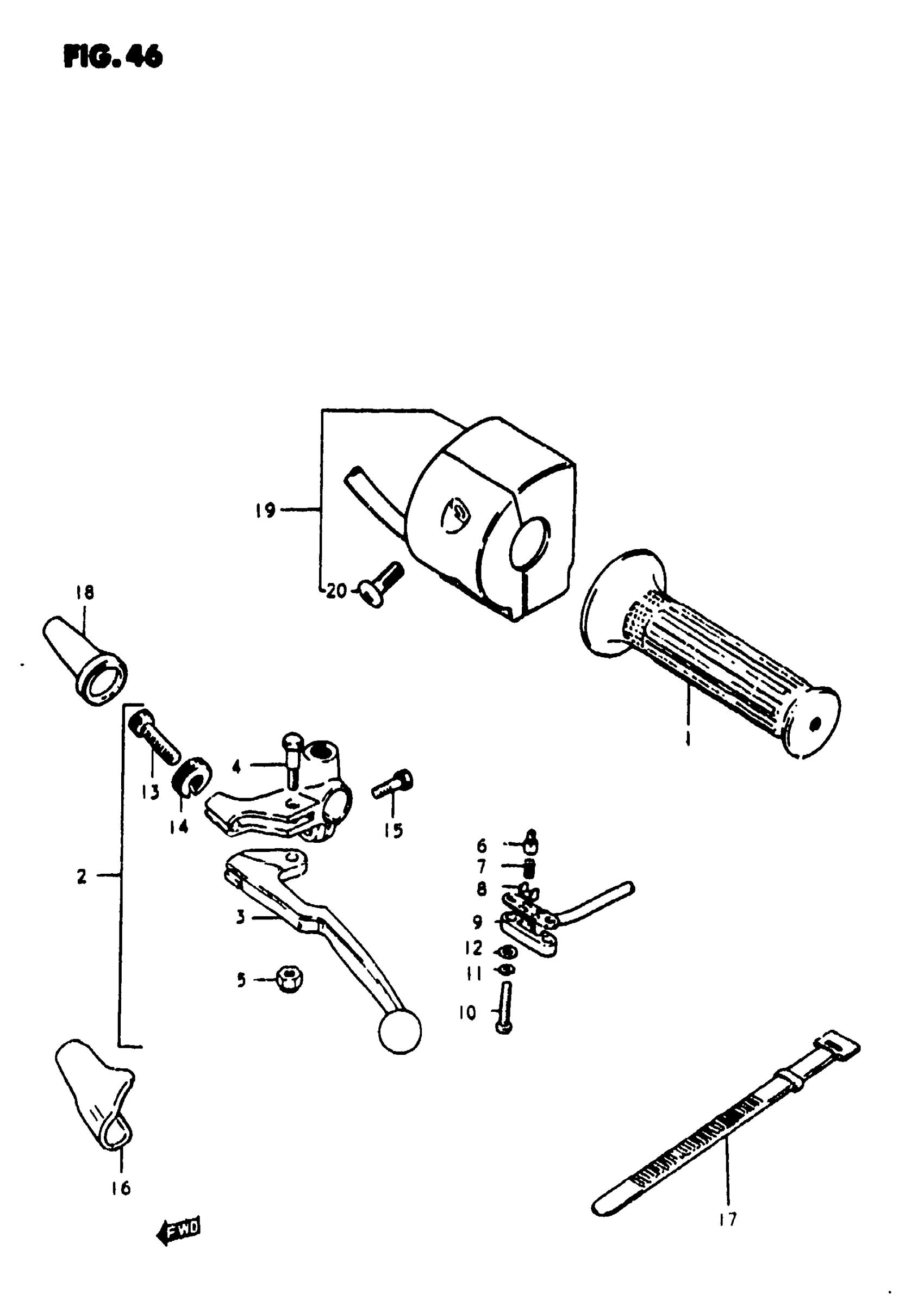

Suzuki GS1100E (1981) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH This part replaces 57211-45010.

57211-49510

Unavailable

2

LEVER ASSY,CLUT | Includes Item(s) 3 - 15 This part replaces 57500-49111.

57500-49301

Unavailable

3

LEVER, CLUTCH

57620-49111

$23.23

4

BOLT This part replaces 57431-11011.

57431-11013

$6.31

5

NUT This part replaces 08319-21088.

08319-2108A

$2.12

6

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

7

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

8

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

9

COVER

57481-33010

$5.84

10

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

11

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

12

WASHER This part replaces 08322-21038.

08322-01037

$1.93

13

ADJUSTER, CABLE

57441-11010

$5.62

14

NUT

57442-11010

$2.79

15

BOLT

57451-49100

Unavailable

16

COVER

57661-31000

$7.25

17

BAND (L:120)

09407-12402

$3.04

18

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

19

SWITCH ASSY,HAN | Includes Item(s) 20 This part replaces 37400-49230.

37400-45373

Unavailable

20

SCREW This part replaces 02112-05165.

02112-05164

$2.63
