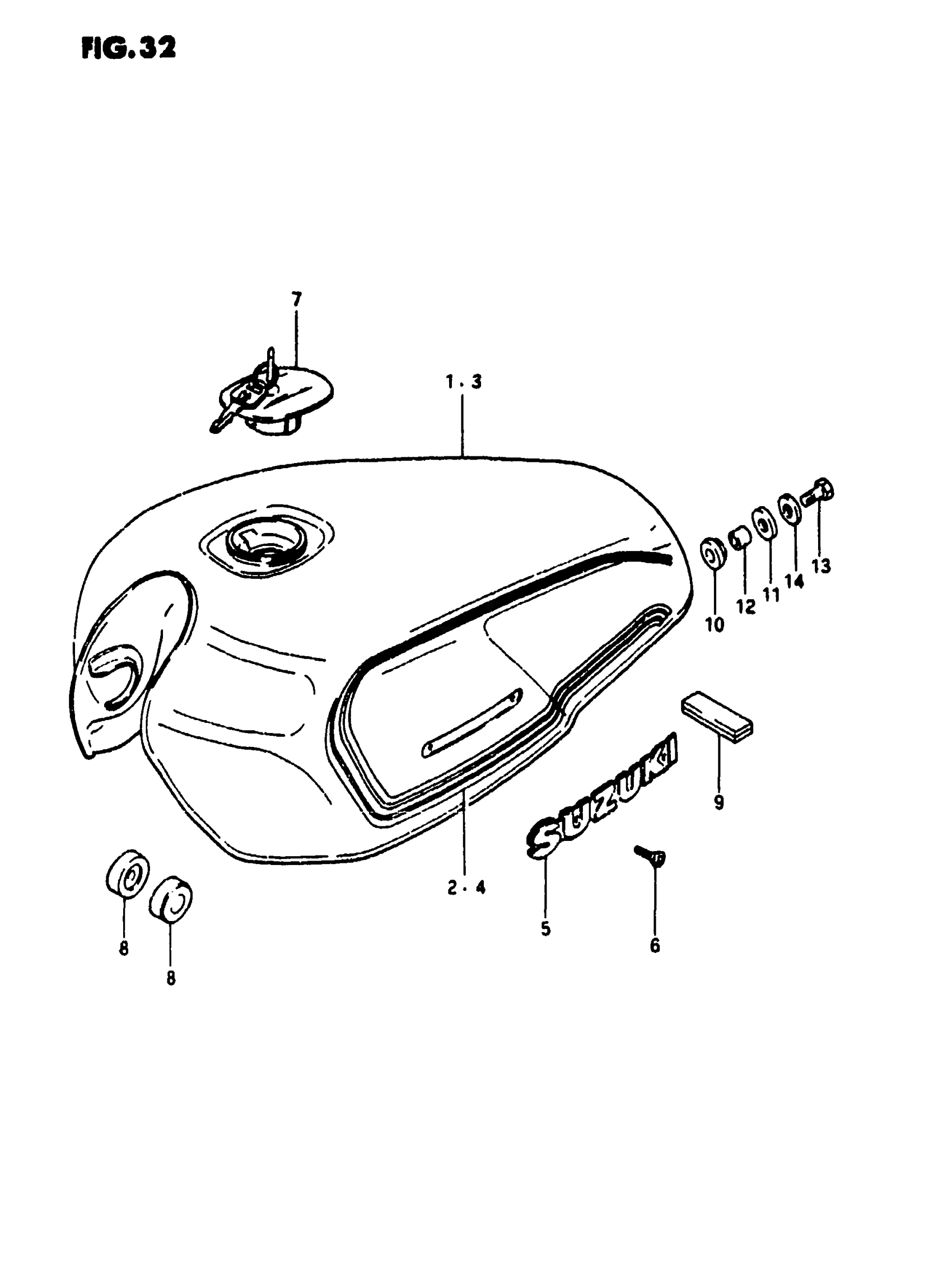

Suzuki GS1100E (1981) FUEL TANK (GS1100ET) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | TO: 44100-49211-737; Includes Item(s) 2 This part replaces 44100-49210-737.

44110-49223-13L

Unavailable

2

NO DESCRIPTION AVAILABLE | SEE BELOW This part replaces 68110-49210-72F.

68110-49211-72D

Unavailable

3

NO DESCRIPTION AVAILABLE | TO: 44100-49211-051; Includes Item(s) 4 This part replaces 44100-49210-05L.

44110-49223-13L

Unavailable

4

NO DESCRIPTION AVAILABLE | SEE BELOW This part replaces 68110-49210-72B.

68110-49211-72B

Unavailable

5

EMBLEM

68111-45010

$24.36

6

SCREW This part replaces 02132-03065.

02122-0306B

$2.26

7

CAP SET,FUEL TA This part replaces 44200-49701.

44200-49811

$144.42

8

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

9

CUSHION FUEL TA This part replaces 09329-01005.

09329-01008

$4.77

10

CUSHION, REAR NO.1

09320-12013

$2.60

11

CUSHION, REAR NO. 2

09320-12017

$2.18

12

SPACER

09180-08067

$2.41

13

BOLT This part replaces 01107-08308.

01500-08307

$3.04

14

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35
