1981 Suzuki GS1100E Fuel Cock Diagram

← All diagrams

Find the part on the Fuel Cock diagram for your 1981 Suzuki GS1100E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

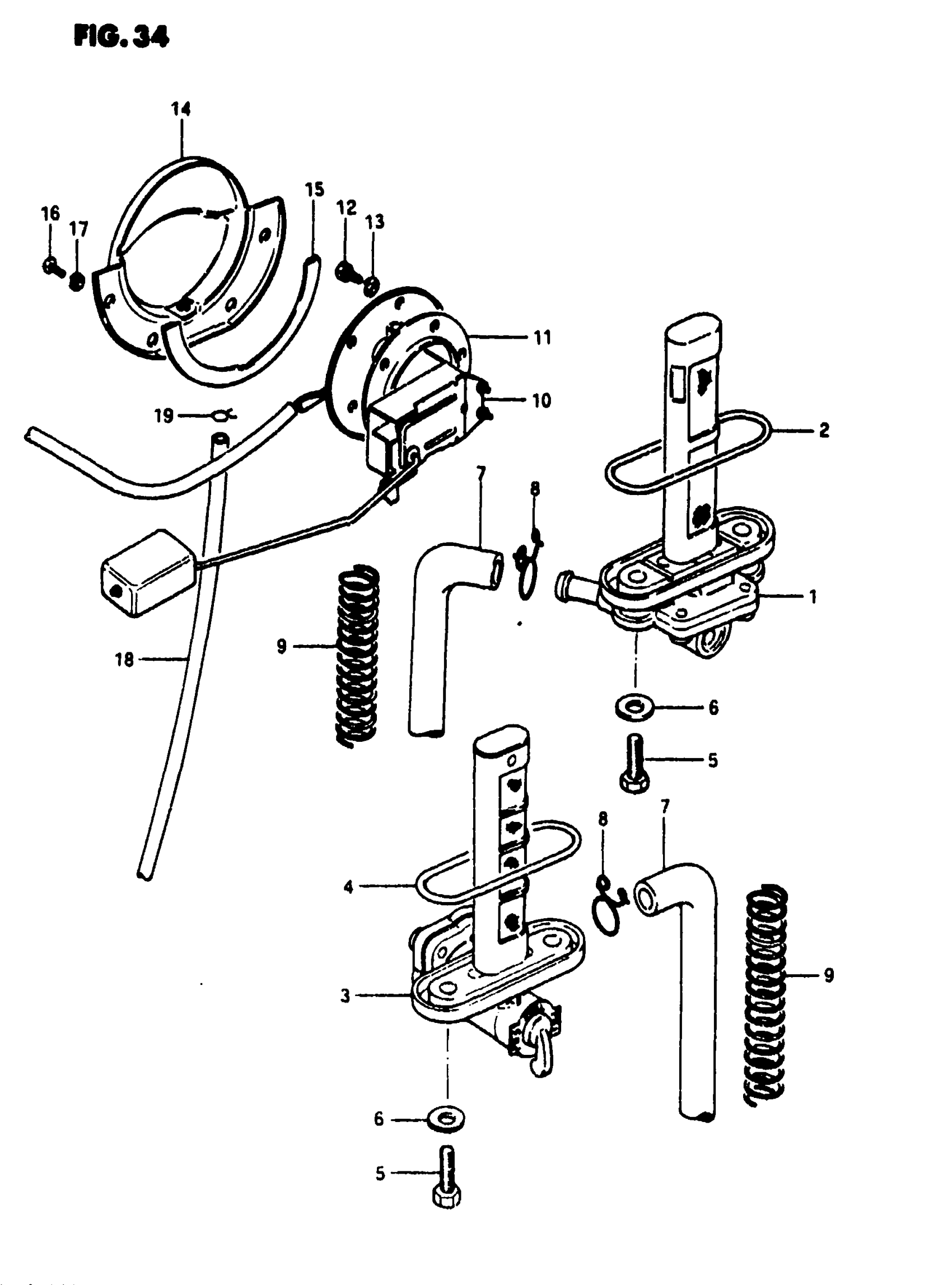

1981 Suzuki GS1100E Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COCK ASSY, FUEL | MODEL T; Includes Item(s) 2

44300-47270

1
Out of stock

2

GASKET | MODEL T This part replaces 44348-47270.

44348-47271

1
Out of stock

3

COCK ASSY FUEL | MODEL X; Includes Item(s) 4 This part replaces 44300-45470.

44300-45471

1
Out of stock

4

O RING | MODEL X This part replaces 44348-49170.

44348-49171

1
Out of stock

5

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

2
Out of stock

6

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

2
Out of stock

7

HOSE(7X10.2X200 | MODEL TMODEL X This part replaces 09343-07026.

09352-70104-00B

1
Out of stock

8

CLIP

09401-10403

2
Out of stock

9

SPRING This part replaces 09440-13017.

09440-13043

1
Out of stock

10

GAUGE ASSY, FUEL LEVEL | MODEL T This part replaces 34810-49200.

34810-49202

1
Out of stock

10

GAUGE ASSY, FUEL LEVEL | MODEL X; Includes Item(s) 11 This part replaces 34810-49201.

34810-49202

1
Out of stock

11

GASKET

34825-49001

1
Out of stock

12

BOLT This part replaces 01104-05108.

01500-0510B

5
Out of stock

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

5
Out of stock

14

PLATE This part replaces 34885-49002.

34885-49005

1
Out of stock

15

GASKET,FUEL DRA This part replaces 34888-49000.

34888-49001

1
Out of stock

16

4

$1.55

In stock

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

4
Out of stock

18

HOSE This part replaces 09343-05165.

09352-50005-00B

1
Out of stock

19

CLIP

09401-08402

1
Out of stock
