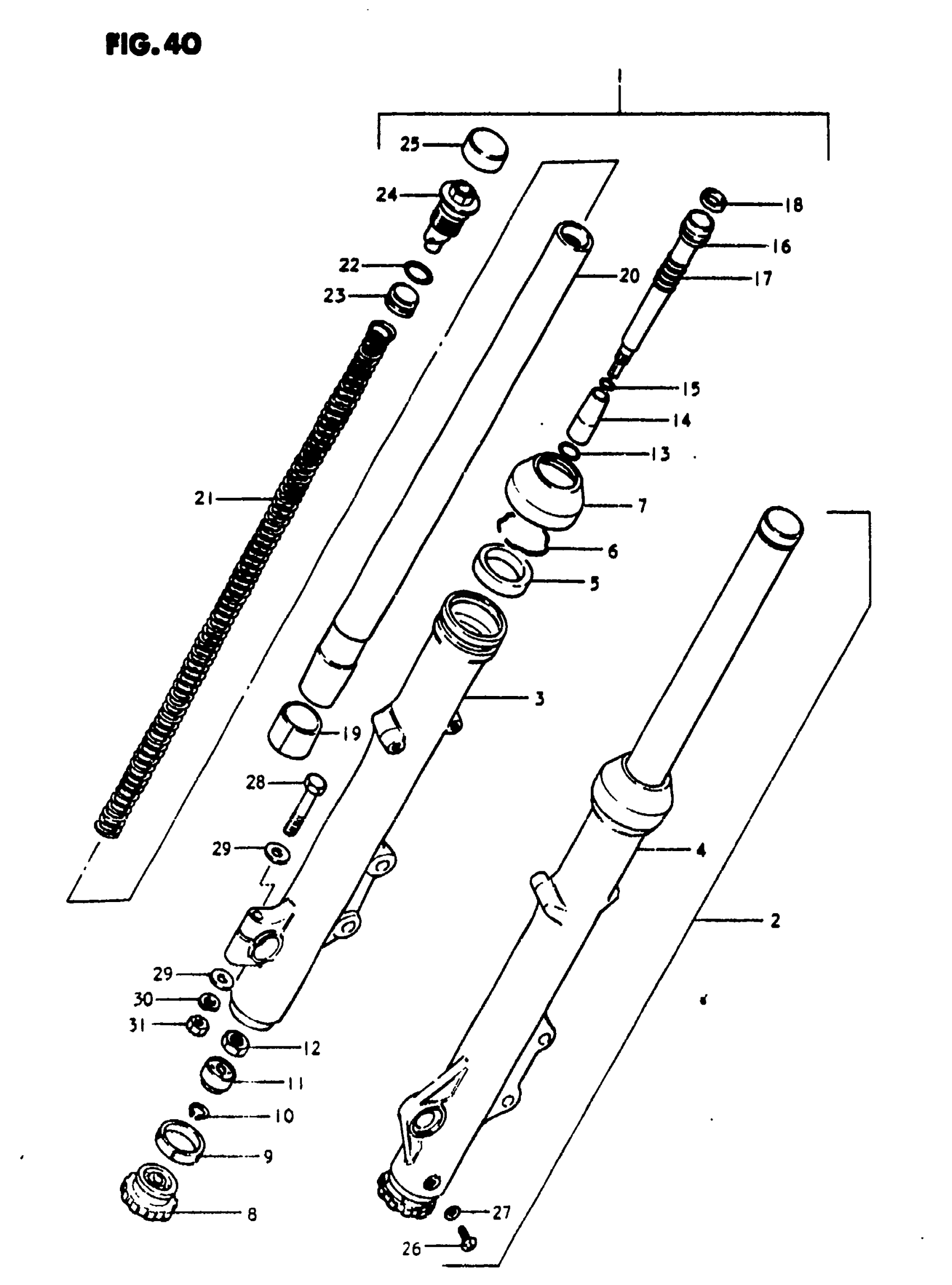

Suzuki GS1100E (1981) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-49200

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 31

51104-49200

Unavailable

3

OUTER TUBE, RH

51130-49200

Unavailable

4

OUTER TUBE, LH

51140-49200

Unavailable

5

SEAL, OIL This part replaces 51153-49000.

51153-08C20

$20.47

6

RING, OIL SEAL STOPPER

51156-40301

$5.05

7

DUST SEAL

51173-49002

$16.96

8

HANDLE

51286-49200

Unavailable

9

RING

51287-49200

Unavailable

10

CIRCLIP

51285-49200

Unavailable

11

DETENT

51284-49200

Unavailable

12

NUT

51147-49200

Unavailable

13

O RING

51148-49200

Unavailable

14

PIECE, OIL LOCK

51195-49200

Unavailable

15

O RING This part replaces 51199-49200.

51435-49200

Unavailable

16

CYLINDER

51146-49200

Unavailable

17

SPRING

51177-49200

Unavailable

18

RING, PISTON

51196-49000

$7.78

19

SLIDE METAL

51121-49200

$19.48

20

INNER TUBE

51110-49200

Unavailable

21

SPRING

51171-49200

Unavailable

22

O RING,FORK SPR This part replaces 51117-45110.

09280-22011

$3.41

23

FREE PISTON

51172-45110

Unavailable

24

CAP

51351-49200

Unavailable

25

CAP, RUBBER This part replaces 51189-45110.

51189-49300

$9.48

26

SCREW This part replaces 02112-04088.

02112-04087

$1.49

27

GASKET

51183-03010

$2.07

28

BOLT This part replaces 01107-08508.

01500-08507

$3.05

29

WASHER This part replaces 08322-21088.

08322-01087

$2.13

30

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

31

NUT This part replaces 08310-12088.

08310-00087

$2.13
