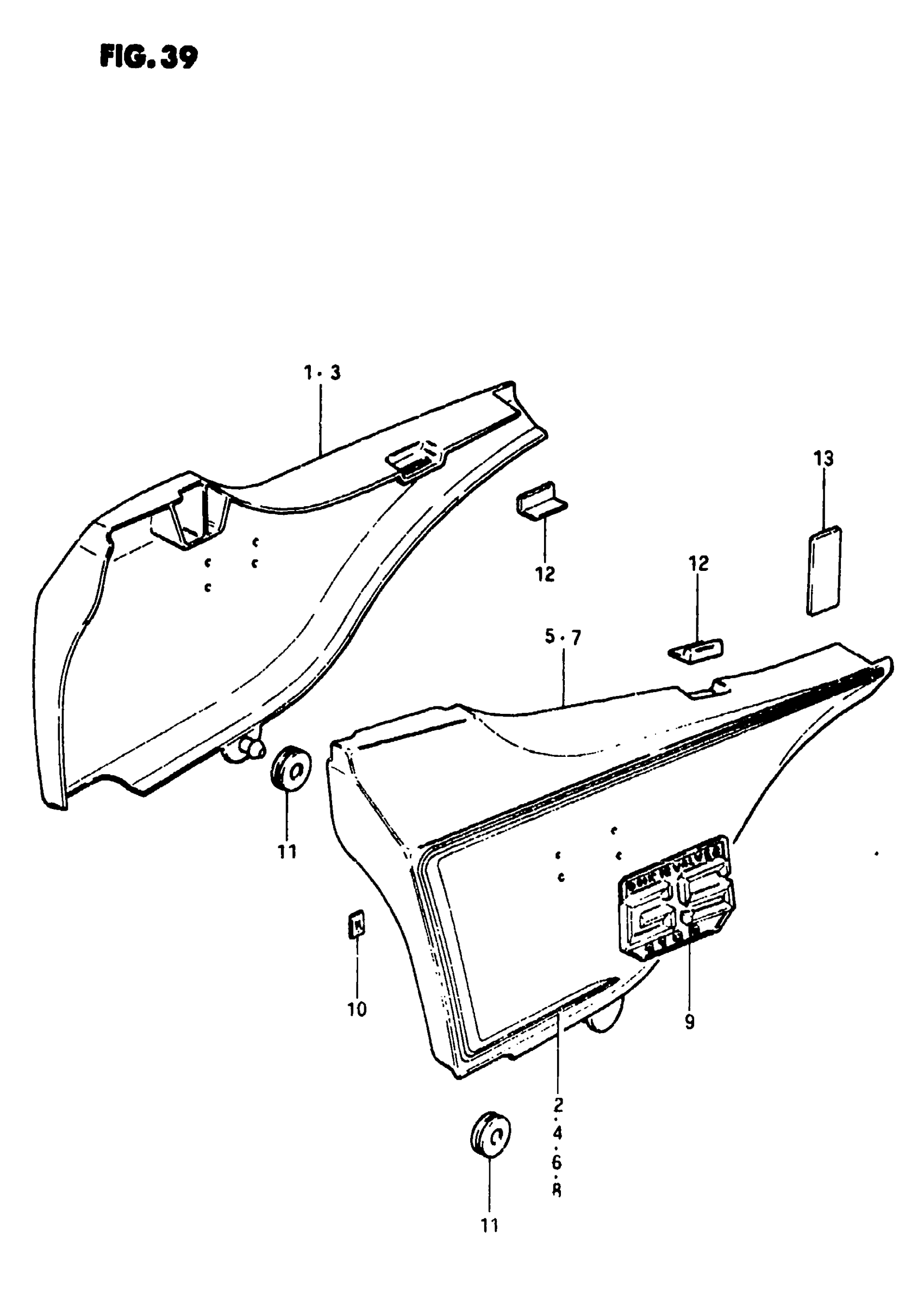

Suzuki GS1100E (1981) FRAME COVER (GS1100EX) Diagram

#

Description
Price

1

COVER SET FRAME | Includes Item(s) 2 This part replaces 47101-49810-08E.

47111-49200

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 68136-49230-75F.

68136-49Z01-75F

Unavailable

3

COVER SET FRAME | Includes Item(s) 4 This part replaces 47101-49810-08D.

47111-49200

Unavailable

4

TAPE, RH

68136-49230-75G

Unavailable

5

COVER,FRAME LH | Includes Item(s) 6 This part replaces 47201-49810-08E.

47211-49200

Unavailable

6

TAPE, LH

68146-49230-75F

Unavailable

7

COVER,FRAME LH | Includes Item(s) 8 This part replaces 47201-49810-08D.

47211-49200

Unavailable

8

TAPE, LH

68146-49230-75G

Unavailable

9

EMBLEM

68131-49200

Unavailable

10

NUT

09148-03002

$2.15

11

CUSHION

09320-08018

$3.04

12

CUSHION

47117-02400

$2.37

13

CUSHION

47113-49200

Unavailable
