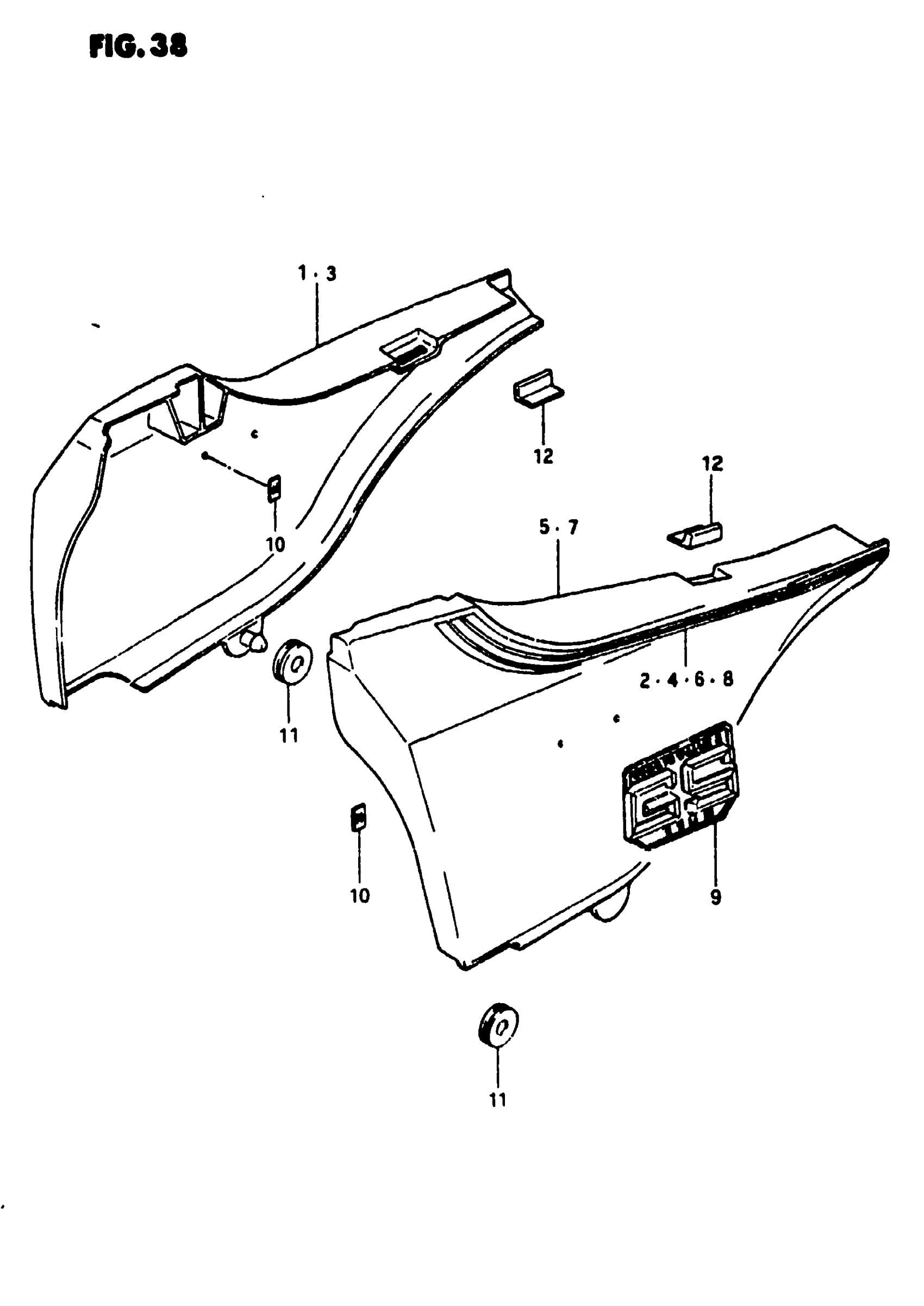

Suzuki GS1100E (1981) FRAME COVER (GS1100ET) Diagram

#

Description
Price

1

COVER SET FRAME | Includes Item(s) 2 This part replaces 47100-49880-737.

47111-49200

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 68136-49210-72F.

68136-49210-72D

Unavailable

3

COVER SET FRAME | Includes Item(s) 4 This part replaces 47100-49880-05L.

47111-49200

Unavailable

4

TAPE, RH

68136-49210-72B

Unavailable

5

COVER,FRAME LH | Includes Item(s) 6 This part replaces 47200-49880-737.

47211-49200

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 68146-49210-72F.

68146-49210-72D

Unavailable

7

COVER,FRAME LH | Includes Item(s) 8 This part replaces 47200-49880-05L.

47211-49200

Unavailable

8

TAPE, LH

68146-49210-72B

Unavailable

9

EMBLEM

68131-49200

Unavailable

10

NUT

09148-03002

$2.15

11

CUSHION

09320-08018

$3.04

12

CUSHION

47117-02400

$2.37
