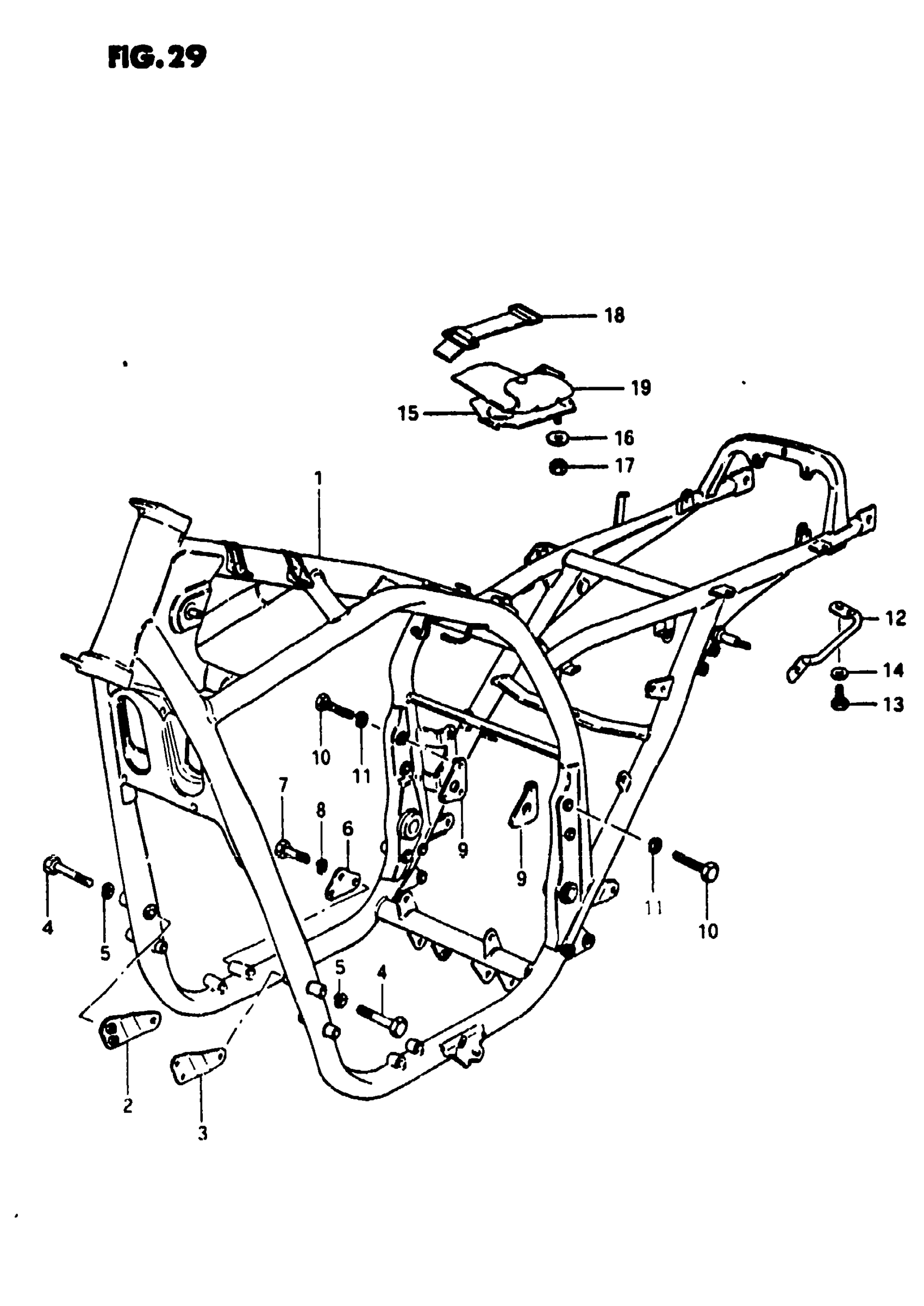

Suzuki GS1100E (1981) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL T

41100-49200-019

Unavailable

1

FRAME (BLACK) | MODEL X

41100-49201-019

Unavailable

2

PLATE, NO.1 RH (BLACK)

41910-49211-019

Unavailable

3

PLATE, NO.1 LH (BLACK)

41920-49211-019

Unavailable

4

BOLT This part replaces 01107-08658.

01500-0865B

$3.49

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

PLATE, NO.2 (SILVER) This part replaces 41921-49000-019.

41921-49000-13L

Unavailable

7

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

8

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

9

PLATE, NO.3 (SILVER) This part replaces 41940-49000-019.

41940-49000-13L

Unavailable

10

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

GRIP, FRAME HANDLE This part replaces 41610-49201.

41610-49202

Unavailable

12

GRIP, FRAME HANDLE

41610-49202

Unavailable

13

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

14

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15

HOLDER, TOOL This part replaces 41550-49200.

41550-49201

$16.00

16

WASHER This part replaces 09160-06007.

09160-06084

$1.78

17

.NUT This part replaces 08310-11068.

08310-00067

$2.13

18

BAND This part replaces 09462-00072.

09462-00094

$3.16

19

TOOL ASSY This part replaces 09800-00812.

09800-21068

Unavailable
