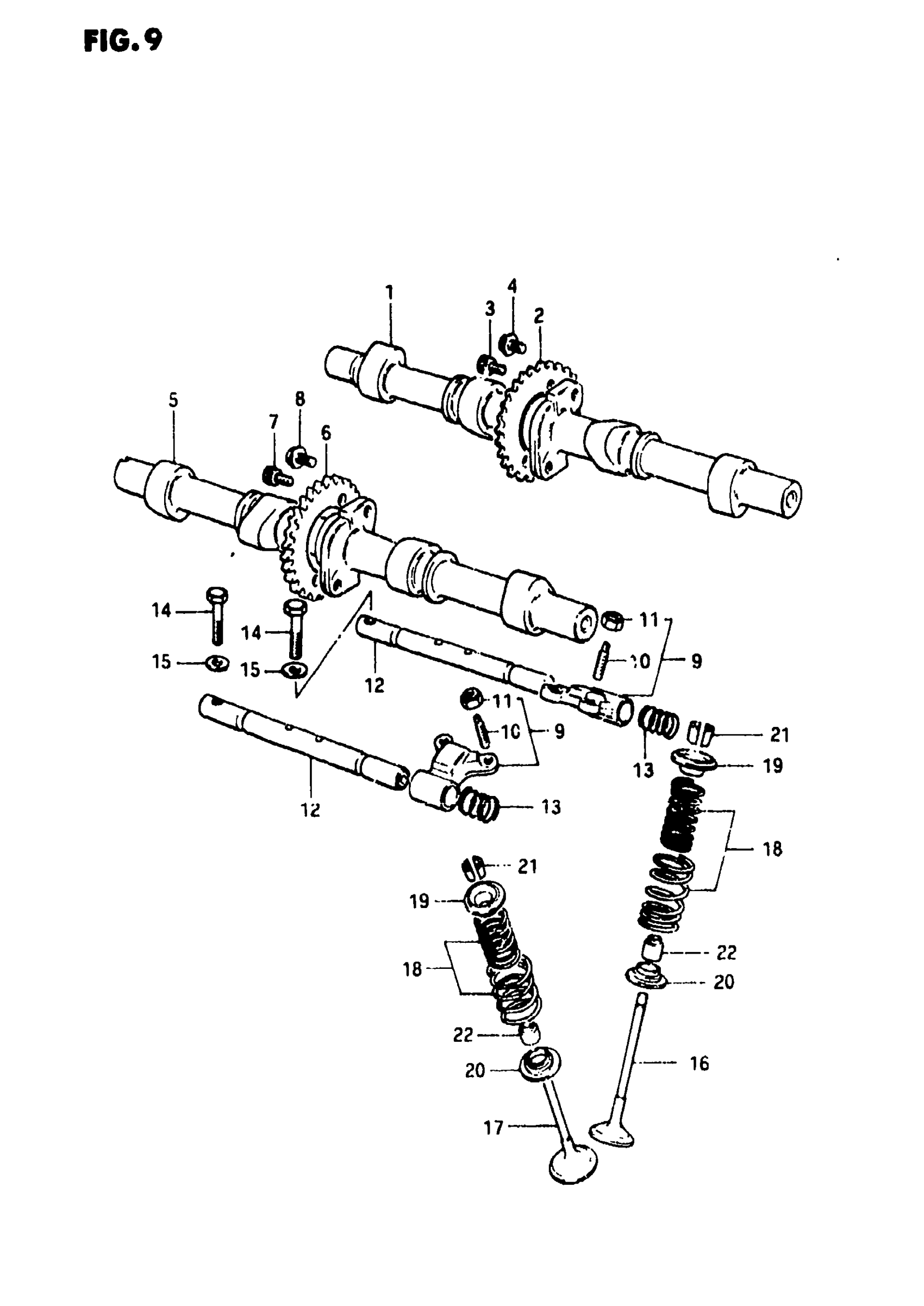

Suzuki GS1100E (1981) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE | 6 SCREW This part replaces 12711-49200.

12700-49810

Unavailable

1

CAM SHAFT, INTAKE | 7 SCREW This part replaces 12711-49201.

12700-49810

Unavailable

2

SPROCKET, INTAKE (NT:30) | #6

12741-45110

Unavailable

2

SPROCKET, INTAKE (NT:30) | #7

12741-45111

Unavailable

3

BOLT, NO.3 | 6 SCREW This part replaces 09106-06024.

07130-0610B

$3.21

4

BOLT | 7 SCREW

09103-07001

$2.43

5

CAM SHAFT, EXHAUST | 6 SCREW This part replaces 12721-45400.

12700-45820

Unavailable

5

CAM SHAFT, EXHAUST | 7 SCREW This part replaces 12721-45401.

12700-45820

Unavailable

6

SPROCKET, EXHAUST (NT:30) | #6

12751-47001

Unavailable

6

SPROCKET, EXHAUST (NT:30) | #7

12751-47002

Unavailable

7

BOLT, NO.3 | 6 SCREW This part replaces 09106-06024.

07130-0610B

$3.21

8

BOLT | 7 SCREW

09103-07001

$2.43

9

ARM, VALVE ROCKER | Includes Item(s) 10 - 11 This part replaces 12840-49200.

12840-49201

$81.62

10

SCREW, TAPPET ADJUSTING This part replaces 12842-49200.

12842-49201

$6.63

11

.NUT,TAPPET ADJUSTING This part replaces 12843-49200.

12843-27A00

$2.94

12

SHAFT, VALVE ROCKER ARM This part replaces 12860-49200.

12860-31300

Unavailable

13

SPRING

09440-13014

$2.45

14

BOLT, REAR | MODEL T This part replaces 09100-06093.

01500-06307

$2.48

14

BOLT, REAR | MODEL X This part replaces 01707-06306.

01500-06307

$2.48

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

VALVE, INTAKE

12911-49220

$37.40

17

VALVE, EXHAUST

12912-49220

$64.30

18

SPRING SET, VALVE This part replaces 12900-49810.

12920-49210

Unavailable

19

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

20

SEAT, VALVE SPRING This part replaces 12933-49200.

12933-49201

$5.84

21

COTTER, VALVE

12932-49200

$2.28

22

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70
