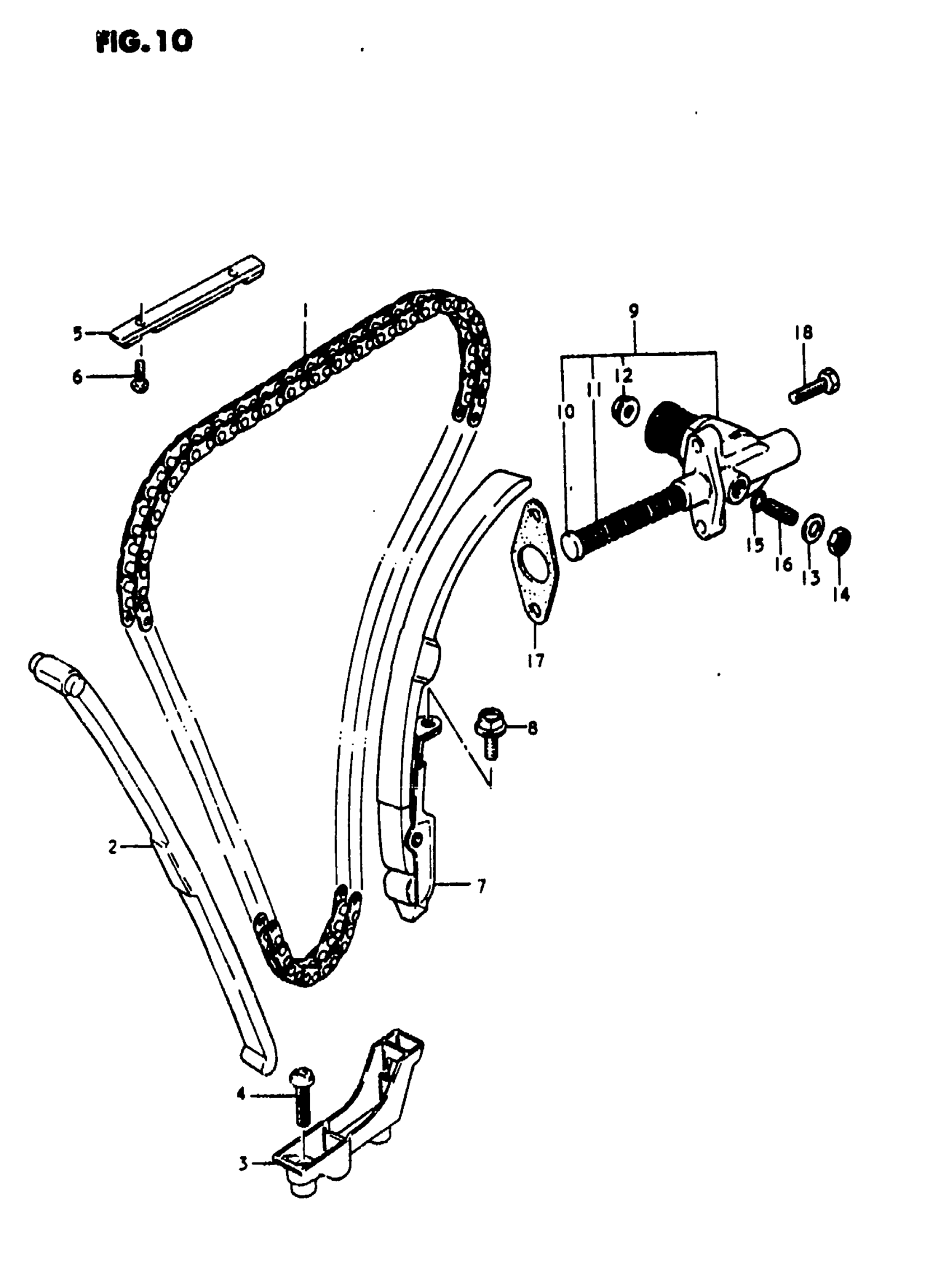

Suzuki GS1100E (1981) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE (120L) This part replaces 12760-49010.

12760-45040

$149.60

2

GUIDE,CAM CHAIN This part replaces 12771-45052.

12771-45053

$40.00

3

HOLDER, GUIDE

12776-49000

Unavailable

4

SCREW This part replaces 02112-05128.

02112-05127

$1.97

5

GUIDE, CAM CHAIN

12782-47040

Unavailable

6

SCREW This part replaces 02112-05128.

02112-05127

$1.97

7

TENSIONER,CAM C This part replaces 12810-49250.

12810-49251

Unavailable

8

BOLT M8X16 This part replaces 01517-08168.

01550-08167

$2.85

9

ADJUSTER ASSY,T | Includes Item(s) 10 - 16 This part replaces 12830-47001.

12830-0930V

Unavailable

10

PUSH ROD

12833-47001

Unavailable

11

SPRING

09440-12017

$2.45

12

SCREW

12838-45001

$8.42

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13

14

NUT This part replaces 08310-12088.

08310-00087

$2.13

15

.O RING (D:1.9,ID:5.7) This part replaces 09280-06003.

09280-06005

$1.49

16

NUT This part replaces 09159-06017.

08319-31067

$2.03

17

GKT,TENSIONER A This part replaces 12837-47000.

12837-47010

$4.22

18

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47
