1980 Suzuki GS1100-LT Transmission Diagram

← All diagrams

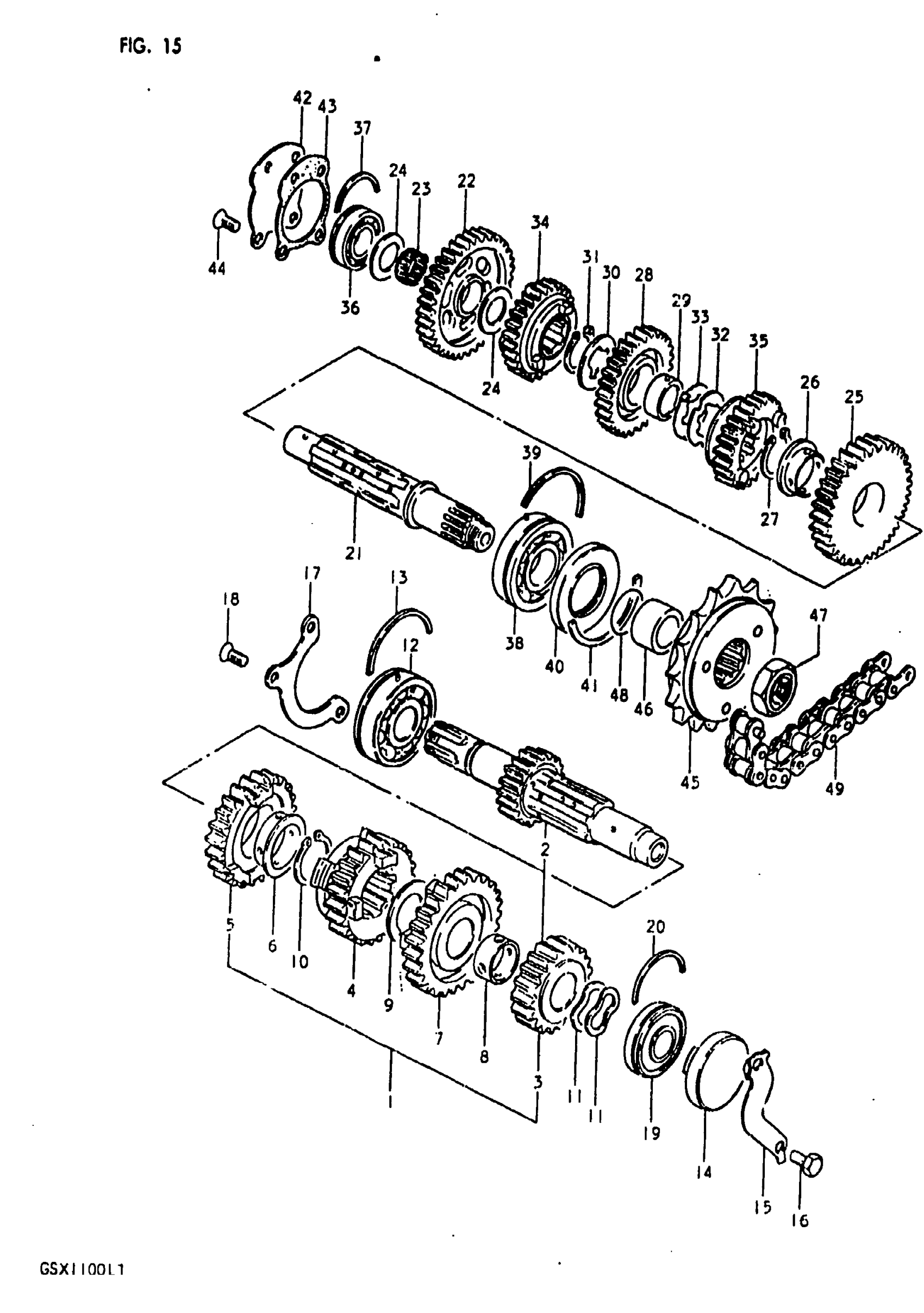

Find the part on the Transmission diagram for your 1980 Suzuki GS1100-LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Suzuki GS1100-LT Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 10 This part replaces 24120-49200.

24120-49202

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 24100-49820.

24121-49202

1
Out of stock

3

GEAR, 2ND DRIVE (NT:18) This part replaces 24221-49200.

24221-49202

1
Out of stock

4

GEAR, 3RD DRIVE (NT:21)

24231-49200

1
Out of stock

5

GEAR, 4TH DRIVE (NT:24) This part replaces 24241-49200.

24241-00A00

1
Out of stock

6

BUSH

09301-28001

1
Out of stock

7

GEAR, 5TH DRIVE (NT:26) This part replaces 24251-49200.

24251-00A00

1
Out of stock

8

BUSH, 1ST DRIVEN This part replaces 09300-22005.

24312-02F00

1
Out of stock

9

WASHER

08211-22321

1
Out of stock

10

CIRCLIP This part replaces 08331-11289.

08331-31289

1
Out of stock

11

WAVE WASHER

09164-20004

2
Out of stock

12

BEARING, LH This part replaces 09262-25051.

09262-25105

1
Out of stock

13

C RING This part replaces 09390-62006.

09390-62012

1
Out of stock

14

PLUG, COUNTERSHAFT LH

09241-47004

1
Out of stock

15

HOLDER

23117-45000

1
Out of stock

16

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

17

HOLDER, BEARING

24741-45000

1
Out of stock

18

SCREW This part replaces 02122-06168.

02122-06167

3
Out of stock

19

BEARING, LH

09262-20044

1
Out of stock

20

C RING

09390-47003

1
Out of stock

21

NO DESCRIPTION AVAILABLE This part replaces 24131-49200.

24131-49202

1
Out of stock

22

GEAR, 1ST DRIVEN (NT:35)

24311-49200

1
Out of stock

23

BEARING

09263-20018

1
Out of stock

24

WASHER

08211-20341

2

$3.05

In stock

25

GEAR, 2ND DRIVEN (NT:32) This part replaces 24321-49200.

24321-00A00

1
Out of stock

26

BUSH

09301-28001

1
Out of stock

27

CIRCLIP This part replaces 08331-11289.

08331-31289

1
Out of stock

28

GEAR 3RD DRIVEN This part replaces 24331-49200.

24331-49202

1
Out of stock

29

BUSH

24332-49000

1
Out of stock

30

WASHER, RH

09167-28001

1
Out of stock

31

CIRCLIP This part replaces 08331-11289.

08331-31289

1
Out of stock

32

WASHER, LH (T:1.5)

09167-28002

1
Out of stock

33

WASHER, LH (T:1.0)

09169-28001

1
Out of stock

34

GEAR, 4TH DRIVEN (NT:27) This part replaces 24341-49200.

24341-00A00

1
Out of stock

35

GEAR, 5TH DRIVEN (NT:25) This part replaces 24351-49200.

24351-00A00

1
Out of stock

36

BEARING, LH This part replaces 09262-20041.

09262-20044

1
Out of stock

37

C RING

09390-47003

1
Out of stock

38

BEARING, LH This part replaces 09262-25051.

09262-25105

1
Out of stock

39

C RING This part replaces 09390-62006.

09390-62012

1
Out of stock

40

OIL SEAL

09283-32012

1
Out of stock

41

C RING

09390-62008

1
Out of stock

42

PLATE

24761-45000

1
Out of stock

43

GASKET,DR SHFT This part replaces 24762-45000.

24762-45000-H17

1
Out of stock

44

SCREW This part replaces 02122-06168.

02122-06167

4
Out of stock

45

SPROCKET ASSY,E This part replaces 27510-49001.

27510-49012

1
Out of stock

46

SPACER

09180-25052

1
Out of stock

47

NUT

09159-20002

1
Out of stock

48

O RING

09280-25001

1
Out of stock

49

CHAIN, DRIVE

27600-49210

1
Out of stock
