1980 Suzuki GS1100-LT Clutch Diagram

← All diagrams

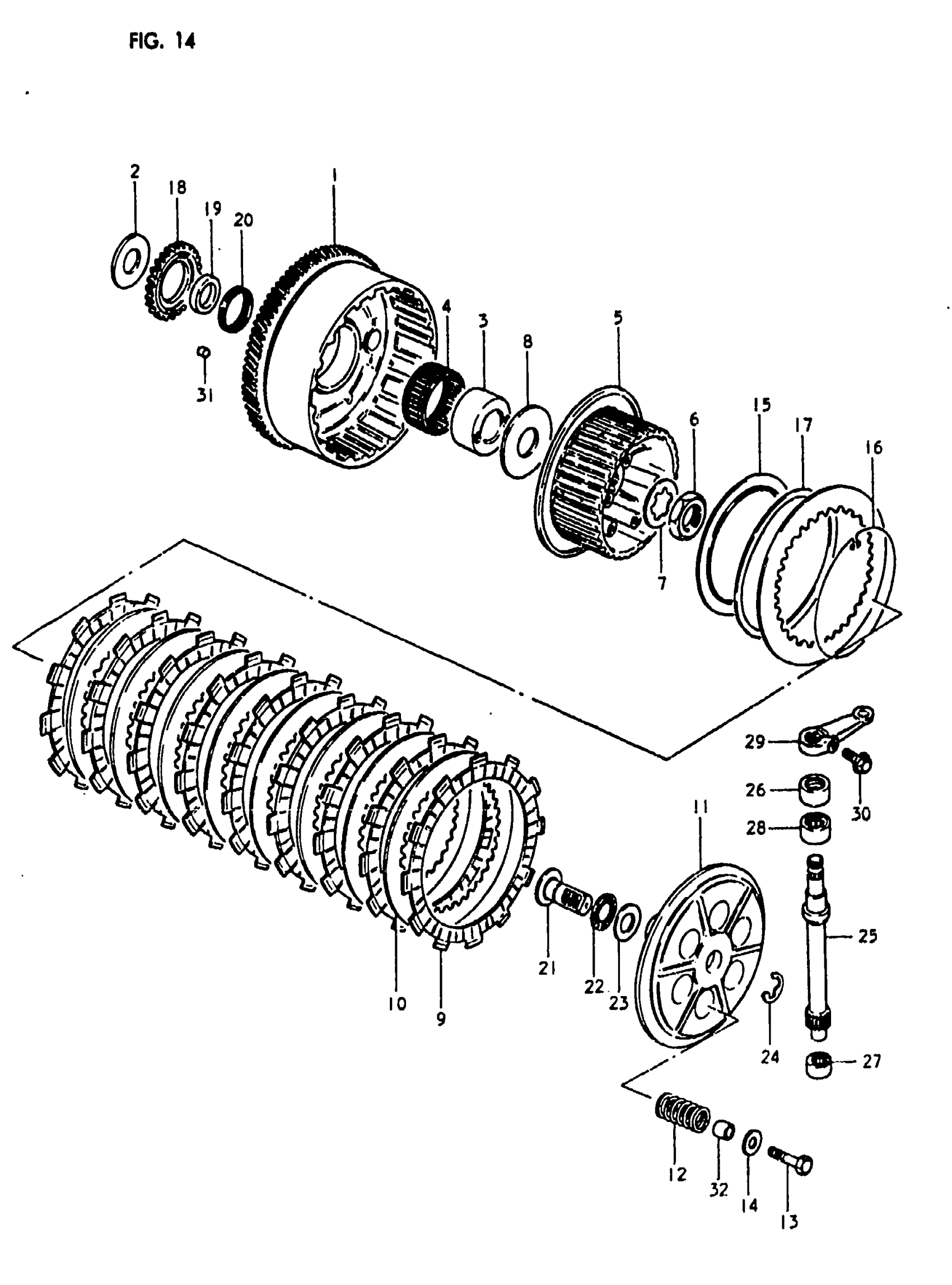

Find the part on the Clutch diagram for your 1980 Suzuki GS1100-LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Suzuki GS1100-LT Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR,PRIMARY DR This part replaces 21200-49201.

21200-49214

1
Out of stock

2

WASHER This part replaces 09160-25023.

09160-25055

1
Out of stock

3

SPACER

21251-49200

1
Out of stock

4

BEARING This part replaces 09263-51001.

09263-51002

1
Out of stock

5

HUB, SLEEVE This part replaces 21411-49201.

21410-00A00

1
Out of stock

6

NUT, PIVOT RH This part replaces 09140-24004.

09140-24007

1
Out of stock

7

WASHER

09167-25007

1
Out of stock

8

WASHER

09160-25022

1
Out of stock

9

PLATE, DRIVE (T:3) This part replaces 21441-49200.

21441-31D00

9
Out of stock

10

PLATE, DRIVEN

21451-49200

9
Out of stock

11

DISC, PRESSURE This part replaces 21462-49200.

21462-49201

1
Out of stock

12

SPRING

09440-19007

6
Out of stock

13

BOLT, REAR This part replaces 01107-06308.

01500-06307

6
Out of stock

14

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

6
Out of stock

15

SEAL, WAVE WASHER This part replaces 21471-49200.

21471-49100

1
Out of stock

16

RING, STOPPER

21481-45100

1
Out of stock

17

WAVE WASHER

09164-00003

1
Out of stock

18

GEAR, OIL PUMP DRIVE (NT:34) This part replaces 16321-49990.

16321-49000

1
Out of stock

19

SPACER

16325-45001

1
Out of stock

20

BEARING

09263-36002

1
Out of stock

21

RACK, RELEASE This part replaces 23165-49200.

23165-49201

1
Out of stock

22

BEARING

09263-15003

1
Out of stock

23

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

1
Out of stock

24

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

25

PINION, RELEASE

23261-45400

1
Out of stock

26

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

27

BEARING

09263-12014

1
Out of stock

28

BEARING

09263-15012

1
Out of stock

29

ARM, RELEASE This part replaces 23271-49001.

23271-45400

1
Out of stock

30

BOLT This part replaces 01527-06207.

01550-06207

1
Out of stock

31

CUSHION,PRIMARY This part replaces 21215-49000.

21215-49001

1
Out of stock

32

SPACER (6.2X12X14) This part replaces 09180-06088.

09180-06174

6
Out of stock
