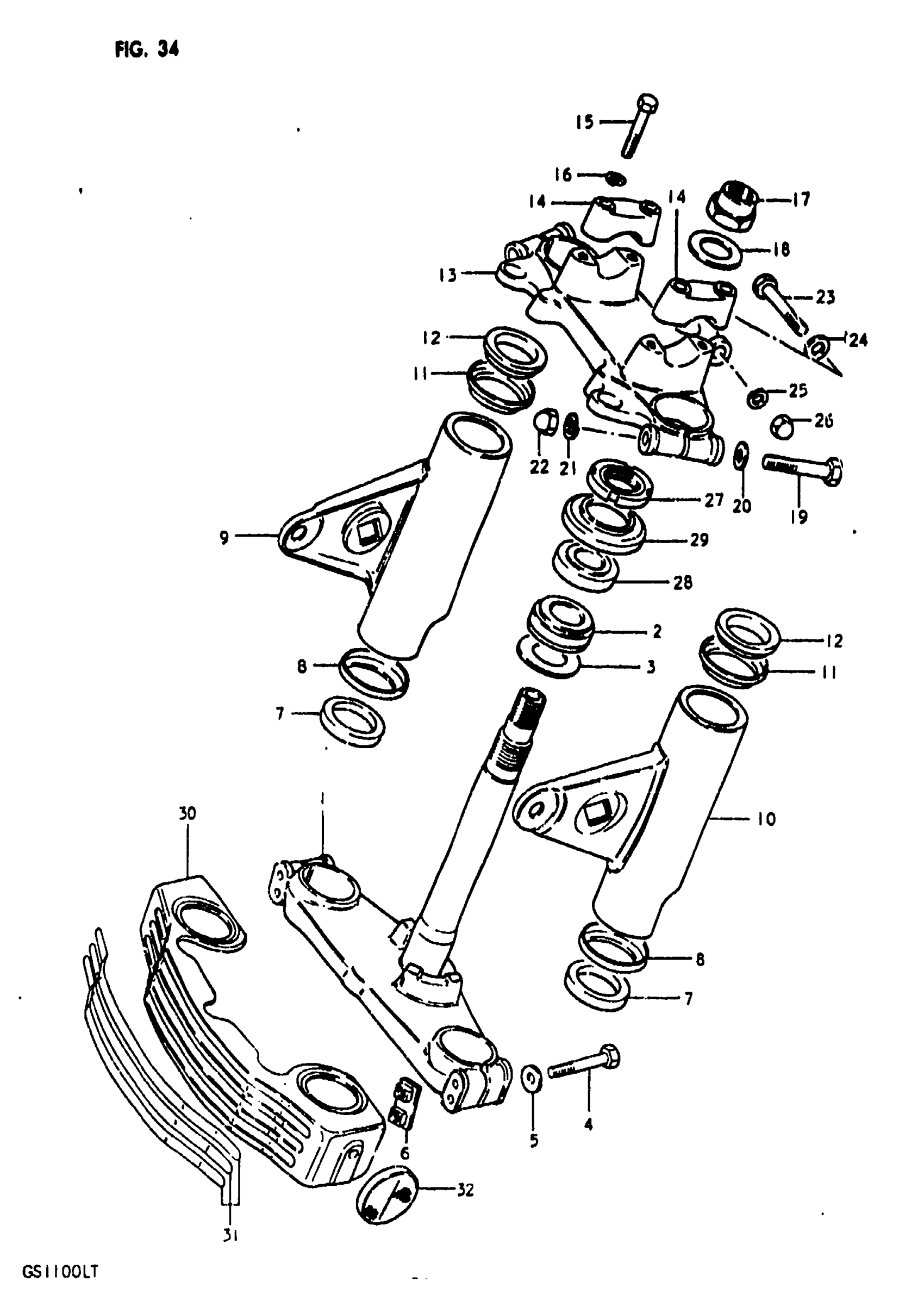

Suzuki GS1100-LT (1980) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM | Includes Item(s) 2 - 3

51410-49130-291

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

4

BOLT This part replaces 01107-08558.

01500-08557

$3.16

5

WASHER This part replaces 08322-21088.

08322-01087

$2.13

6

NUT

51458-49000

Unavailable

7

GASKET

51553-49101

Unavailable

8

GUIDE, LOWER

51551-49101

Unavailable

9

BRACKET, HEAD LAMP RH

51530-49101

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 51540-49101.

51540-49120

Unavailable

11

GUIDE, UPPER

51555-49100

Unavailable

12

GASKET

51556-49100

Unavailable

13

STEM HEAD, STEERING

51311-49100-291

Unavailable

14

CLAMP, HANDLE BAR UPPER

56211-29320-291

$15.51

15

BOLT

01204-08357

$2.09

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

NUT

51353-45000

$9.69

18

WASHER

51356-31700

Unavailable

19

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

20

WASHER This part replaces 08322-21108.

08322-01107

$2.15

21

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

22

NUT This part replaces 08313-11105.

08313-1010A

$2.35

23

BOLT This part replaces 01107-08508.

01500-08507

$3.05

24

WASHER This part replaces 08322-21088.

08322-01087

$2.13

25

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

26

NUT This part replaces 08313-11085.

08313-1008B

$2.80

27

NUT, STEERING STEM

51631-28000

$17.37

28

BEARING, UPPER

09265-25008

Unavailable

29

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$12.32

30

COVER, FRONT FORK This part replaces 51871-49100.

51871-49102

Unavailable

31

TAPE SET, FRONT FORK COVER

68200-49810

Unavailable

32

REFLEX REFLECTOR, FRONT

35950-49080

$17.24
