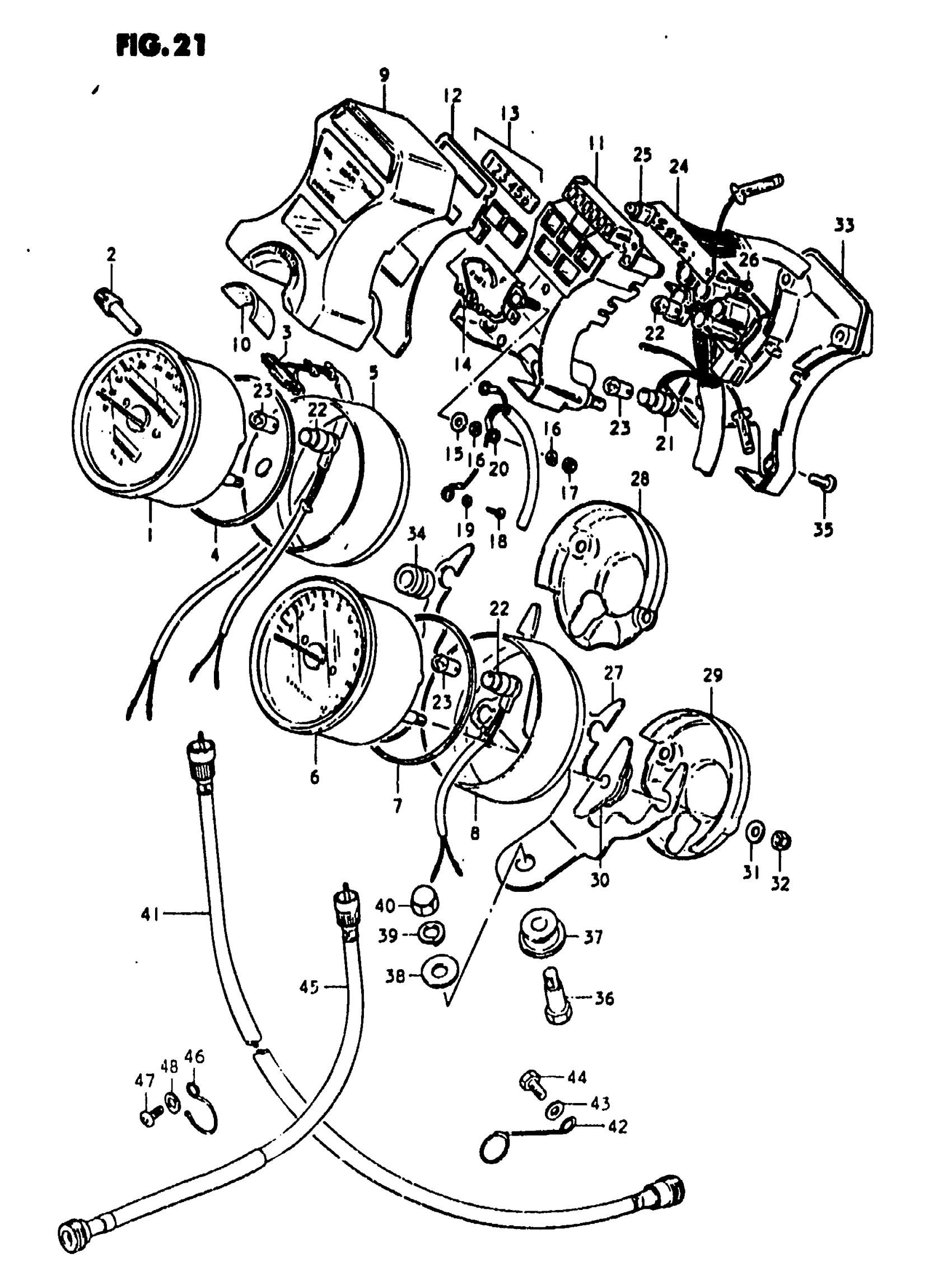

Suzuki GS1100-LT (1980) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER | MILE & KILO SCALE; Includes Item(s) 2 - 3

34110-45310

Unavailable

2

KNOB

34980-45020

$3.77

3

LEAD SWITCH

34860-45300

Unavailable

4

CUSHION

34189-45300

Unavailable

5

COVER, SPEEDOMETER

34151-45300

Unavailable

6

TACHOMETER This part replaces 34210-45310.

34210-45360

$408.50

7

CUSHION

34189-45300

Unavailable

8

COVER, TACHOMETER

34251-45300

Unavailable

9

CASE, PILOT BOX OUTER

36381-45300

Unavailable

10

SEAL

34993-47000

Unavailable

11

CASE, PILOT BOX INNER This part replaces 36382-45300.

36382-45301

Unavailable

12

PANEL, PILOT LENS

36386-45300

Unavailable

13

LENS SET This part replaces 36300-45810.

36300-45811

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 34320-45300.

34320-45450

Unavailable

15

WASHER This part replaces 08322-21048.

08322-01047

$1.86

16

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

17

NUT This part replaces 08310-32048.

08310-00047

$2.23

18

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

19

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

20

LEAD WIRE, FUELMETER This part replaces 34378-45300.

34378-45410

Unavailable

21

SOCKET, PILOT LAMP This part replaces 36325-45300.

36325-45302

Unavailable

22

SOCKET, METER This part replaces 34173-45300.

34173-45302

Unavailable

23

BULB (12V,3.4W)

09471-12001

$1.65

24

SOCKET, GEAR INDICATOR This part replaces 36453-45300.

36453-45301

Unavailable

25

BULB

09471-12071

$7.20

26

SCREW

36457-45100

Unavailable

27

BRACKET

34950-45300

Unavailable

28

ORNAMENT, SPEEDOMETER

34193-45300

Unavailable

29

ORNAMENT, TACHOMETER

34293-45300

Unavailable

30

CUSHION

34191-45300

Unavailable

31

WASHER This part replaces 08322-21058.

08322-01057

$2.13

32

NUT This part replaces 08313-11057.

08313-1005A

$1.93

33

COVER, PILOT BOX

36383-45300

Unavailable

34

CUSHION

36384-45300

Unavailable

35

SCREW

36387-45300

Unavailable

36

BOLT

09111-08031

Unavailable

37

CUSHION This part replaces 34956-31000.

34956-31001

$4.37

38

WASHER This part replaces 09160-08047.

09160-08130

$2.03

39

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

40

NUT This part replaces 08313-11088.

08313-10087

$2.28

41

CABLE,SPEEDOMET This part replaces 34910-45230.

34910-45231

Unavailable

42

CLAMP

34938-37000

$3.73

43

WASHER This part replaces 08322-21068.

08322-01067

$2.13

44

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

45

CABLE ASSY,TACH This part replaces 34940-47030.

34940-47034

$23.49

46

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

Unavailable

47

SCREW This part replaces 02112-06128.

02112-06127

$1.84

48

WASHER This part replaces 08322-21068.

08322-01067

$2.13
