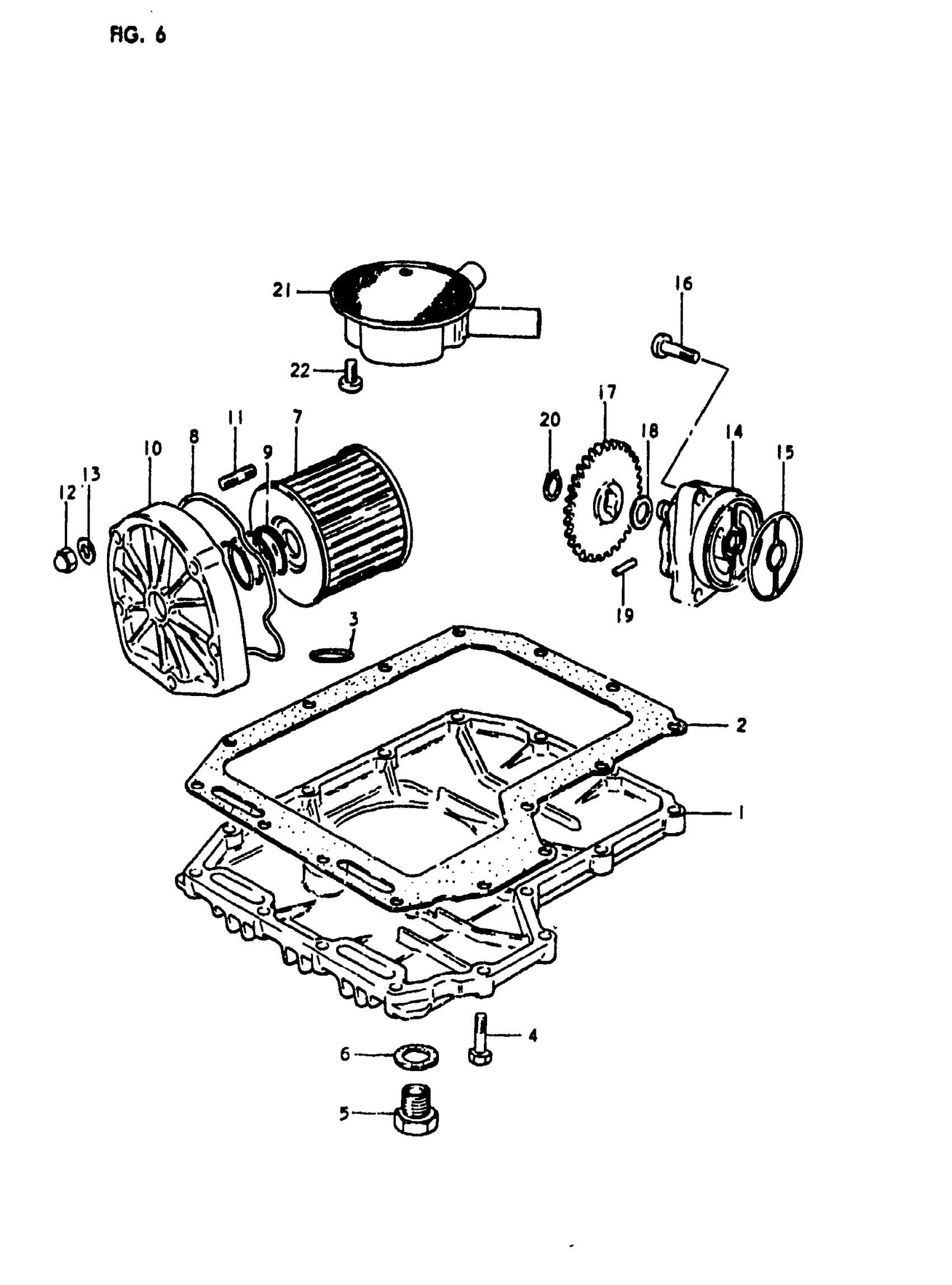

Suzuki GS1100-LT (1980) OIL PUMP - OIL FILTER Diagram

#

Description
Price

1

PAN OIL This part replaces 11511-49200.

11511-49201

Unavailable

2

GASKET,OIL PAN( This part replaces 11489-49200.

11489-49201-H17

$11.71

3

O RING

09280-13001

$2.72

4

BOLT This part replaces 01517-06258.

01550-06257

$2.30

5

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

6

GASKET

09168-14004

$1.83

7

FILTER, ENGINE OIL

16510-45040

$5.96

8

O RING

16518-49200

$6.26

9

SPRING

09440-32004

$2.92

10

CAP

16531-49210

Unavailable

11

STUD BOLT (L:25) This part replaces 01421-06258.

01421-06257

$2.85

12

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

$1.84

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

PUMP, ENGINE OIL This part replaces 16400-49210.

16400-49220

Unavailable

15

O RING This part replaces 16491-49200.

16491-31300

$13.90

16

SCREW This part replaces 02112-06258.

02112-06257

$1.78

17

GEAR, DRIVEN (NT:33) This part replaces 16331-49990.

16331-49000

Unavailable

18

WASHER

08221-10185

$2.15

19

PIN

09261-04009

$1.56

20

CIRCLIP

08331-31109

$1.78

21

STRAINER, ENGINE OIL

16520-49200

Unavailable

22

SCREW This part replaces 02112-06128.

02112-06127

$1.84
