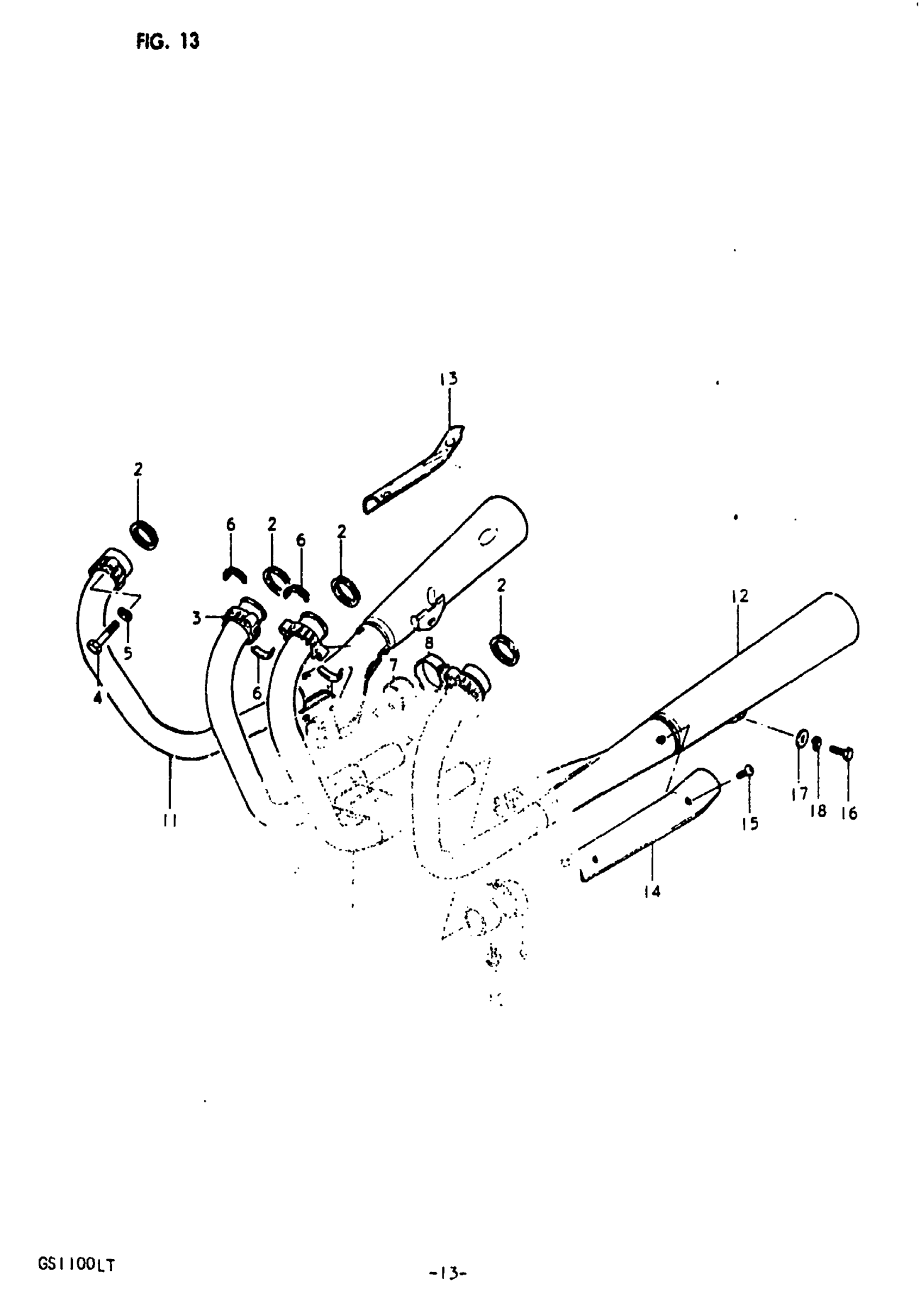

Suzuki GS1100-LT (1980) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST CENTER

14100-49200

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-11010.

14181-01D00

$7.11

3

CLAMP

14182-49000

Unavailable

4

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

PLATE, EXHAUST PIPE

14155-49000

$5.02

7

CONNECTOR,MUFFL This part replaces 14771-49001.

14771-49010

$27.48

8

CLAMP, CONNECTOR RH

14459-49000

Unavailable

9

CLAMP, CONNECTOR LH

14469-49000

Unavailable

10

BOLT This part replaces 01517-08258.

01550-08257

$2.81

11

NO DESCRIPTION AVAILABLE This part replaces 14310-49120.

14305-49120-H01

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 14340-49120.

14306-49120-H01

Unavailable

13

COVER, MUFFLER RH

14781-49100

Unavailable

14

COVER, MUFFLER LH

14791-49100

Unavailable

15

SCREW This part replaces 02112-05068.

09125-05122

$2.06

16

BOLT This part replaces 01107-10308.

01500-1030A

$3.16

17

WASHER This part replaces 08322-21108.

08322-01107

$2.15

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
