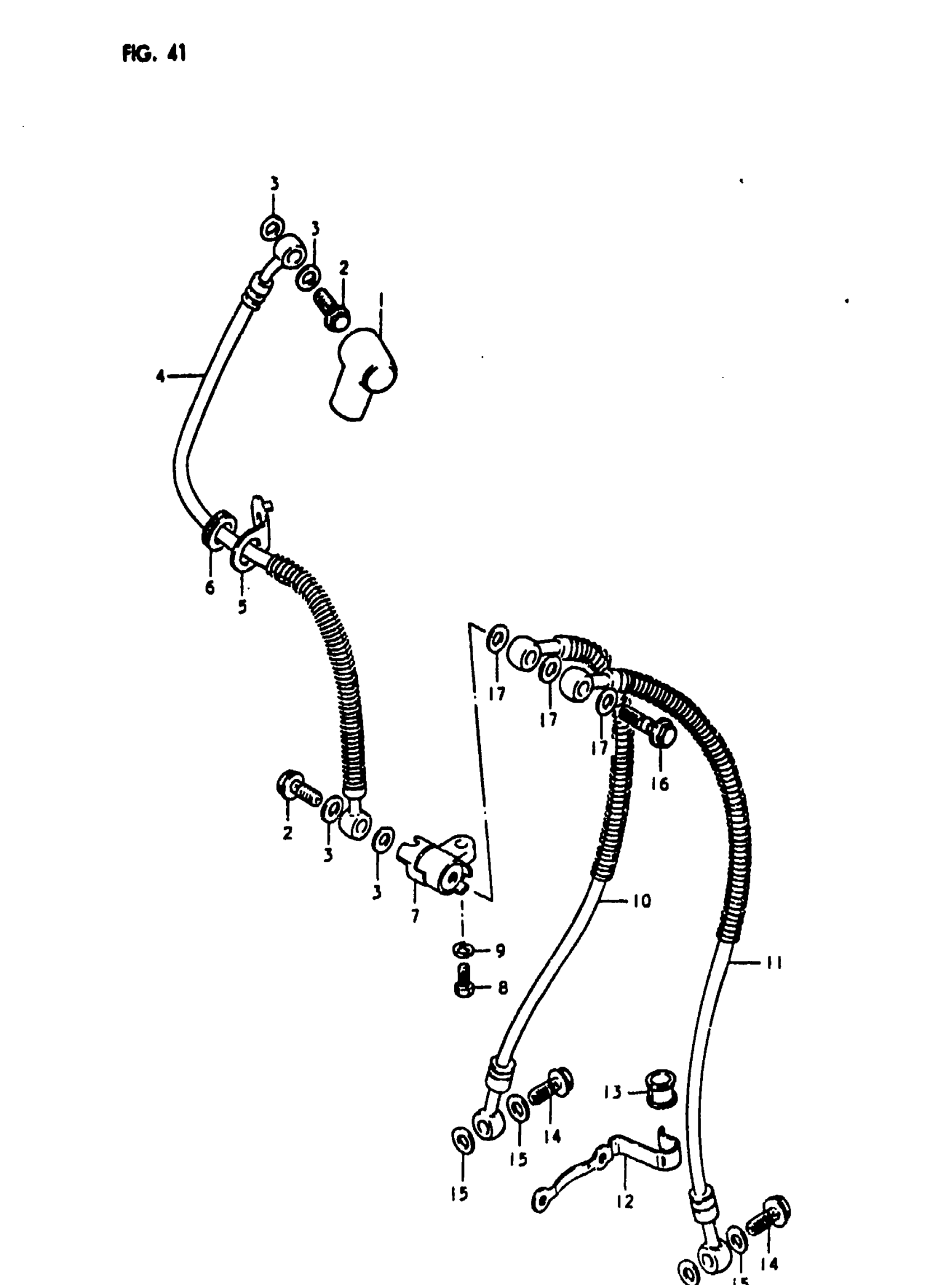

Suzuki GS1100-LT (1980) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER This part replaces 59711-18400.

59711-49001

$7.51

2

UNION This part replaces 09360-10007.

09360-10017

$3.42

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

4

HOSE, BRAKE NO. 1

59480-47052

Unavailable

5

GUIDE This part replaces 59243-45000.

59243-45010

Unavailable

6

GROMMET This part replaces 09308-14007.

09308-14009

Unavailable

7

JOINT, BRAKE HOSE This part replaces 59491-45000.

59491-45001

Unavailable

8

BOLT This part replaces 01107-06208.

01500-06207

$2.28

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

HOSE, BRAKE NO. 2 RH

59240-47051

Unavailable

11

HOSE, BRAKE NO.2 LH

59240-47051

Unavailable

12

CLAMP

59268-49001

Unavailable

13

BUSHING

59244-49000

Unavailable

14

UNION This part replaces 09360-10007.

09360-10017

$3.42

15

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

16

UNION BOLT This part replaces 09360-10008.

09360-10018

$6.80

17

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84
