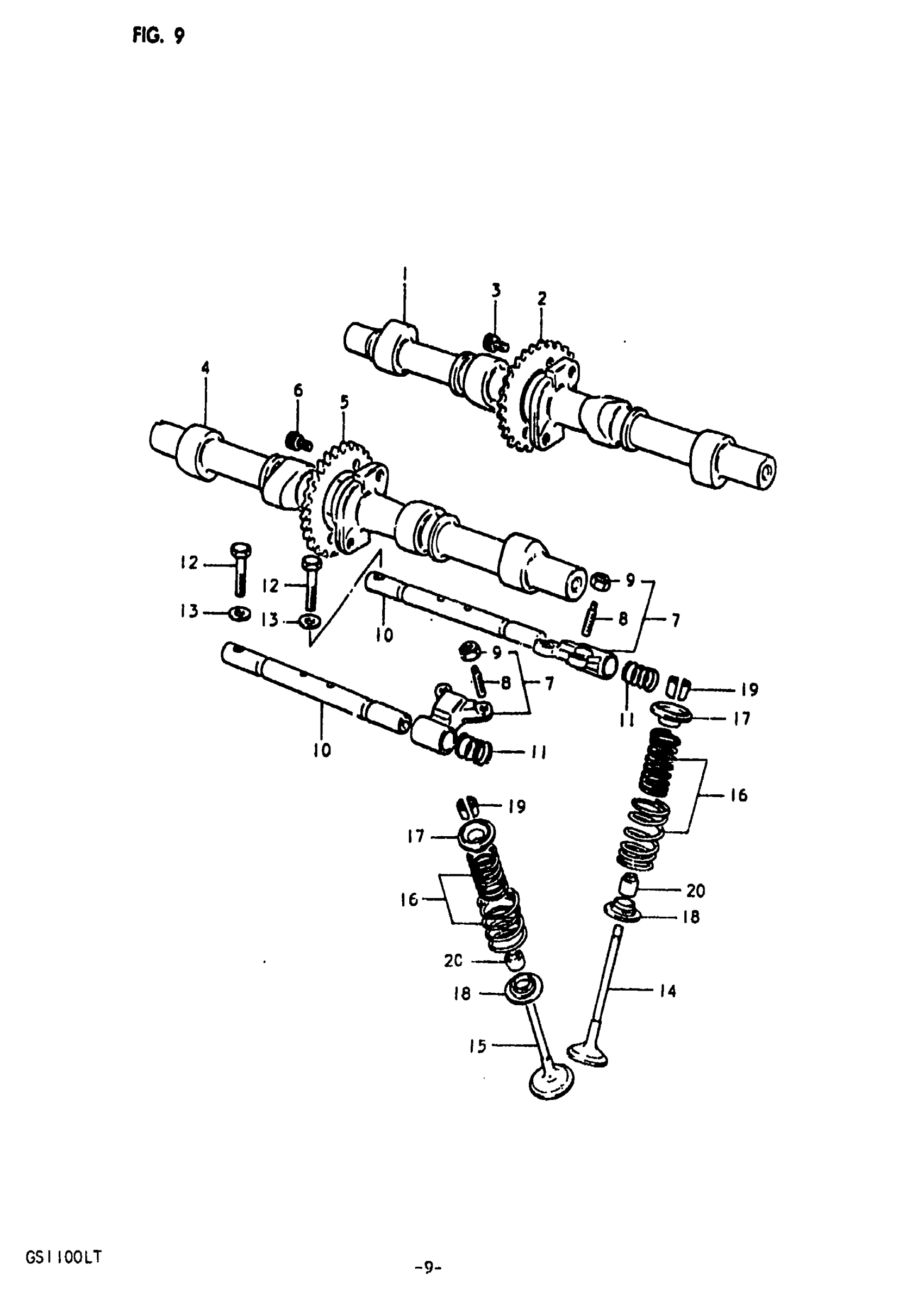

Suzuki GS1100-LT (1980) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE This part replaces 12711-49200.

12700-49810

Unavailable

2

SPROCKET, INTAKE CAM SHAFT (NT

12741-45110

Unavailable

3

BOLT, NO.3 This part replaces 09106-06024.

07130-0610B

$3.21

4

CAM SHAFT, EXHAUST This part replaces 12721-45400.

12700-45820

Unavailable

5

SPROCKET, EXHAUST CAM SHAFT (N

12751-47001

Unavailable

6

BOLT, NO.3 This part replaces 09106-06024.

07130-0610B

$3.21

7

ARM, VALVE ROCKER | Includes Item(s) 8 - 9 This part replaces 12840-49200.

12840-49201

$81.62

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49200.

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING This part replaces 12843-49200.

12843-27A00

$2.94

10

SHAFT, VALVE ROCKER ARM This part replaces 12860-49200.

12860-31300

Unavailable

11

SPRING

09440-13014

$2.45

12

BOLT, REAR This part replaces 09100-06093.

01500-06307

$2.48

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

VALVE, INTAKE

12911-49220

$37.40

15

VALVE, EXHAUST

12912-49220

$64.30

16

SPRING SET, VALVE This part replaces 12900-49810.

12920-49210

Unavailable

17

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

18

SEAT, VALVE SPRING This part replaces 12933-49200.

12933-49201

$5.84

19

COTTER, VALVE

12932-49200

$2.28

20

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70
