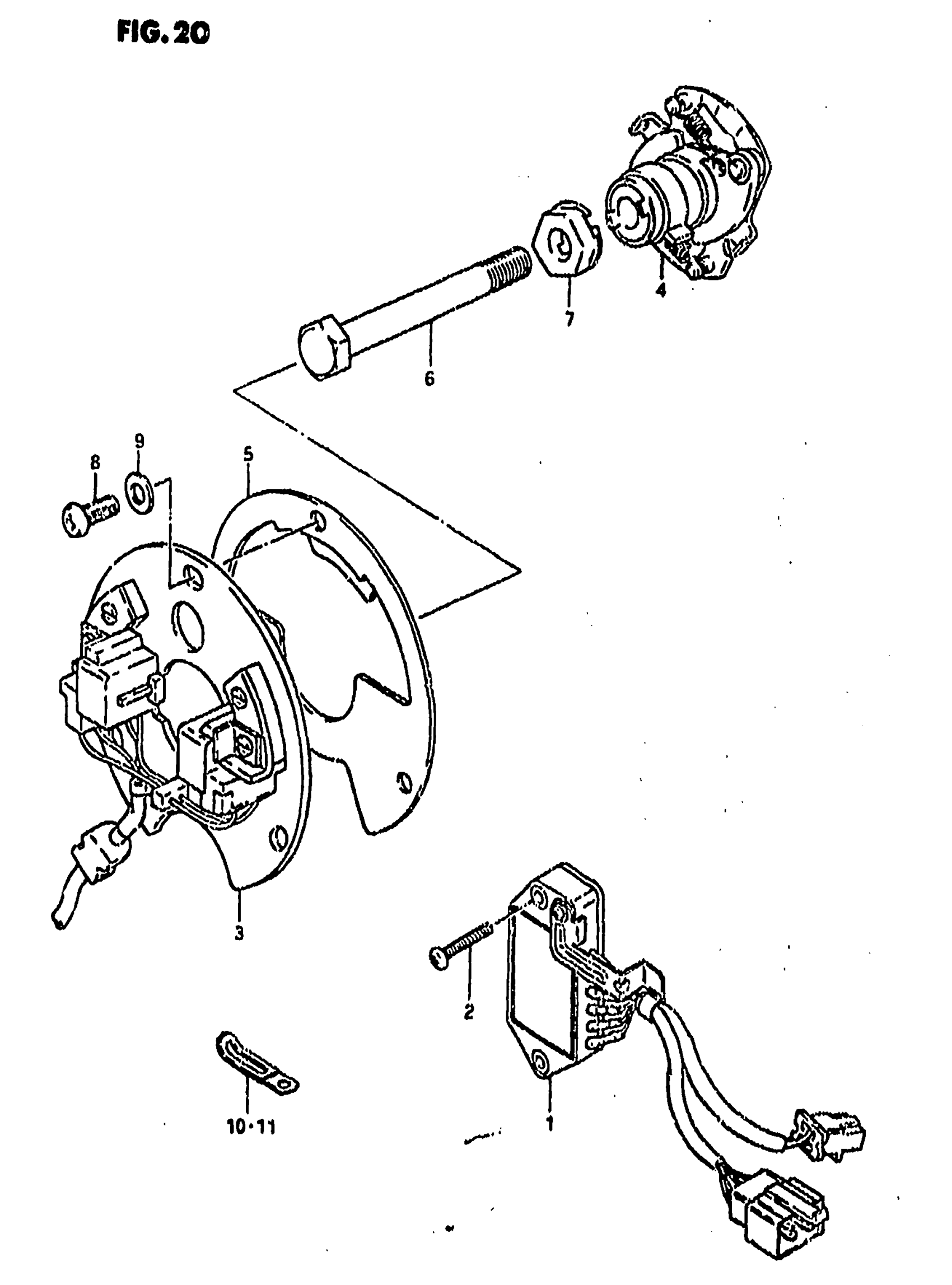

Suzuki GS1000S (1982) SIGNAL GENERATOR Diagram

#

Description

Price

1

UNIT, IGNITER This part replaces 32900-45411.

32900-45120

Unavailable

2

SCREW This part replaces 02112-06208.

02112-06207

$1.78

3

GENERATOR ASSY This part replaces 33110-45110.

33110-45410

Unavailable

4

GOVERNOR ASSY This part replaces 33120-49210.

33120-49211

Unavailable

5

PLATE, TIMING

33371-45100

Unavailable

6

BOLT This part replaces 01107-08658.

01500-0865B

$3.49

7

WASHER

33465-47000

Unavailable

8

SCREW

09125-05024

$1.72

9

WASHER This part replaces 09160-05027.

08322-01057

$2.13

10

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

11

CLAMP This part replaces 09404-08401.

09404-08420

$3.16
