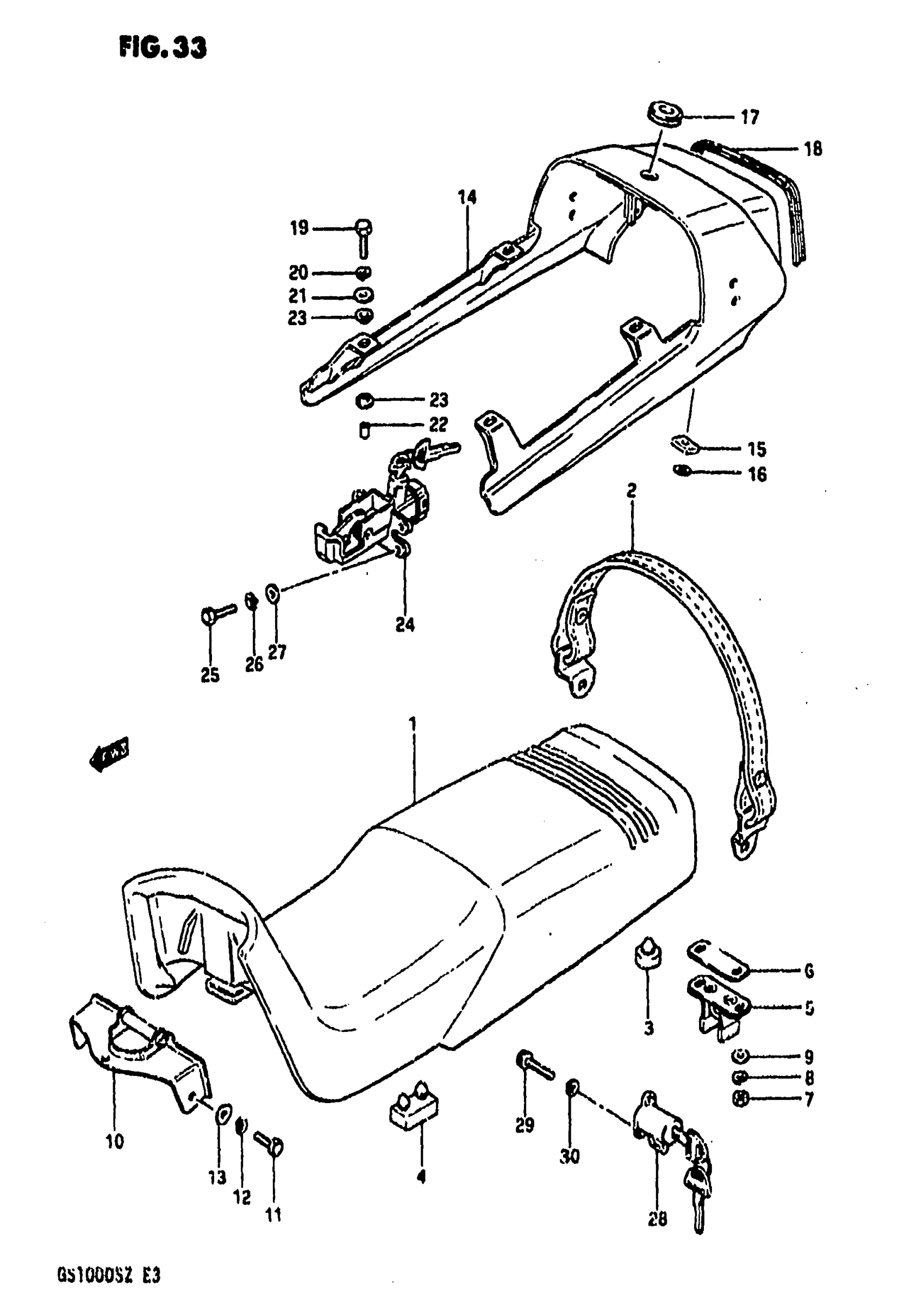

Suzuki GS1000S (1982) SEAT Diagram

#

Description
Price

1

SEAT ASSY This part replaces 45100-49305-80Z.

45100-49307-M21

Unavailable

2

BAND, SEAT GRIP This part replaces 45180-49305.

45180-49316-6RL

Unavailable

3

CUSHION

09321-08009

$3.05

4

CUSHION

09329-10001

$2.12

5

STRIKER, SEAT LOCK

45210-44101

Unavailable

6

SHIM

45217-44100

Unavailable

7

.NUT This part replaces 08310-22068.

08310-00067

$2.13

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

PLATE, FRONT

45210-49301

Unavailable

11

BOLT This part replaces 01107-06128.

01500-06127

$1.97

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

NO DESCRIPTION AVAILABLE | Includes Item(s) 15 - 16 This part replaces 45503-49820-13Y.

45503-49820

Unavailable

15

WASHER

45528-34200

Unavailable

16

NUT

09148-03002

$2.15

17

GROMHET

45522-49200

$4.58

18

MOLE,SEAT TAIL This part replaces 45562-49310.

45562-49302

$7.27

19

BOLT This part replaces 01107-06258.

01500-06257

$1.97

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

22

SPACER This part replaces 09180-07013.

09180-06290

$2.35

23

CUSHION

09320-10003

$2.38

24

LOCK ASSY,SEAT This part replaces 95700-49300-KEY.

95700-49860

Unavailable

25

BOLT, RUBBER STOP This part replaces 01104-05128.

01500-05127

$2.10

26

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

27

WASHER This part replaces 08322-21058.

08322-01057

$2.13

28

LOCK SET, HELME This part replaces 95700-35821.

95700-49850

Unavailable

29

BOLT This part replaces 09106-06005.

07130-06307

$4.32

30

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
