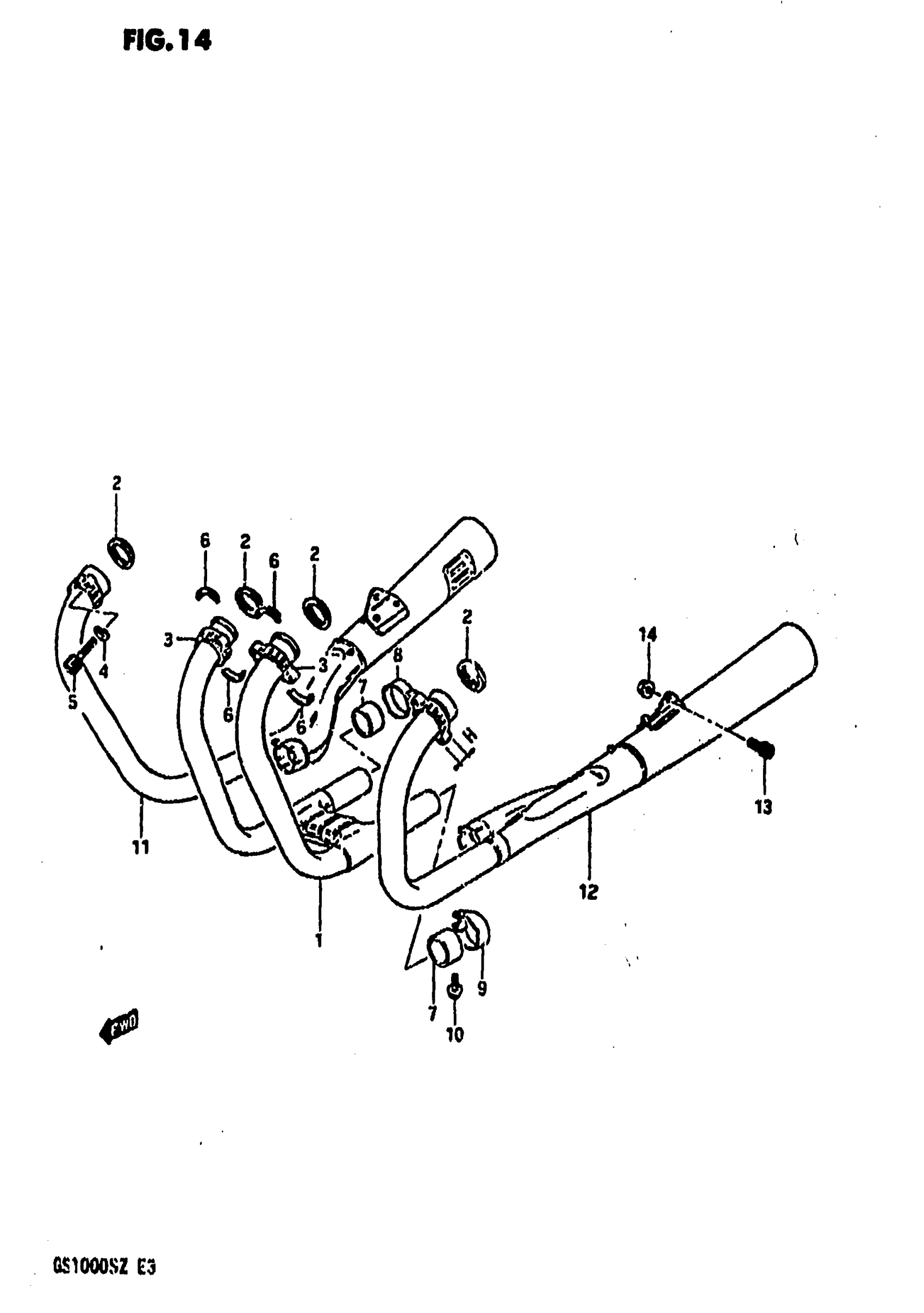

Suzuki GS1000S (1982) MUFFLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 14100-49300.

14100-49303-H01

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-11020.

14181-01D00

$7.11

3

CLAMP, EXHAUST PIPE FRONT This part replaces 14182-49010.

14182-49011

Unavailable

3

CLAMP (H:21)

14182-49011

Unavailable

4

BOLT, MUFFLER SUPPORT This part replaces 09106-08018.

07130-0845B

$3.99

4

BOLT This part replaces 09106-08021.

07130-08407

$3.14

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

PLATE, EXHAUST PIPE

14155-49000

$5.02

7

CONNECTOR,MUFFL This part replaces 14771-49001.

14771-49010

$27.48

8

CLAMP, CONNECTOR RH

14459-45420

Unavailable

9

CLAMP, CONNECTOR LH

14469-45420

Unavailable

10

BOLT This part replaces 01517-08258.

01550-08257

$2.81

11

NO DESCRIPTION AVAILABLE This part replaces 14301-49300.

14305-49300-H01

Unavailable

11

MUFFLER, RH (H:21)

14305-49301

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 14302-49300.

14306-49300-H01

Unavailable

12

MUFFLER, LH (H:21)

14306-49301

Unavailable

13

BOLT This part replaces 09106-10003.

07130-10257

$4.60

14

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39
