1982 Suzuki GS1000S Haster Cylinder Diagram

← All diagrams

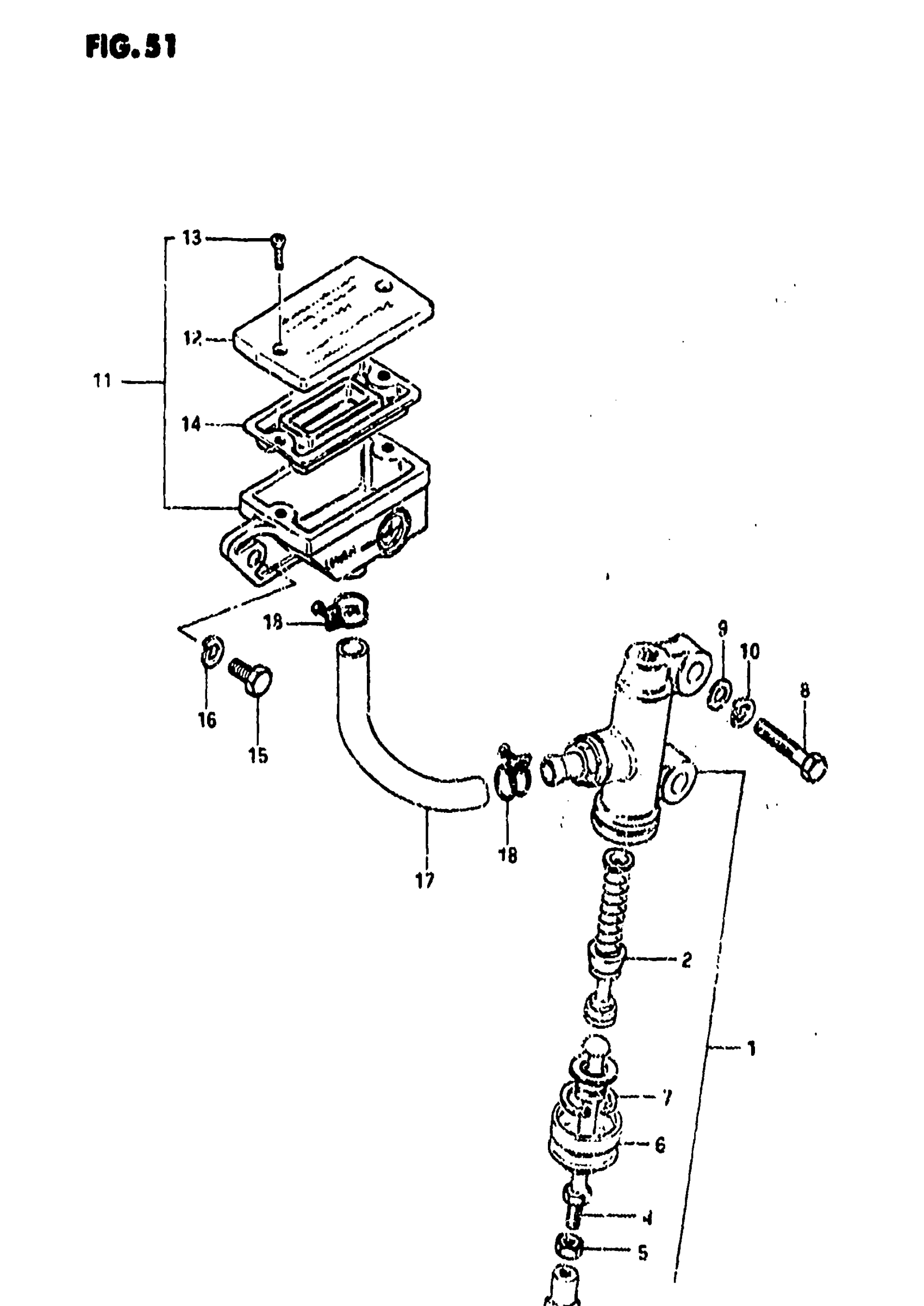

Find the part on the Haster Cylinder diagram for your 1982 Suzuki GS1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Suzuki GS1000S Haster Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY,R | Includes Item(s) 2 - 7 This part replaces 69600-47010.

69600-47011

1
Out of stock

2

PISTON & CUP SET

69600-45820

1

$47.00

In stock

3

YOKE

69692-47010

1
Out of stock

4

ROD, PUSH

69670-45010

1
Out of stock

5

1

$2.16

In stock

6

BOOT

69691-45001

1

$5.85

In stock

7

CIRCLIP

51162-70040

1
Out of stock

8

2

$2.94

In stock

9

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

10

2

$2.28

In stock

11

RESERVOIR TANK ASSY | Includes Item(s) 12 - 14

69740-49330

1
Out of stock

12

1

$33.38

In stock

13

SCREW

69689-49300

2
Out of stock

14

DIAPHRAGM This part replaces 69667-49300.

59667-49460

1
Out of stock

15

1

$2.10

In stock

16

1

$2.28

In stock

17

HOSE

69731-49300

1
Out of stock

18

CLAMP This part replaces 09400-16302.

09400-16304

2
Out of stock
